db drive NEO-M2 : Marine NEO 2-Channel Class D Mini Amplifier
$229.99
In Stock
Sold out
CODE:
Categories: 2-Channel Amps, Best Sellers!, Car Audio
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
- Description
- Shipping and Refund

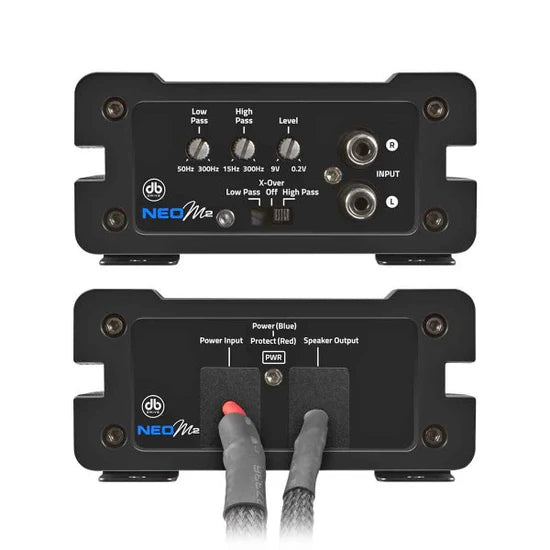

NEO-M2 : Marine NEO 2-Channel Class D Mini Amplifier
Product details
Introducing the NEO-M2 Marine NEO Mini 2 Channel Amplifier by DB Drive. This compact and powerful amplifier is designed to elevate your audio experience to new heights. With its 2-channel Class D internal circuitry, this amplifier delivers an impressive rated power of 2x250 Watts at 2Ω and 2x125 Watts at 4Ω. The NEO-M2 is built to withstand the toughest conditions, featuring a marine-grade conformal coated double-sided PCB, ensuring durability and longevity. Its variable 12dB high-pass or low-pass crossover filter allows for precise customization of your sound. With audiophile-grade nickel-plated RCA connectors, this amplifier guarantees optimal signal transfer for exceptional sound quality. Upgrade your marine audio system with the powerful and reliable NEO-M2 Marine NEO Mini 2 Channel Amplifier.
Features
- 2 Channel Class D Full Range Technology
- 2Ω Stereo load Capability
- Audiophile Grade Nickel Plated RCA connectors
- Variable 12db High-Pass or Low-pass crossover filters
- Bridgable outputs @ 4Ω load
- Marine Grade Conformal Coated Double Sided PCB
- Compatible with any 4/2Ω Loudspeaker
Specifications
| Rated Power @14.4 Volts | |
|---|---|
| 2 x 125 Watts @ 4Ω | |
| 1 x 500 Watts @ 4Ω Bridged | |
| 2 x 250 Watts @ 2Ω | |
| PARAMETERS | |
| THD (100Hz @1Ω) | 0.04% |
| Bandwidth (-3 dB) | 18Hz ~ 22KHz |
| Damping Factor (1KHz @ 4Ω) | 100 |
| S/N Ratio (as weighted @ 1 Volt) | 99db |
| Input Sensitivity | 0.20V ~ 6.0V RMS |
| Minimum Load Impedance | 2Ω |
| Low Pass Filter Range | 50Hz ~ 300Khz |
| Sub-Sonic Filter Range | 15Hz ~ 300Hz |
