Elite Audio EA400.4 4-Channel Amplifier
Product details
|
Features |
|
2 Ohm Stability per channel on 4-Channel Models |
|
1 Ohm Stability on Monoblock Models |
|
High Speed MOSFET Power Supplies |
|
Variable Crossovers |
|
Remote Bass Knob for Monoblock Models |
|
On-Board Clipping Indication |
|
4-Way Protection Circuitry |
|
High Purity Copper Printed Boards |
|
4 Gauge Power & Ground Terminals |
Specifications Monoblock
| EA1000M | EA2000M | EA3000M | EA4000M | |
| Power @ 4 Ohm | 200x1 | 500x1 | 650x1 | 1000x1 |
| Power @ 2 Ohm | 400x1 | 800x1 | 1100x1 | 1500x1 |
| Power @ 1 Ohm | 500x1 | 1000x1 | 1500x1 | 2000x1 |
| Frequency Response | 10-252HZ | 10-252HZ | 10-245HZ | 10-240HZ |
| Signal to Noise Ratio | 96db | 96db | 96db | 90db |
| Damping Factor | 160< | 160< | 160< | 150< |
| Input Sensitivity | 6V-.2V | 6V-.2V | 6V-.2V | 6V-.2V |
| Low Pass Filter | 35-250Hz | 35-250Hz | 35-250Hz | 35-250Hz |
| Subsonic Filter | 10-50Hz | 10-50Hz | 10-50Hz | 10-50Hz |
| Remote Gain Control | Yes | Yes | Yes | Yes |
| Power & Ground Terminals | 4 Gauge | 4 Gauge | 4 Gauge | 4 Gauge |
| Operating Voltage Range | 9V-16V | 9V-16V | 9V-16V | 9V-16V |
| External Fuse Needed | 50A | 100A | 150A | 200A |
| Dimensions (mm) (LxWxH) | 160x120x50 | 210x120x50 | 240x120x50 | 330x120x50 |
Specifications Multi-Channel
| EA400X4 | EA600X4 | |
| Power @ 4 Ohm | 50W x 4 | 90W x 4 |
| Power @ 2 Ohm | 75W x 4 | 135W x 4 |
| Power @ 4 Ohm Bridged | 160W x 2 | 270W x 2 |
| Frequency Response | 10HZ - 30Khz | 10Hz - 33Khz |
| Signal to Noise Ratio | 105db | 105db |
| Damping Factor | 100< | 100< |
| Input Sensitivity | 6V-.2V | 6V-.2V |

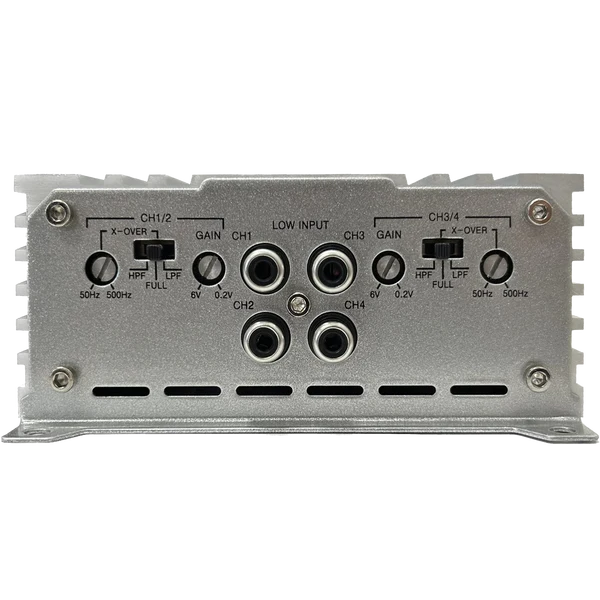

| CH1/2 Crossover | 50-500Hz | 50-500Hz |
| Crossover Selector CH1/2 | HP/FULL/LP | HP/FULL/LP |
| CH3/4 Crossover | 50-500Hz | 50-500Hz |
| Crossover Selector CH3/4 | HP/FULL/LP | HP/FULL/LP |
| Power & Ground Terminals | 4 Gauge | 4 Gauge |
| Operating Voltage Range | 9V-16V | 9V-16V |
| External Fuse Needed | 30A | 40A |
| Dimensions (mm) (LxWxH) | 160x120x50 | 180x120x50 |
