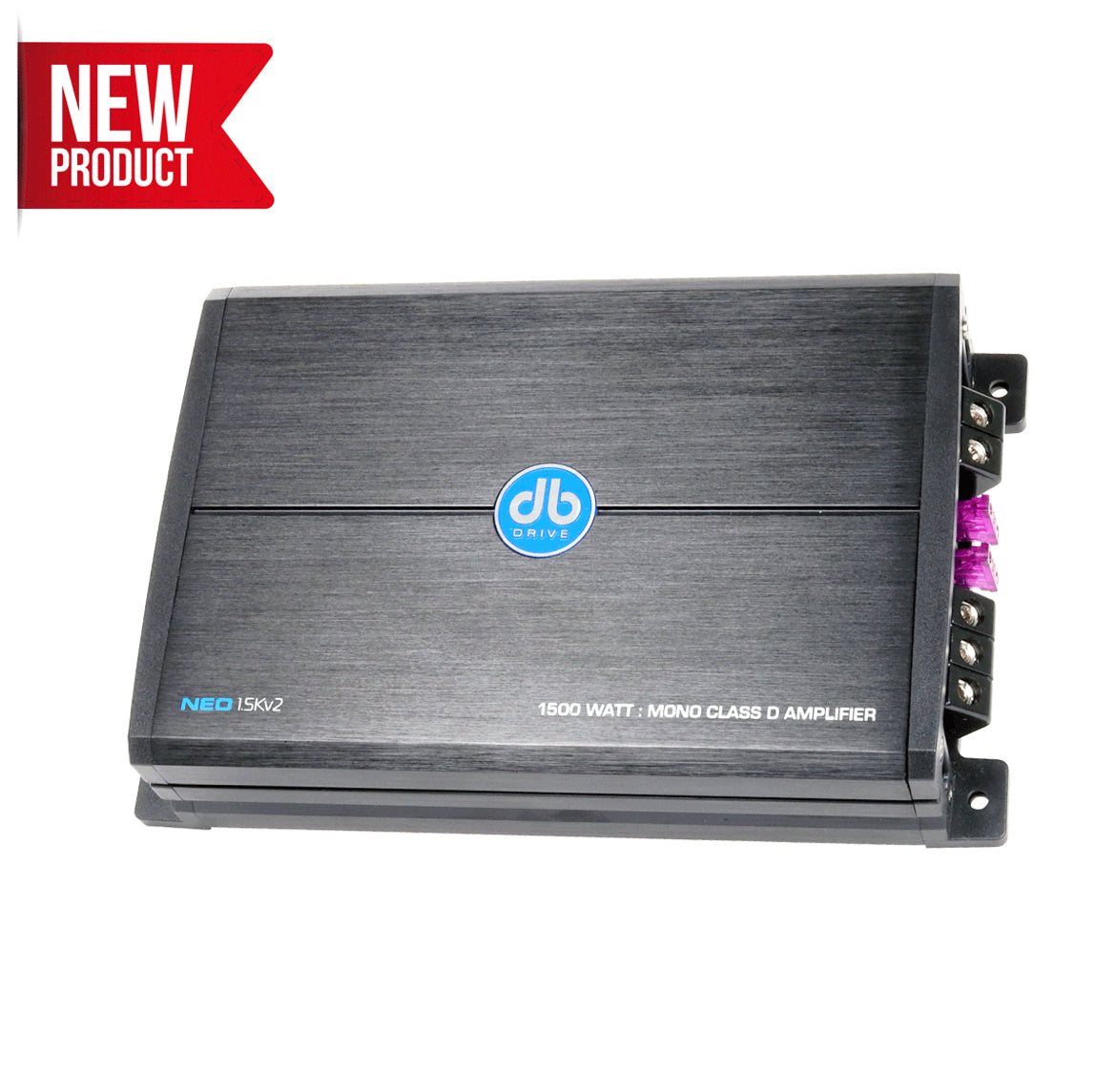

db drive NEO1.5v2 - Marine Class D Mono Amplifier

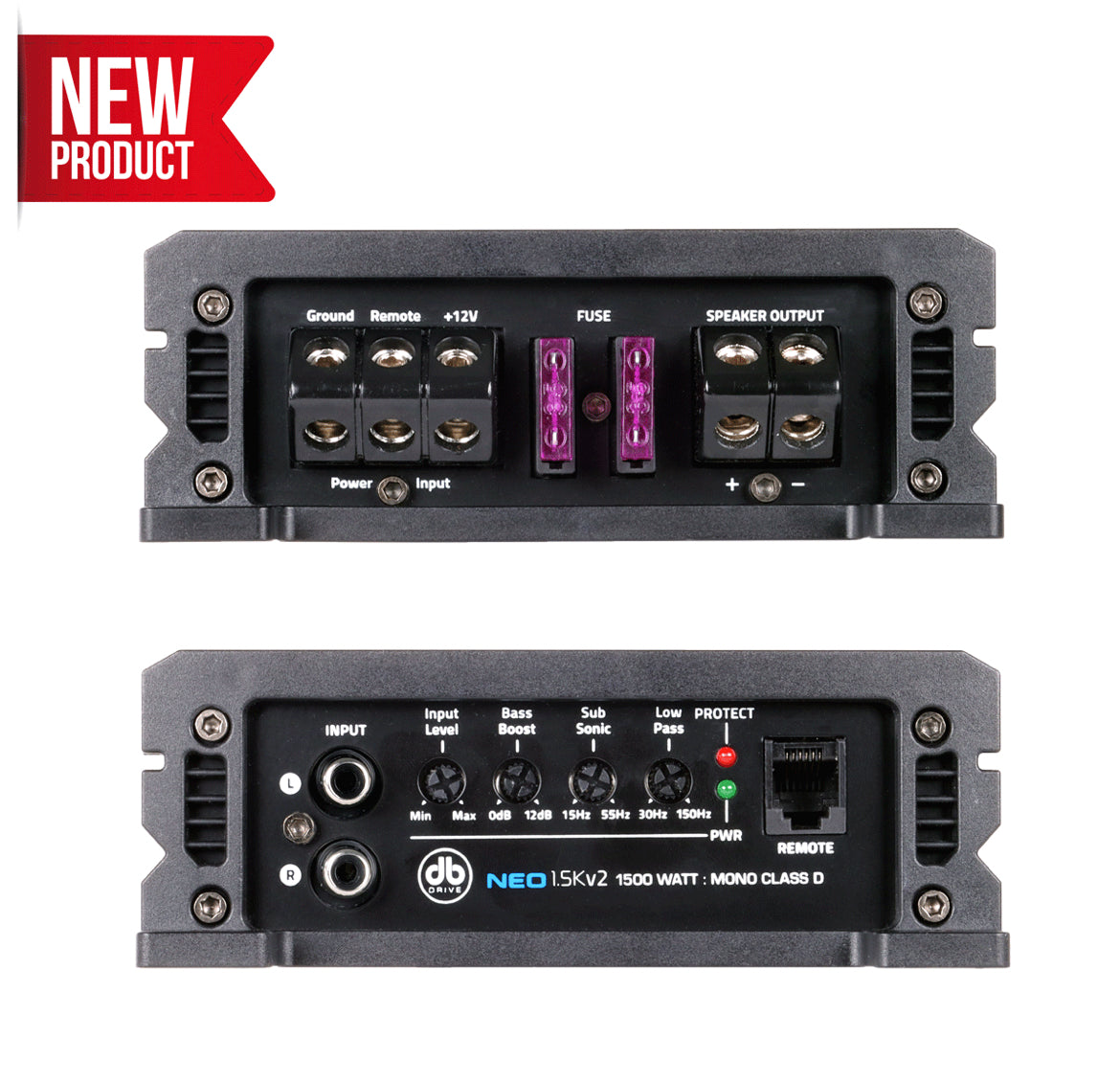

The NEO Amplifiers include a built-in variable crossovers. The crossover features a variable frequency selection for precise low pass filtering for the NEO1.5Kv2. The NEO4v2 and NEO5v2 also feature the same frequency selection with the option or high pass or low pass filtering. For added low frequency performance the amplifiers are equipped with a selectable 6dB-12dB Bass Boost @ 45Hz.

  • Mono Class D Technology
  • 1Ω Mono load Capability
  • Amphibnious grade conformal coating on PCB
  • Audiophile Grade RCA connectors
  • Variable Low-pass crossover filter
  • Variable Sub-sonic Filter
  • Remote Dash Bass Control Included
  • Double Sided Circuit tablet
  • Compatible with any 1Ω Subwoofer load
Length (A) 7.6″ / (195mm)
Width (B) 5.3″ / (135mm)
Height (C) 1.88″ / (48mm)





GENERAL SPECIFICATIONS
Rated Power @ 14.4 Volts
Dynamic Power Handling 1 x 750 Watts @ 1Ω
1 x 350 Watts @ 2Ω



PARAMETERS
THD (100Hz @ 1Ω) 0.04%
Bandwidth (-3 dB) 18Hz ~ 22KHz
Damping Factor (1KHz @ 4Ω) 126
S/N ratio (as weighted @ 1 Volt) 99db
Input Sensitivity 0.20V ~ 9.0V RMS
Minimum Load Impedance
Input Pre in RCA
Mono Low Pass filter slope 12dB
Low Pass filter range 30Hz ~ 150Hz
Sub ? Sonic Filter slope 12dB
Sub ? Sonic Filter Range 15Hz ~ 55Hz
