Clarion Marine XC2510 5 Ch. Class D Marine System Amplifier 600W

Product details



Compact 5-Channel System Amplifier Rated Power (1% THD+N, 14.4V):
Main Channels: 50W x 4 @ 4 ohms / 75W x 4 @ 2 ohms Subwoofer Channel: 200W x 1 @ 4 ohms /

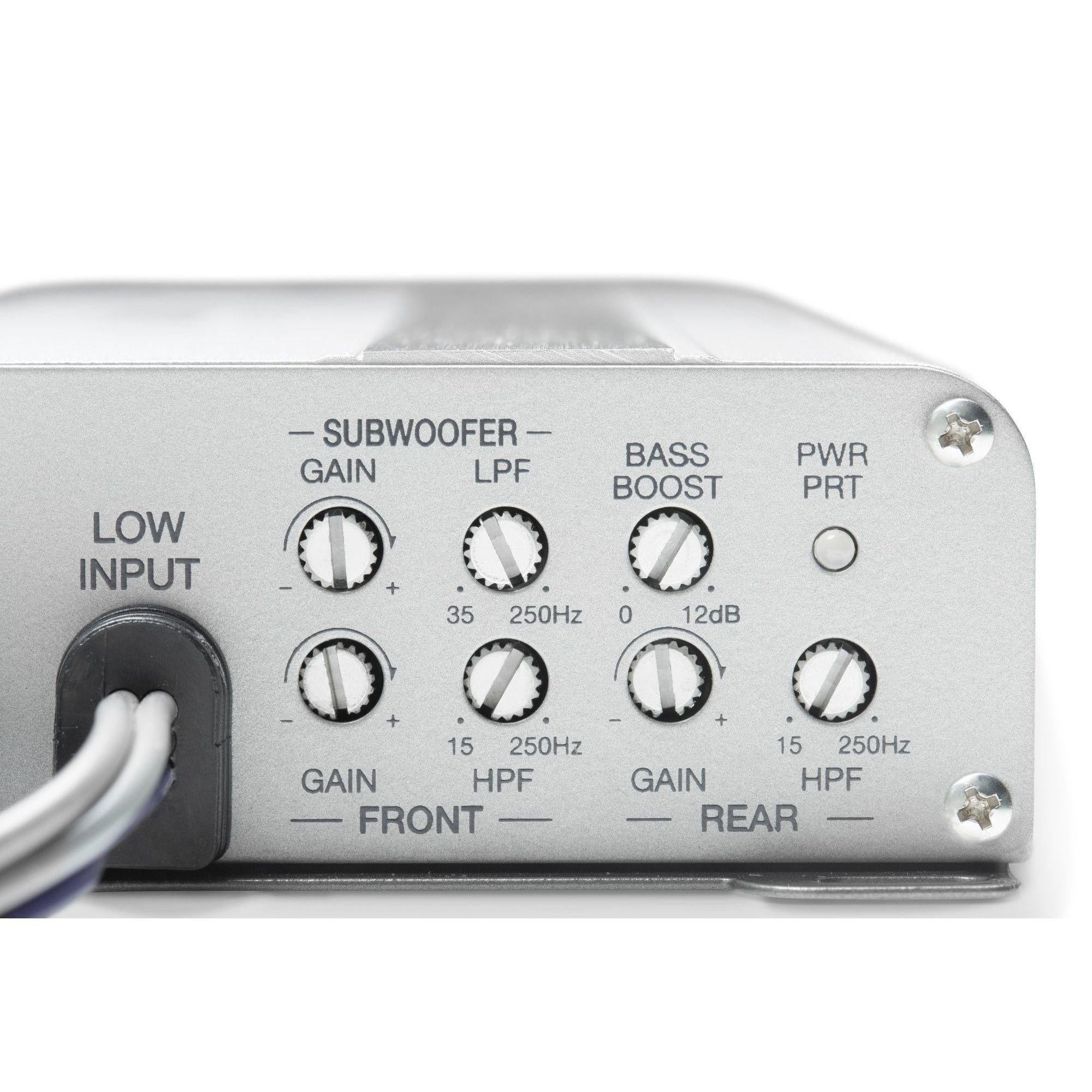

300W x 1 @ 2 ohms – Features: variable High-Pass Filters on main channels, variable Low-Pass Filter on subwoofer channel, and variable Bass Boost

• Powers a complete four speaker plus subwoofer system.

• Efficient Class D technology

• Rated Power (1% THD+N, 14.4V):
  50W x 4 + 200W x 1 @ 4 ohms
  75W x 4 + 300W x 1 @ 2 ohms

• Frequency Response:
  15-30kHz (Ch. 1-4)
  15-250Hz (Ch. 5)

• ≥ 70dB S/N Ratio

• 15-250Hz Variable 12dB/Oct
  High-Pass Filter (Ch. 1-4)

• 35-250Hz Variable 12dB/Oct
  Low-Pass Filter (Ch. 5)

• Variable Bass Boost (Ch. 5)
  0-12 dB @ 50Hz

• 6-ch RCA Low Level Inputs

• 4-ch High Level Inputs

• Double layer PCB, coated for corrosion protection

• Dimensions (H x W x D):
  1.54 x 11.02 x 4.33 in.
  (39 x 280 x 110 mm)
