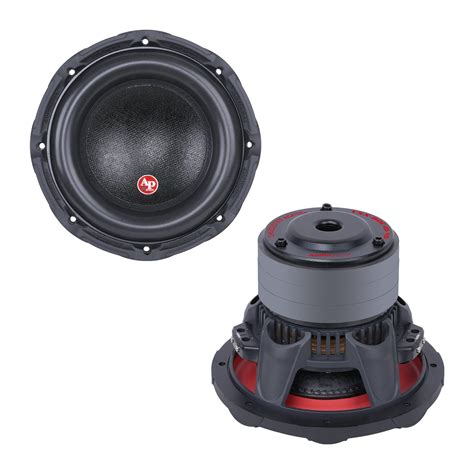

Audiopipe TXX-BDC-III-10 10" Subwoofer – 700W RMS 1400W Dual 4 Ohm Triple Stack

Product Description

The Audiopipe TXX-BDC-III-10 is a heavy-duty 10-inch car audio subwoofer built for customers who want powerful, hard-hitting bass from a compact 10" platform. Rated at 700 watts RMS and 1,400 watts peak, this subwoofer combines a triple-stack 132 oz magnet structure, Dual 4-Ohm voice coils, high-temperature BASV voice coil, Kevlar-fiber composite cone, and cast aluminum basket for dependable high-output performance.

Whether you're building a single-subwoofer daily system, a dual-10 setup, or a custom truck bass system, the TXX-BDC-III-10 provides an excellent balance of power handling, compact size, durability, and value.

🔥 700W RMS / 1400W Peak Power

Don't judge this Audiopipe by its 10-inch size. The TXX-BDC-III-10 is rated for:

RMS Power Handling: 700 Watts
Peak Power Handling: 1,400 Watts
Impedance: Dual 4 Ohm
Magnet: Triple Stack – 132 oz
Mounting Depth: 6-13/16"

Audiopipe designed the triple-magnet motor structure for strong power handling while incorporating increased voice-coil ventilation for better thermal performance.

🧲 Triple-Stack 132 oz Magnet

One of the standout features of the TXX-BDC-III series is its triple-stack motor.

The TXX-BDC-III-10 uses three magnets totaling 132 oz, creating the motor structure needed to control the cone during high-output bass reproduction.

For customers comparing Audiopipe's BDC lineup, this model sits between the Double Stack BDC-II and more powerful Quad Stack BDC-IV.

🔊 Kevlar-Fiber Composite Cone

Audiopipe uses a Kevlar-fiber composite non-pressed paper cone with a textured finish.

The design increases cone rigidity, helping the woofer remain controlled as output increases. The cone is paired with a durable suspension and motor assembly designed specifically for high-output car audio.

⚡ High-Temperature Dual Voice Coil

The TXX-BDC-III-10 features a multi-layer high-temperature BASV voice coil with improved ventilation.

The Dual 4-Ohm (D4) configuration also provides useful amplifier-matching flexibility.

With one TXX-BDC-III-10, the two 4-ohm coils can typically be wired to:

2 Ohms — coils wired in parallel
8 Ohms — coils wired in series

When using multiple subwoofers, additional final-impedance configurations become possible.

Always verify your amplifier's minimum impedance before connecting the subwoofer.

🔌 Patented Multi-Connect Terminals

Audiopipe equips the TXX-BDC-III-10 with its patented pipe multi-connect terminals.

They're designed to provide a secure connection while making series and parallel wiring configurations more convenient.

💪 Heavy-Duty Aluminum Basket

A powerful motor and cone need a rigid foundation.

Audiopipe uses a powder-coated black aluminum basket along with a reinforced heat-management design. The aluminum frame provides a rigid structure for the motor, cone, and suspension while contributing to the subwoofer's distinctive heavy-duty appearance.

📦 Great for Ported & Custom Bass Boxes

Audiopipe's 2026 catalog recommends approximately:

Sealed Enclosure: 1.0 cu. ft.
Vented/Ported Enclosure: 1.5 cu. ft.

The same catalog specifies a 6-13/16" (173 mm) mounting depth, making enclosure depth especially important when installing the woofer in a truck or other space-constrained application.

A properly designed ported enclosure can be an excellent choice when your goal is more output and aggressive bass, while a sealed enclosure can work well when compact size and controlled response are priorities.

Actual enclosure design should account for displacement, vehicle, amplifier power, desired tuning and available space.

🚚 Excellent for Custom Truck Bass Systems

The 10-inch format makes the TXX-BDC-III-10 especially attractive for custom truck installations where a 12" or 15" subwoofer may require too much space.

Potential applications include custom boxes for:

Chevy Silverado • GMC Sierra • Ford F-150 • Ford F-250 • Ram 1500 • Single Cab Trucks • Extended Cab Trucks • Crew Cab Trucks • Cars • SUVs

These are examples of potential applications, not guaranteed vehicle fitments. Check mounting depth, cutout diameter, airspace and enclosure design before purchasing.

📋 Audiopipe TXX-BDC-III-10 Specifications

Audiopipe's current webpage lists a 24–1500 Hz response and 93 dB sensitivity, while its 2026 catalog lists 24–1000 Hz and 89 dB. Because those official Audiopipe sources conflict, I would not put sensitivity or the upper frequency limit in the main East Car Audio listing until Audiopipe reconciles those figures. The important core specifications—700W RMS, 1,400W peak, Dual 4Ω, 132 oz magnet, and 173 mm mounting depth—agree.

What's Included

1 × Audiopipe TXX-BDC-III-10 10" Subwoofer

This listing is for ONE subwoofer unless otherwise stated in the product options.

Why Buy the Audiopipe TXX-BDC-III-10?

If you're looking for a powerful 10-inch subwoofer without jumping into a much larger woofer, the Audiopipe TXX-BDC-III-10 delivers a compelling combination of power and value.

You get:

700W RMS power handling
1,400W peak power
Dual 4-Ohm voice coils
Triple-stack 132 oz magnet
Kevlar-fiber composite cone
High-temperature voice coil
Heavy-duty aluminum basket
Multi-connect terminals

It's a strong choice for customers building single-10, dual-10, custom truck, daily-driver, or high-output car audio systems.

10 Inches. 700W RMS. Triple-Stack Audiopipe Bass.
