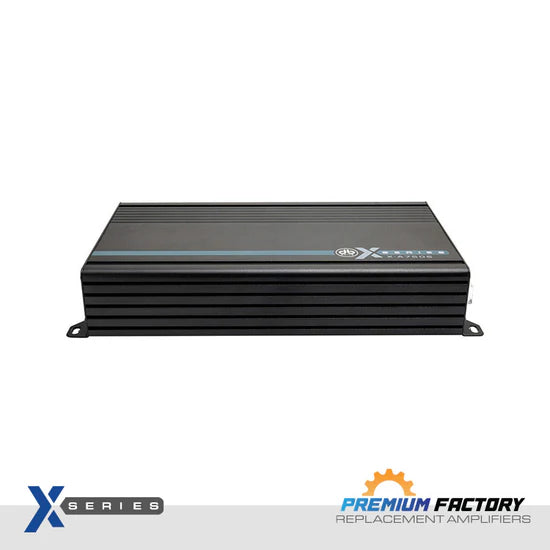

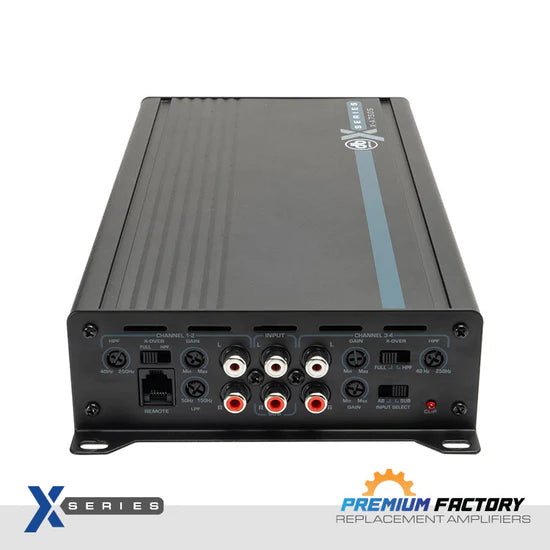

X-A7505 : 5-Channel Class D Amplifier

Product details

Want to upgrade the sound system in your vehicle, the DB DRIVE X-A7505 is your full system ultimate solution. Designed for both audiophiles and casual listeners, it offers dynamic, high-performance audio. Key Features: • Powerful Output: 75W x 5 at 4 ohms, plus a 5th 350W channel that runs at 2 ohms. • Bridgeable Design: Easily drive a subwoofer for enhanced low-end performance. • High-Efficiency Circuit: Perfect for modern vehicles with compact electrical systems. • Adaptive HP/Lp Crossover: Fine-tune your audio for optimal sound.. • 4-Layer PCB: Delivers cleaner, more accurate sound. • Compact Design: Easy to install without compromising on power. Transform your car into a concert hall with the X-A7505 for sound like never before.

Features

• Class D Technology

• Direct Connect Speaker Terminals

• Illuminated Large Gauge Power Wire Inputs

• PWM Mosfet Power Supply

• APC - Audio Protection Circuit

• SESI - Signal Evaluation Status indicator

• CHM - Collective Heat Management

• Bass Remote:  Included

Specifications

• Total Dynamic Power output: 950 Watts

• 4 x 75 Watts + 1 x 250 Watts @ 4 Ω

• 4 x 150 Watts + 1 x 350 Watts @ 2 Ω

• Frequency Response: 20Hz-20KHz

• Input Sensitivity: 0.2V - 6V

• Input Impedance: 10K

• Signal to Noise Ratio: 90dB

• Remote Gain Level Control: 0.2-6V

• High Pass Filter: 40Hz-250Hz

• Low Pass Filter: 50Hz-150Hz

• Variable Bass Boost: 0-12dB
