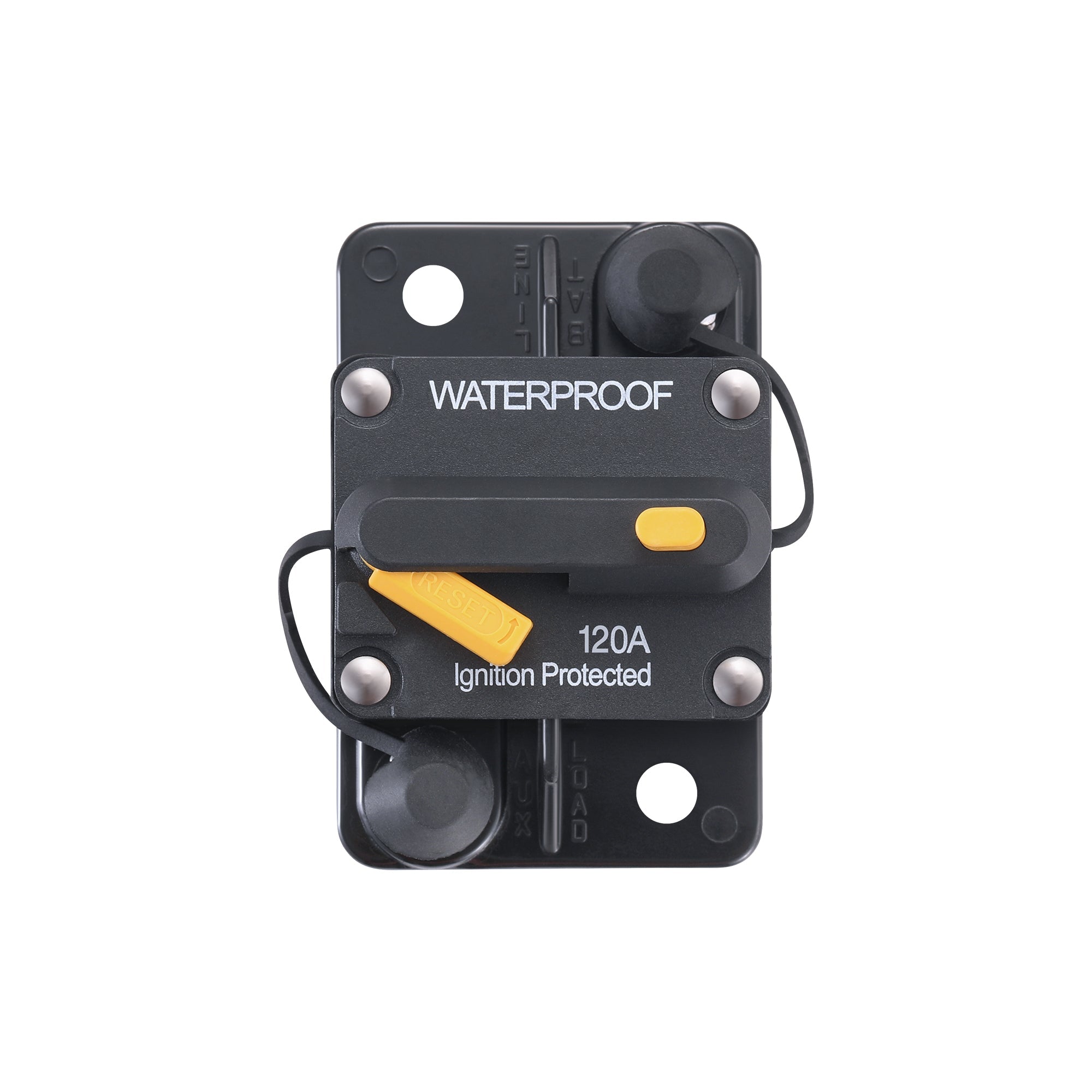

Single Pole Waterproof Circuit Breaker | Waterproof Thermal Type Breaker | Choose Amp: 40A, 60A, 80A, 100A, 120A, 150A, 150A, 200A, 250A
$27.99
In Stock
Sold out
CODE: RS-CB40
Categories: Best Sellers!
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
- Description
- Shipping and Refund
SINGLE POLE THERMAL TYPE BREAKERS
Applications: Typically used in auxiliary and accessory circuits in truck, bus, RVs and marine systems. Others include battery chargers and DC audio systems, compartment and bilge area applications.
Tech Specs
| Rating: | 25-250A, 30VDC; 48VDC |
| Interrupt Rating: | 3000A @30VDC |
| Operating Temperature Rating: | -25°F (-32°C) to 180°F (82°C) |
| Storage Temperature Rating: | -30°F (-34°C) to 300°F (149°C) |
| Materials: | Black UL-rated 94V0 thermoses plastic. Thermoplastic elastomer stud insulators are provided on covered units with F-style (Surface-mount) bases. |
| Marking: | Standard marking includes amp ratings and part numbers. Custom markings also available. |
| Termination: | 1/4-28 or 3/8-16 threaded studs. |
| Torque Rating: | S 50 in-lbs (5.6N·m) max |
| Mounting Torque Rating: | Panel or surface-mount options; 50 in-lbs (5.6N·m) max. Threaded insert option has a max torque of 25 in-lbs (2.8N·m). |
| Ingress Protection Rating: | IP67 Custom markings also available. |
| Compliance: | SAE J1625; ABYC E-11; CE; SAE J1171 (ignition protected) |
User Manual & Specification
30,60,80A Single Pole Breakers
