Pioneer® Hyperformance™ 18,000 BTU 20.5 SEER2 Ductless Mini Split Inverter++ Wi-Fi Enabled Air Conditioner Hyper Heat Pump Full Set 230V

Overview

Summary

• Ultra Low Ambient Hyperformance™ Ductless Mini Split Hyper Heat Pump System
• Cooling capacity: 18,000 BTU/H (1.5 Ton) with 20.5 SEER2 / 13.2 EER2 efficiency
• Heating capacity: 18,000 BTU/H (1.5 Ton) with 9.5 HSPF2 / 3.51 COP efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Hyper Heat Unit (Continues heating in -22°F weather)
• Wireless Internet Access Included (Via Free Smartphone App)

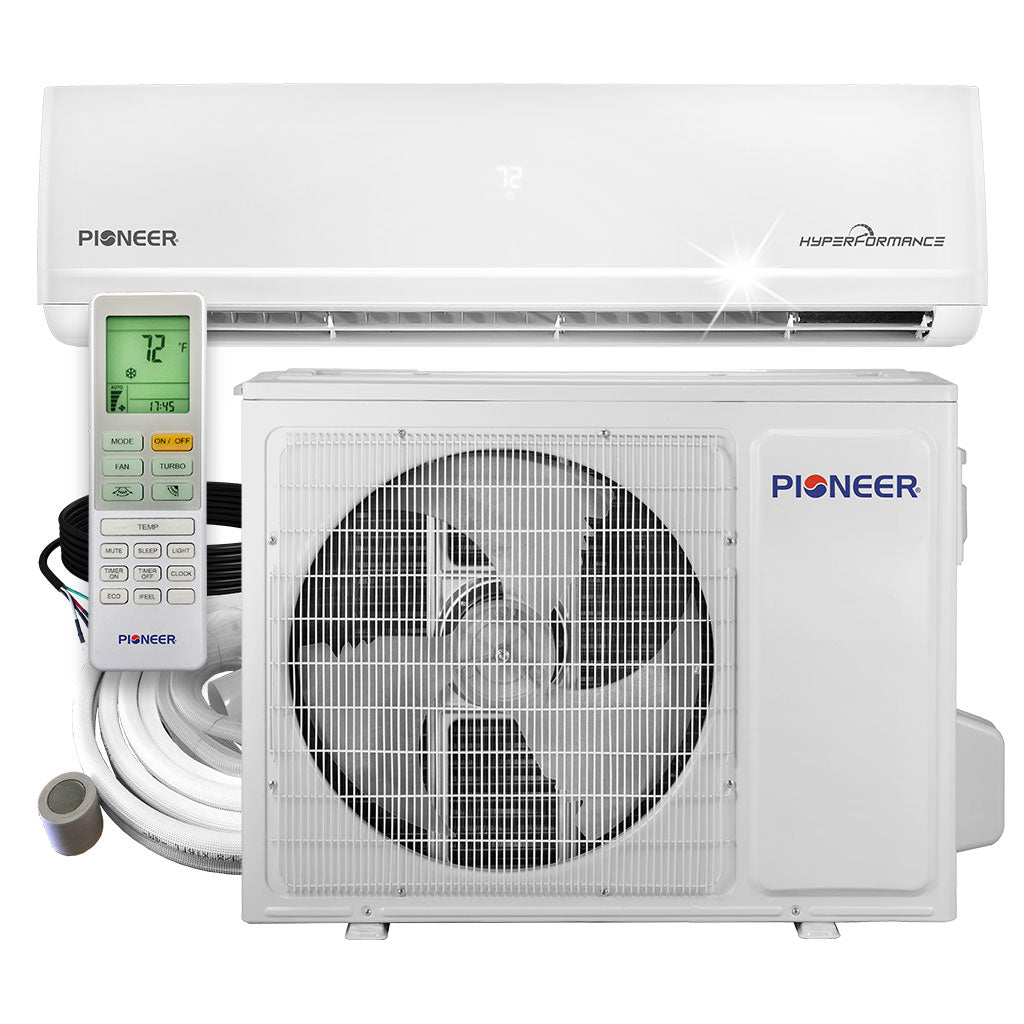

What's Included

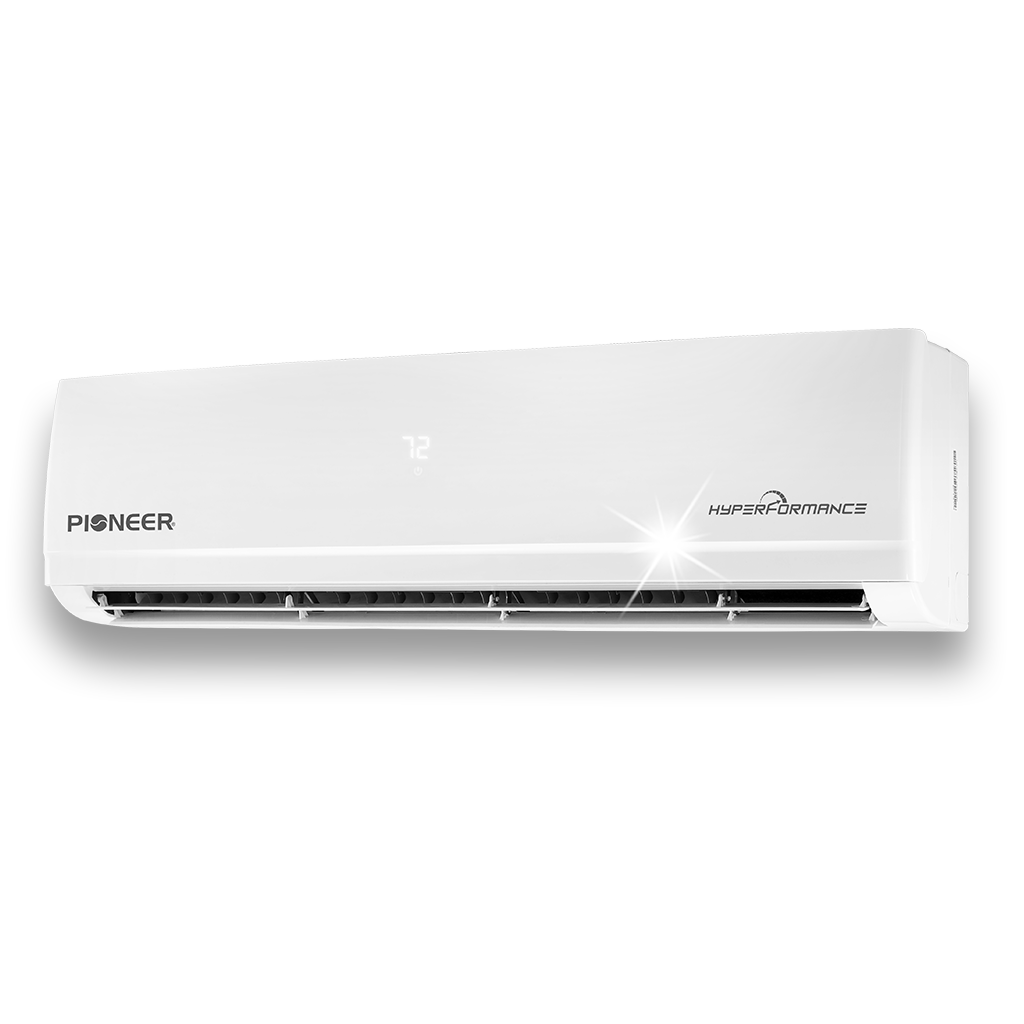

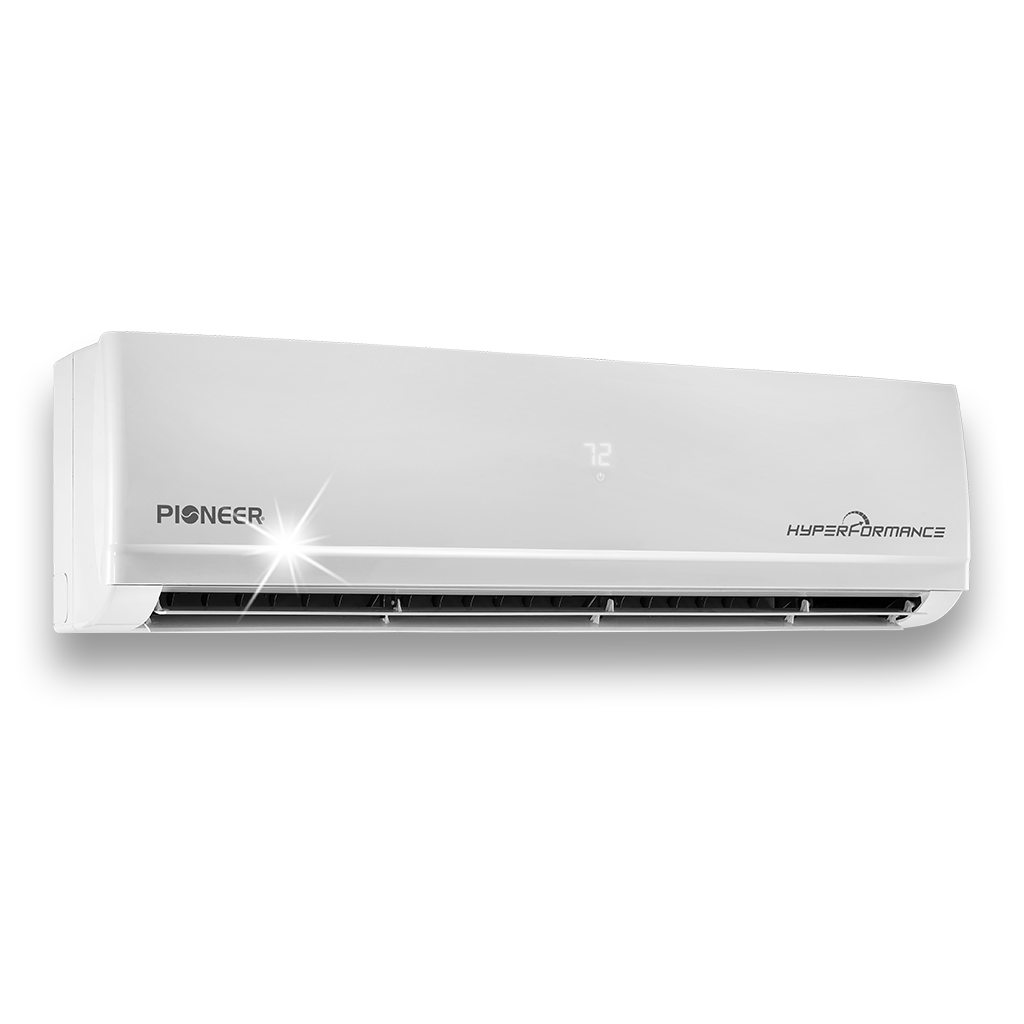

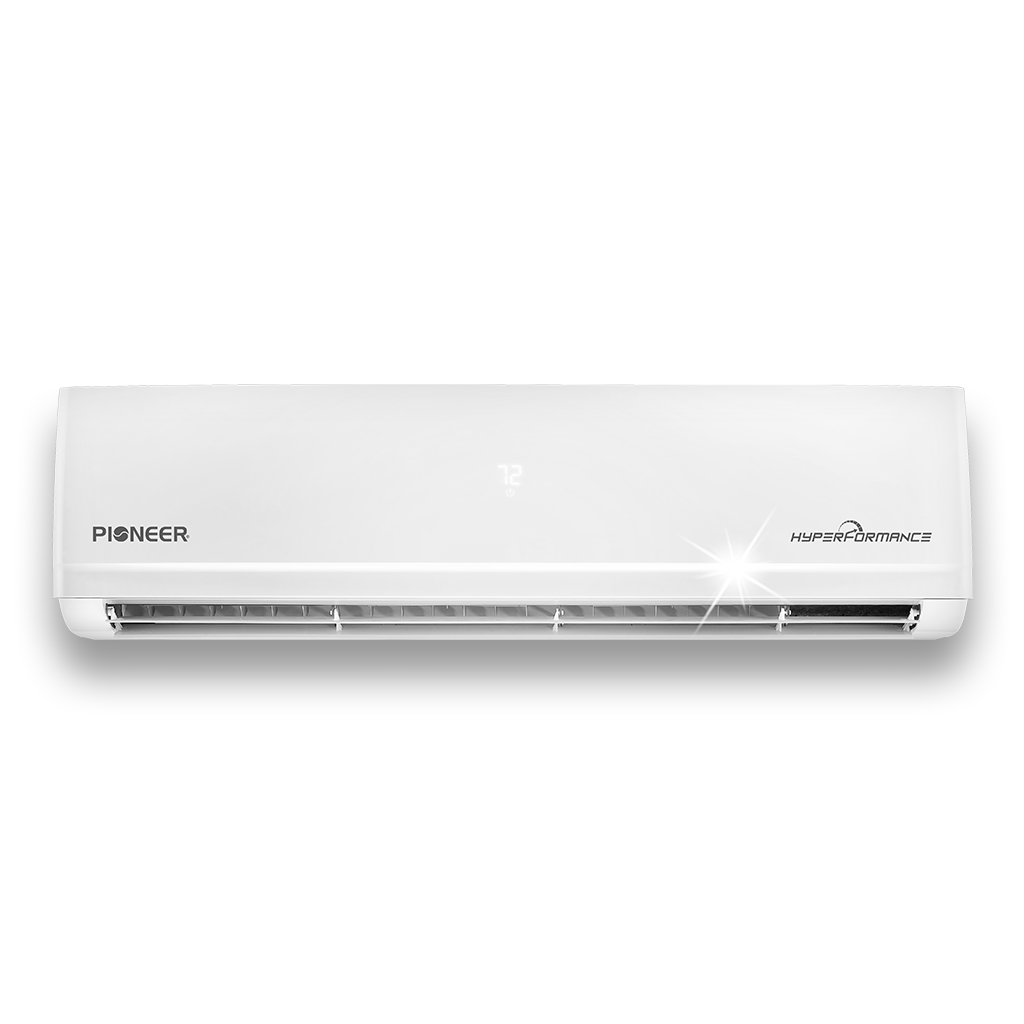

• Indoor Unit

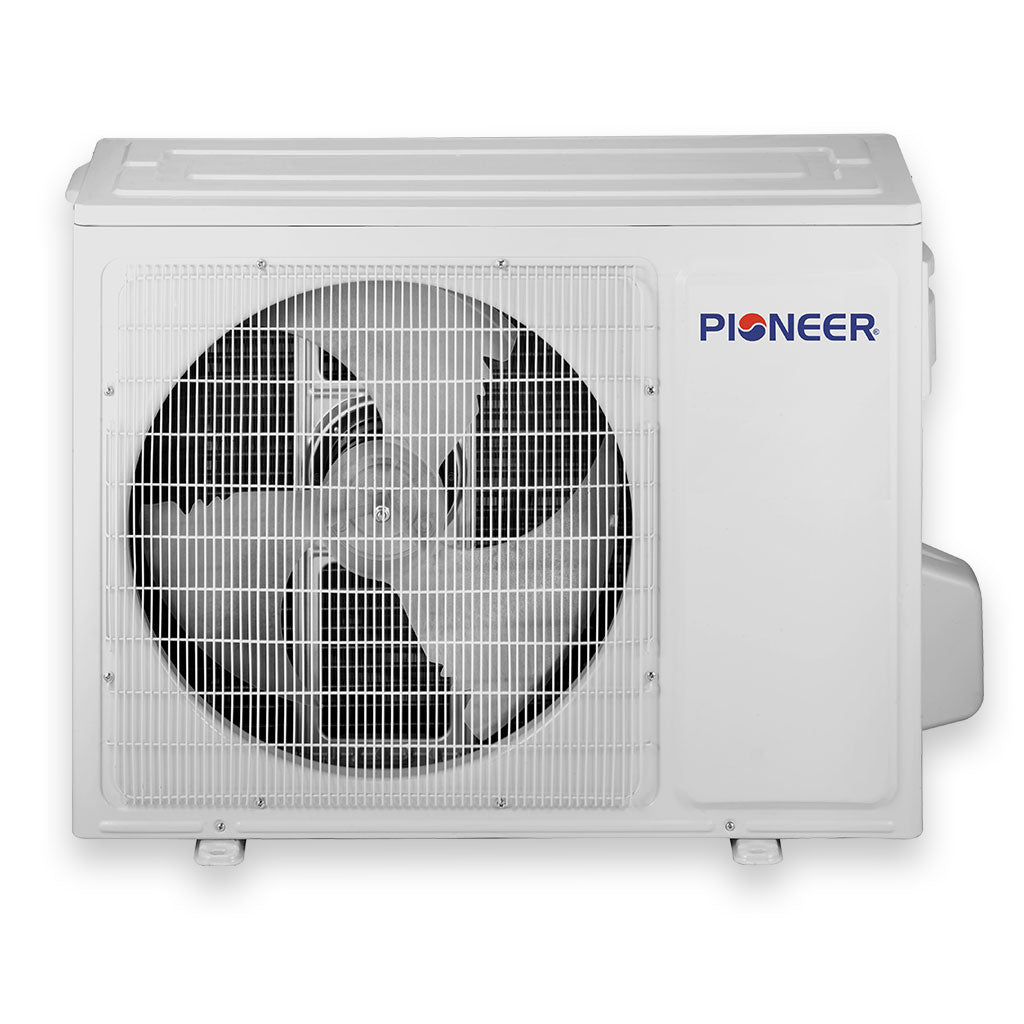

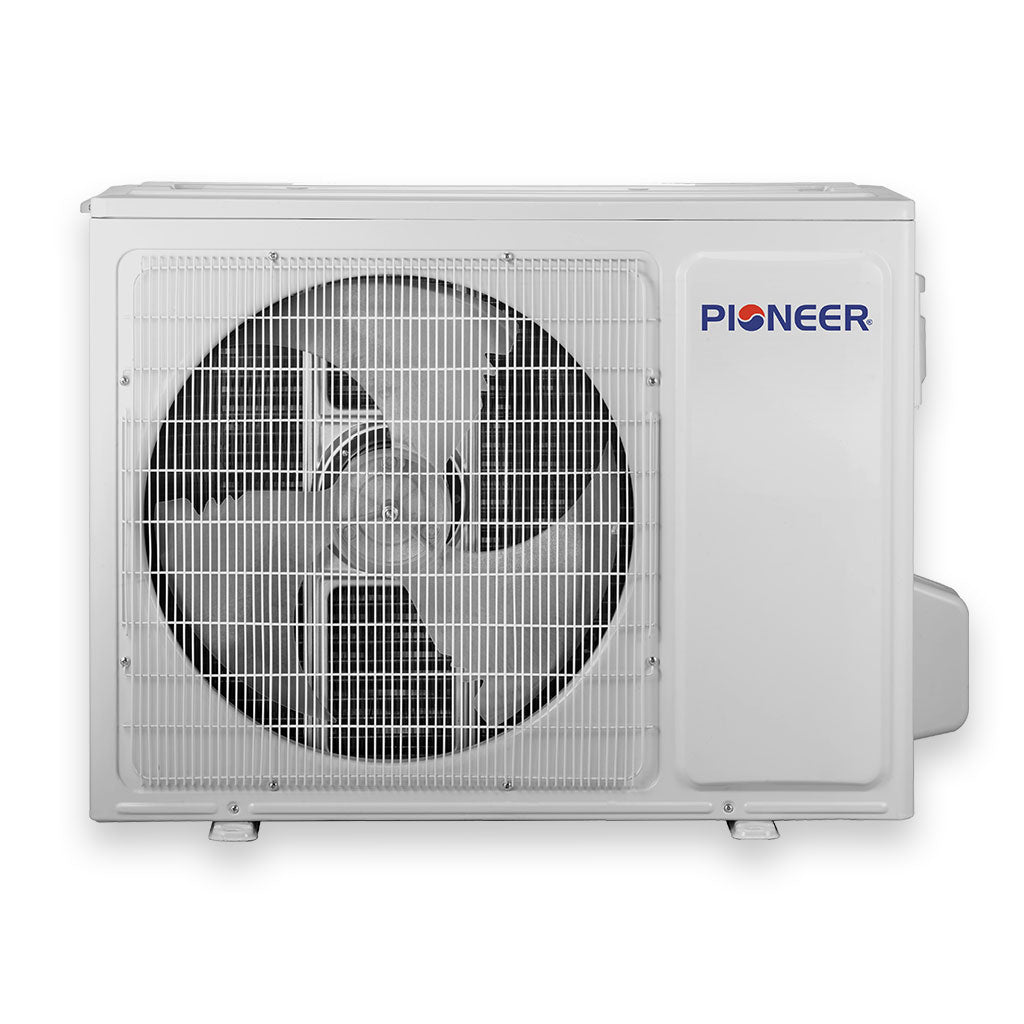

• Outdoor Unit

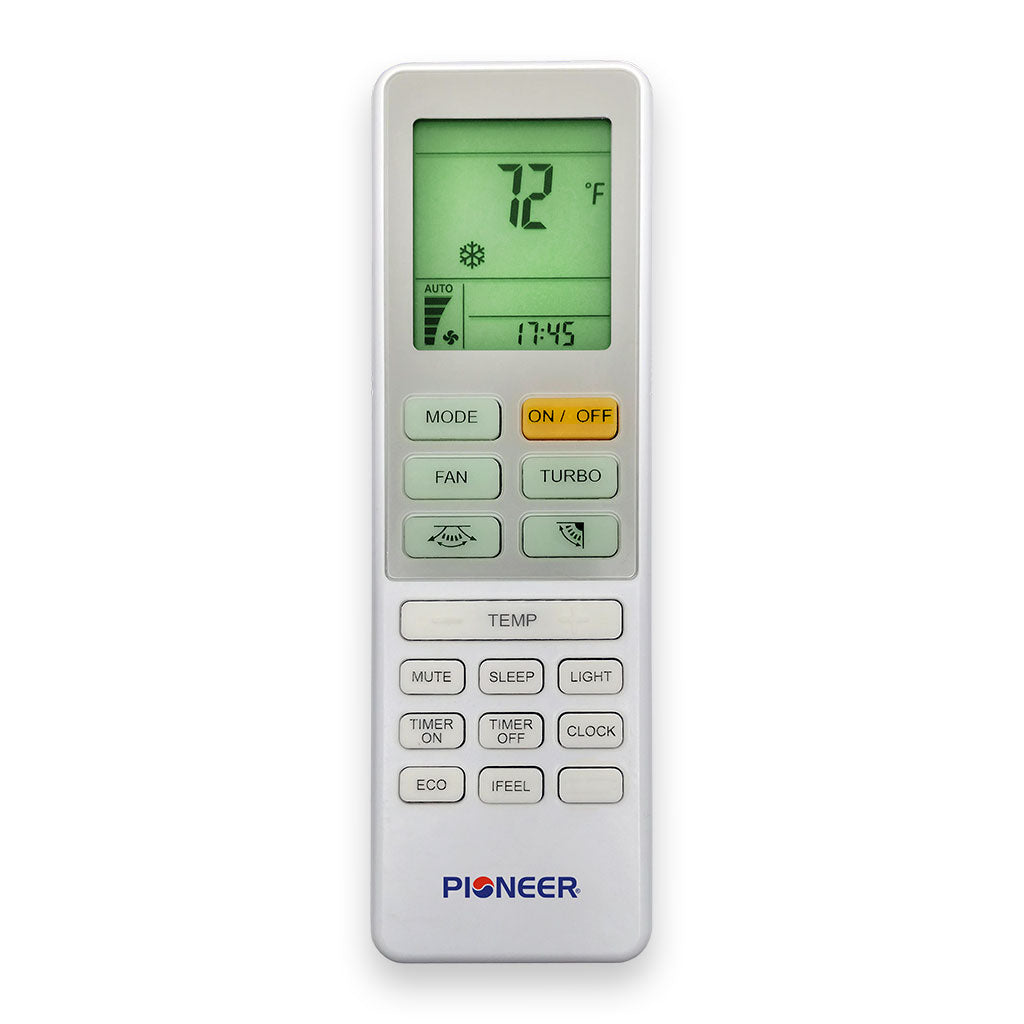

• Wireless Remote Control (with wall holder and batteries)
• Internet Control Module

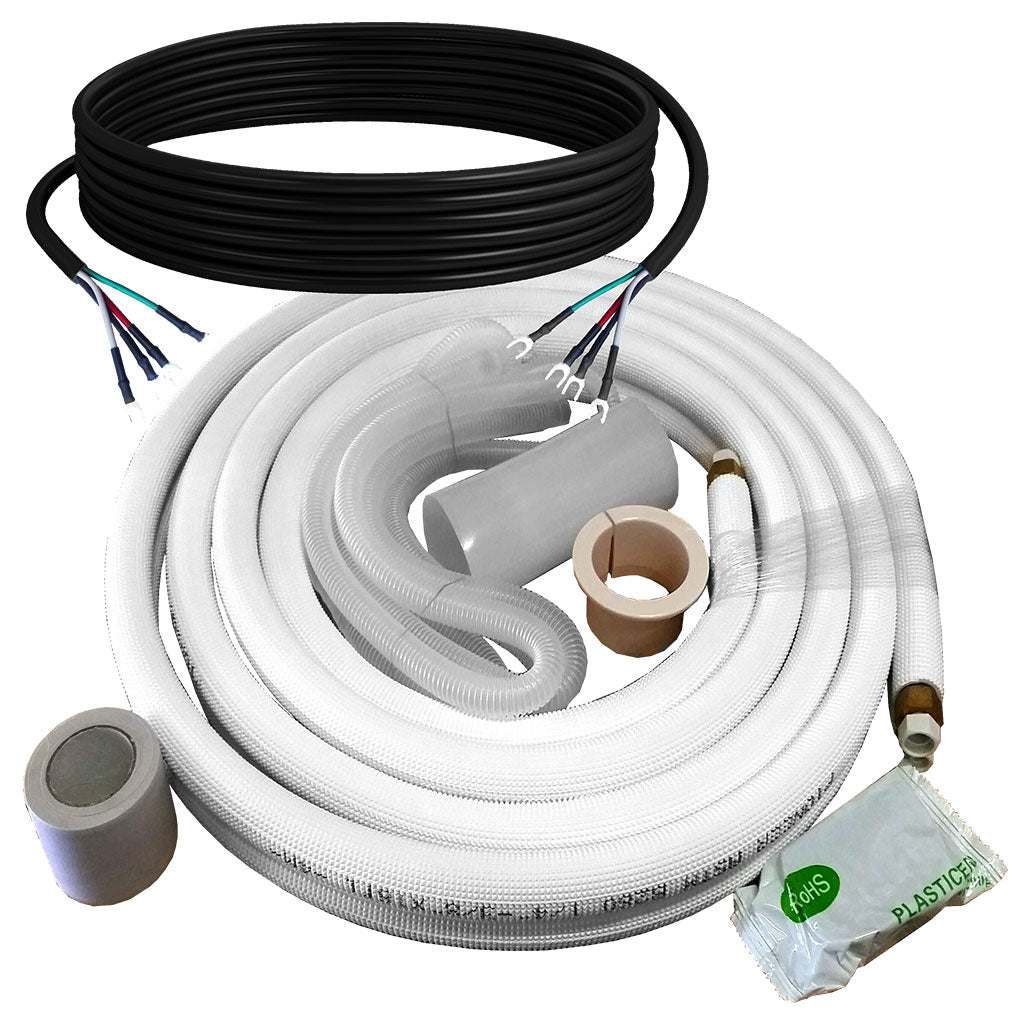

• Copper Lines*
• Signal Cable Between Units*
• Drain for Indoor/Outdoor*
• Wall Passage Sleeve*
• Putty for Wall Hole*
• Leak Guard Sealer
• Wrapping Tape
• Installation Manual
• User’s Manual

*If ordered with an installation kit

Our Guarantee

• 5 years Warranty for Parts (Extendable to up to 7 years)
• 5 years for Compressor (Extendable to up to 10 years)

Features

[[FEATURES]]

Technical Information

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity (BTU/hr): 18,000 (4,500 ~ 20,000)
• Rated Power Input (Cooling): 1,360W
• Rated Current (Cooling): 6.0A
• Cooling SEER2: 20.5 BTU/W.h
• Cooling EER2: 13.2 BTU/W.h
• Heating Rated Capacity (BTU/hr): 19,000 (5,500 ~ 23,000)
• Rated Power Input (Heating): 1,620W
• Rated Current (Heating): 7.2A
• Heating HSPF2 (Region IV/V): 10.5 / 9.5 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.51 / 1.85 W/W
• Refrigerant Type/Weight: R410A/1.9kg

• Recommended Application Area: 350~775 Sq.Ft

Indoor Unit Data

• Part Number: WF018GHFI25HLH
• Air Flow (Hi/Med/Lo): 559 / 470 / 382 CFM
• Sound Level (Turbo/Hi/Med/Lo/Mute): 48/45/41/39/35 dB(A)
• Net Dimensions (WDH): 44-1/2 x 9 x 12-3/8 Inches
• Carton Dimensions (WDH): 47 x 15 x 12-7/8 Inches
• Net / Gross Weight: 29.7 / 35.2 Lbs

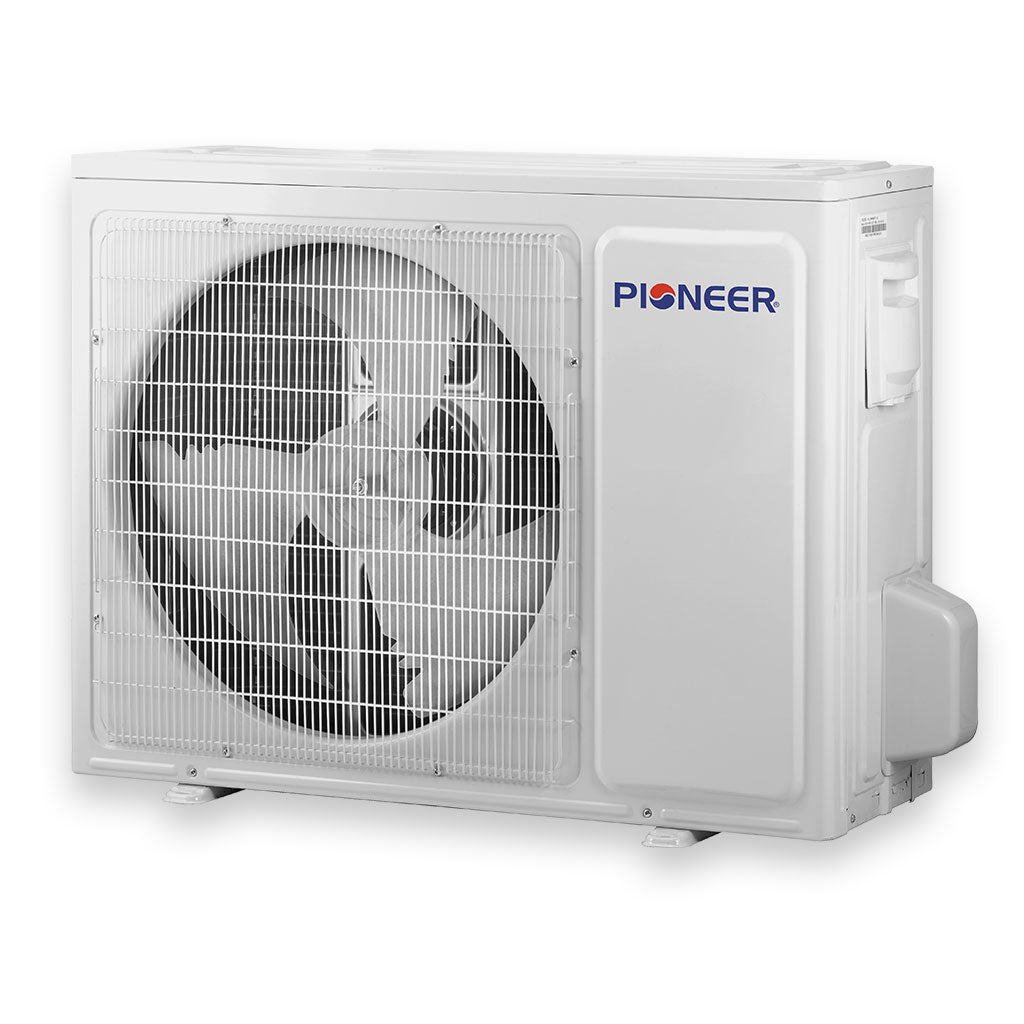

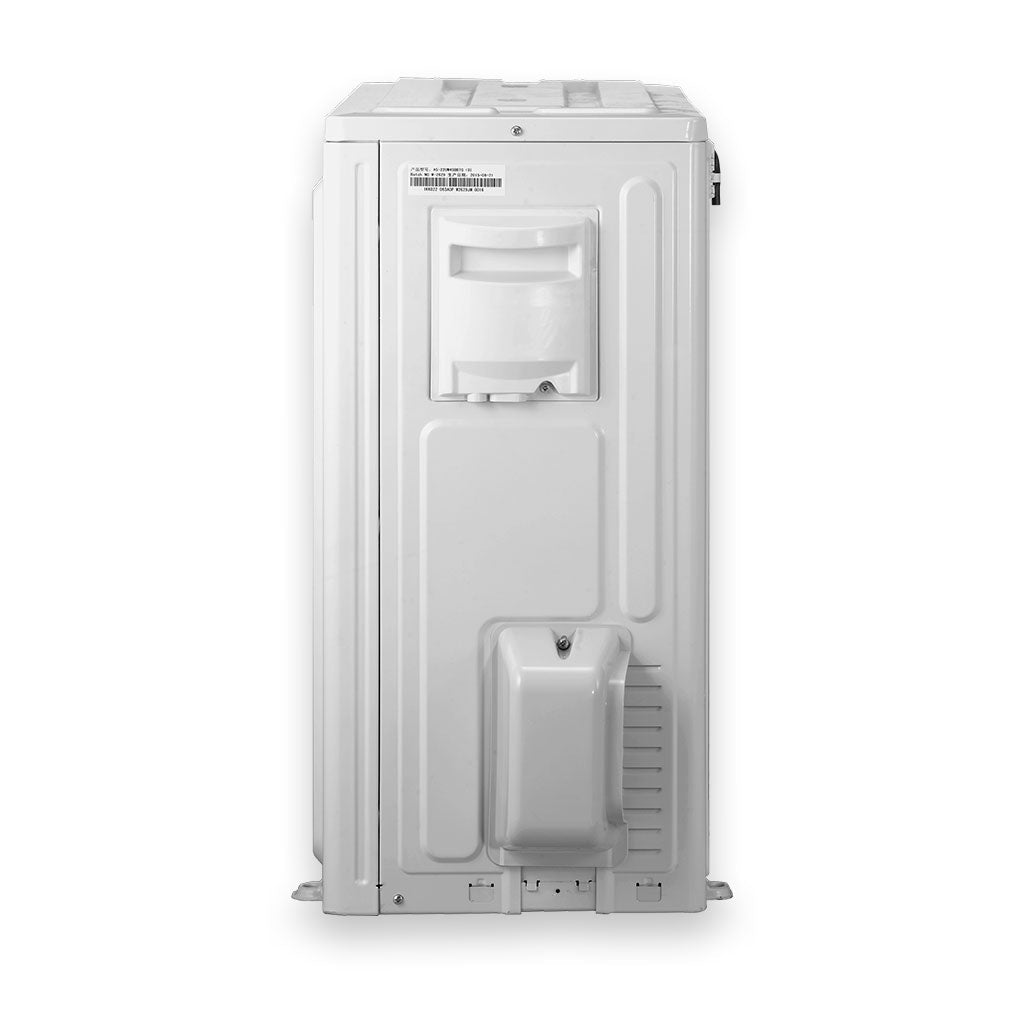

Outdoor Unit Data

• Part Number: YN018GHFI25RPH
• Sound Level: 58 dB(A)

• Net Dimensions (WDH): 33-7/8 x 12-1/4 x 25-5/8 Inches
• Carton Dimensions (WDH): 39-1/8 x 17-1/2 x 28-3/4 Inches
• Net / Gross Weight: 101.2 / 110 lbs
• Electrical Circuit Size: 20A (double-pole)

Manuals & Documents

• Product Brochure
• User & Installation Manual
• Service Manual
• Wi-Fi App Manual
• Heating Performance Chart
• AHRI Certificate

• Energy Guide
