Pioneer® EStar™ 12,000 BTU 23.1 SEER2 Ductless Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V
$1,063.00
In Stock
Sold out
CODE: WYS012GMFI22RL-10
Categories: Best Sellers!
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
- Description
- Shipping and Refund
Overview
Summary
- Ultra-High Efficiency Inverter++ ductless mini split heat pump system
- Cooling capacity: 12,000 BTU/H with 23.1 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 12,000 BTU/H with 9.3 HSPF2 / 3.5 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode

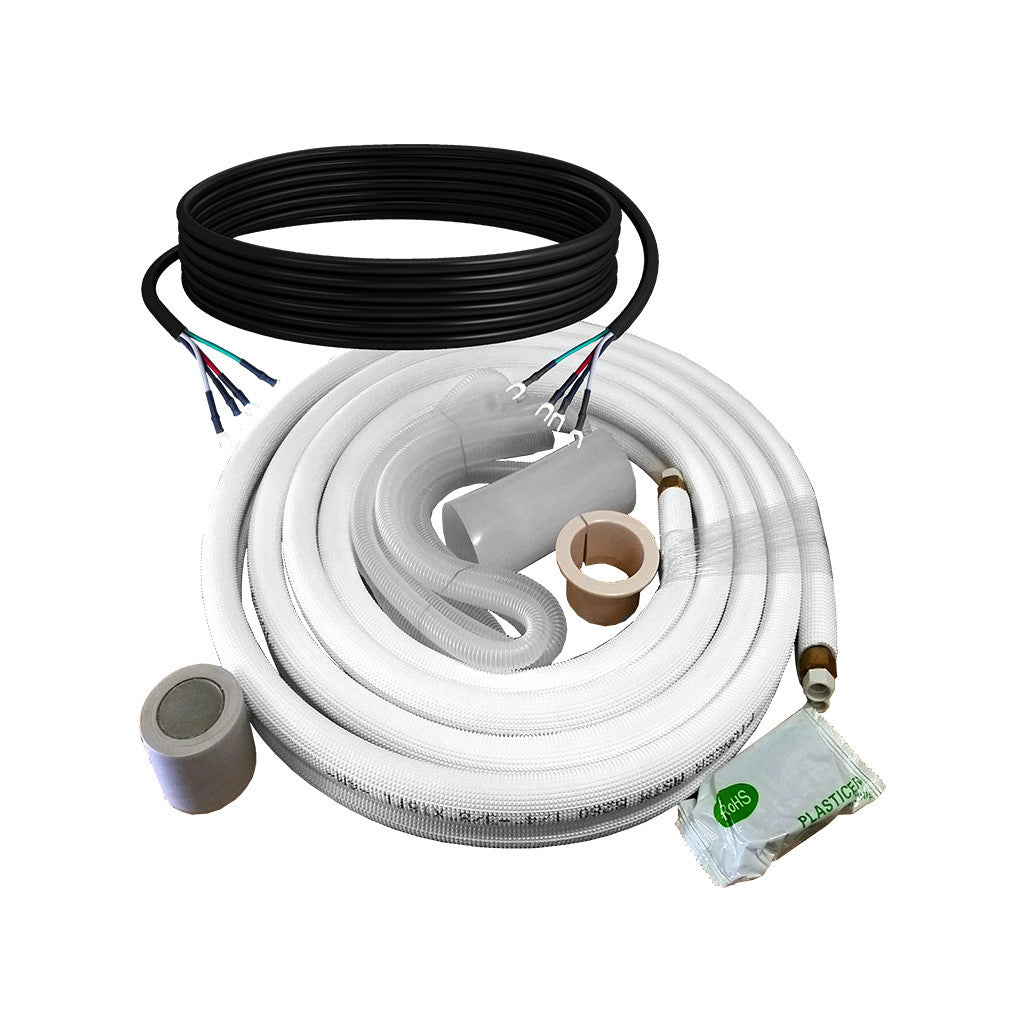

- Customizable length copper line set with flare connections
- Energy-Star Certified
- AHRI Estimated Annual Operating Costs:
- Cooling: $72.00
- Heating: $235.00

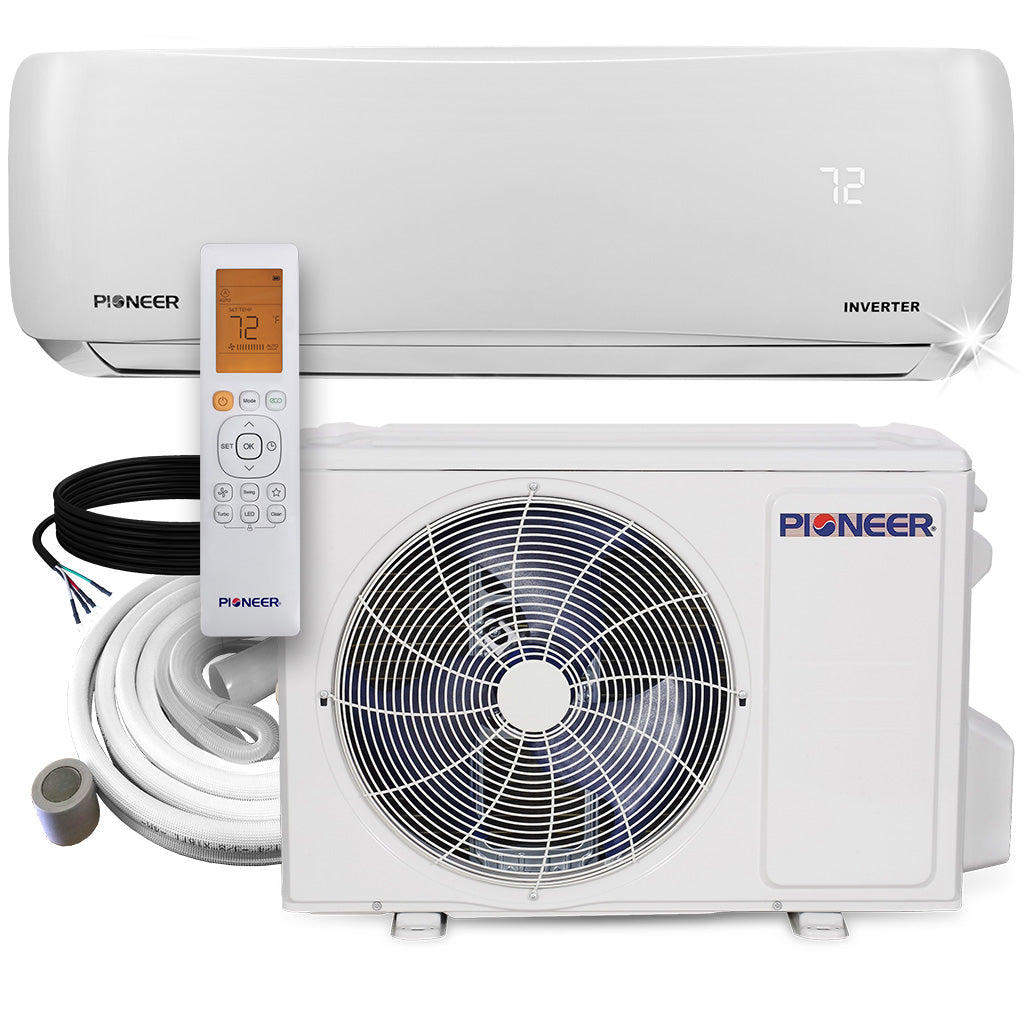

What's Included

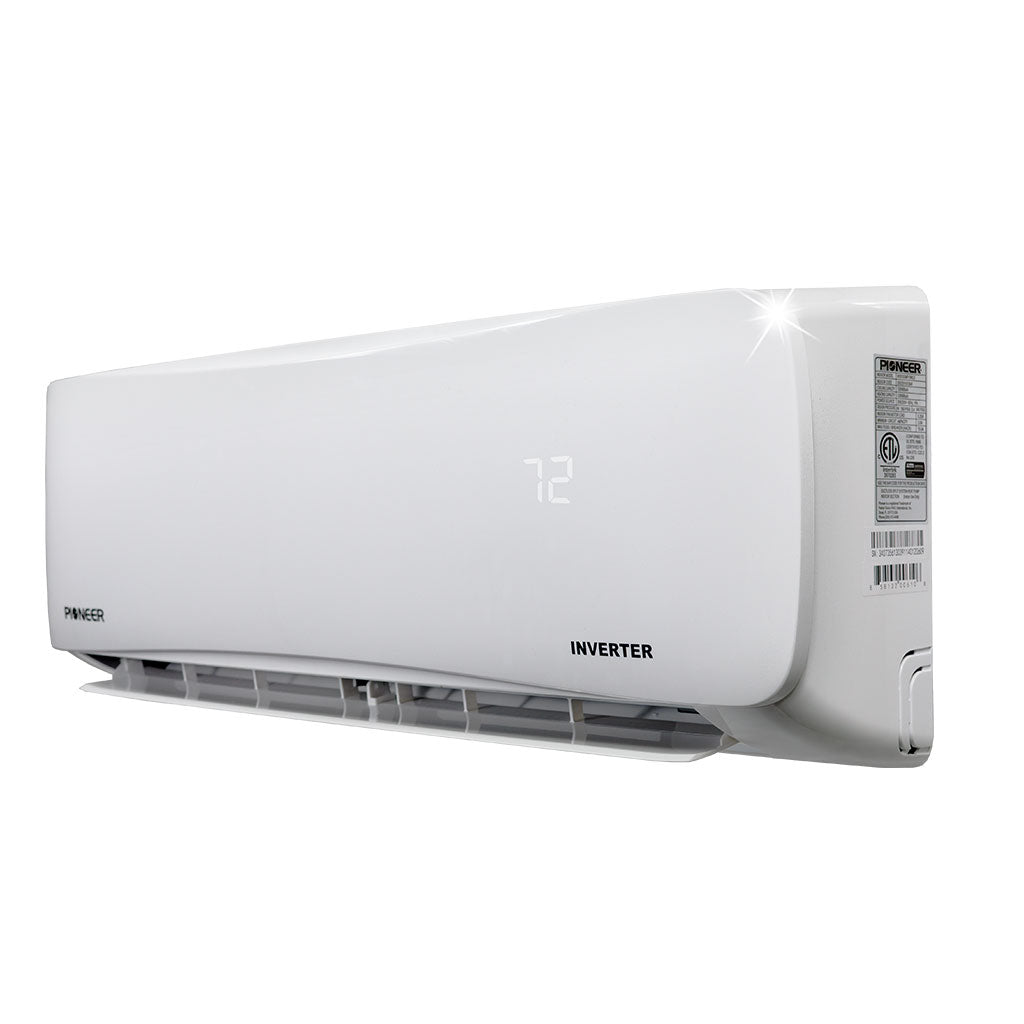

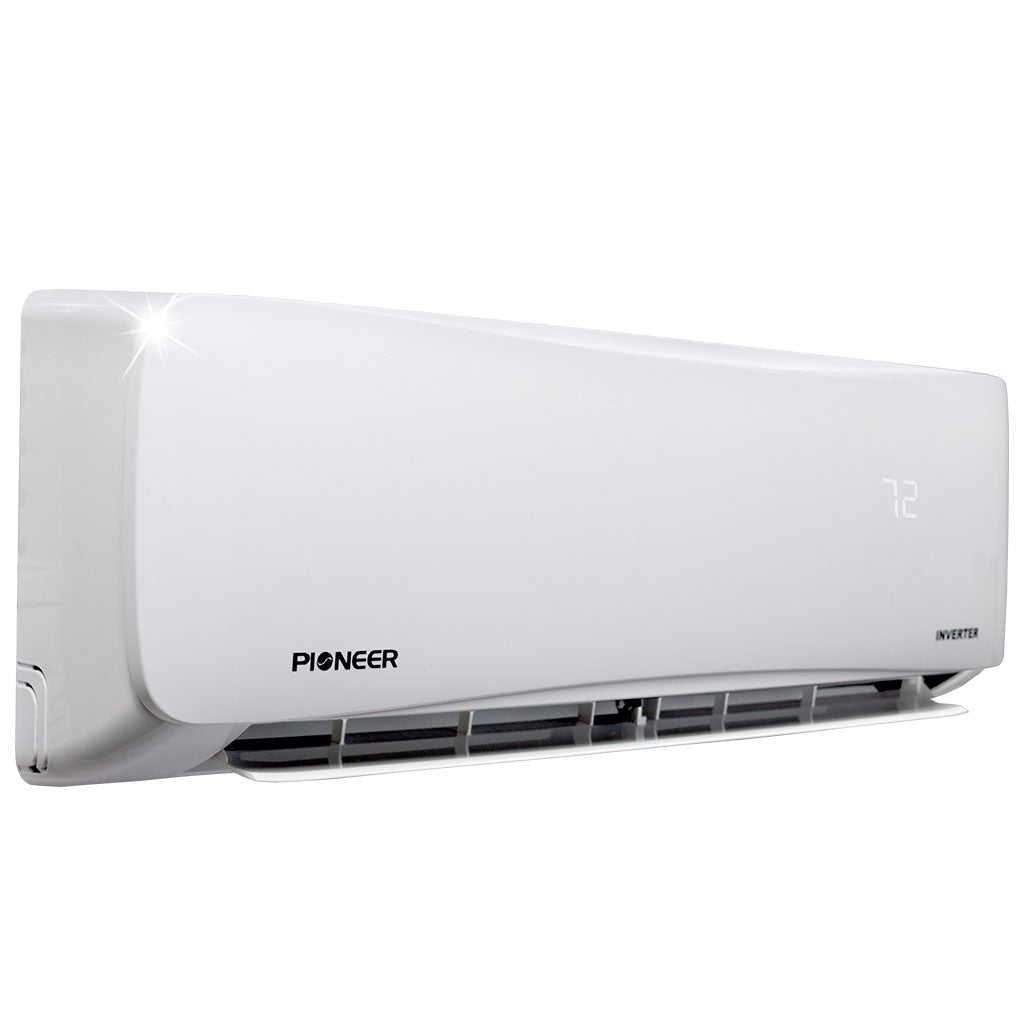

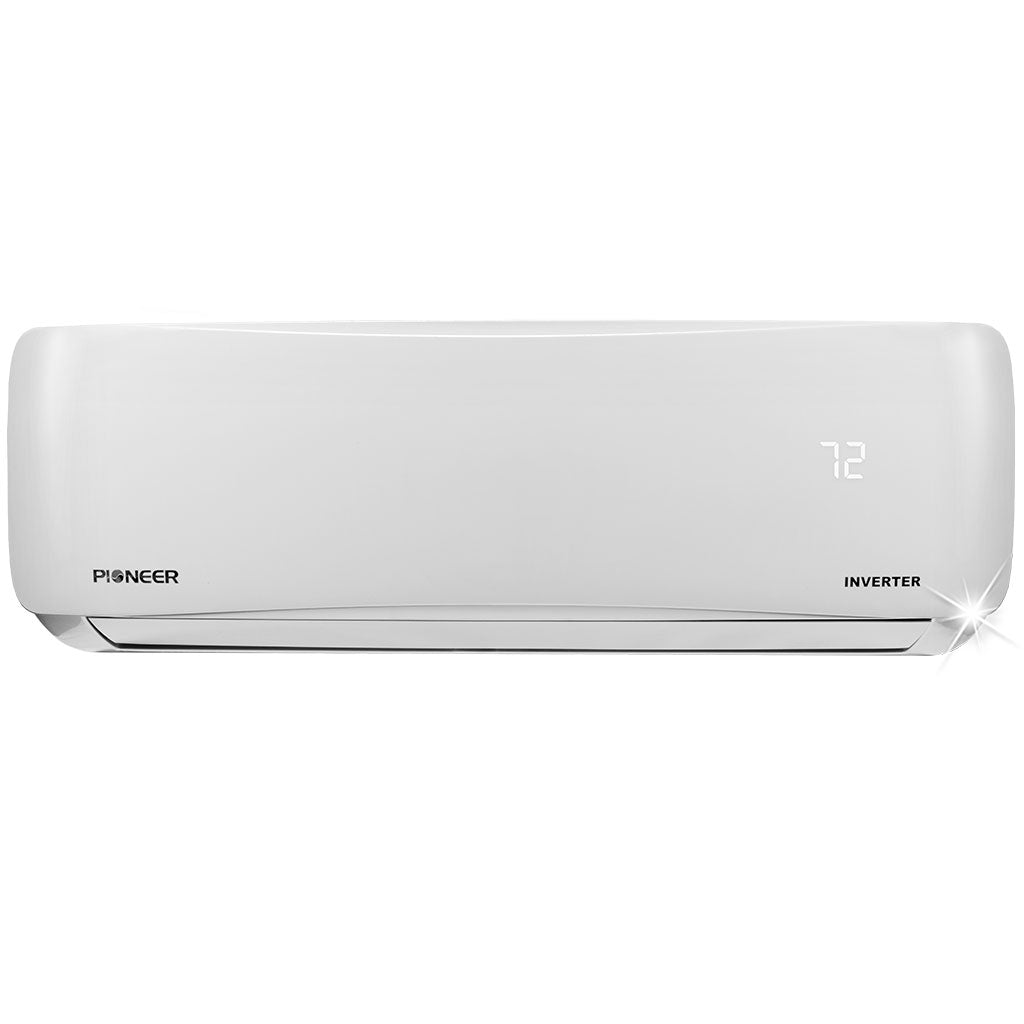

- Indoor Unit
- Outdoor Unit

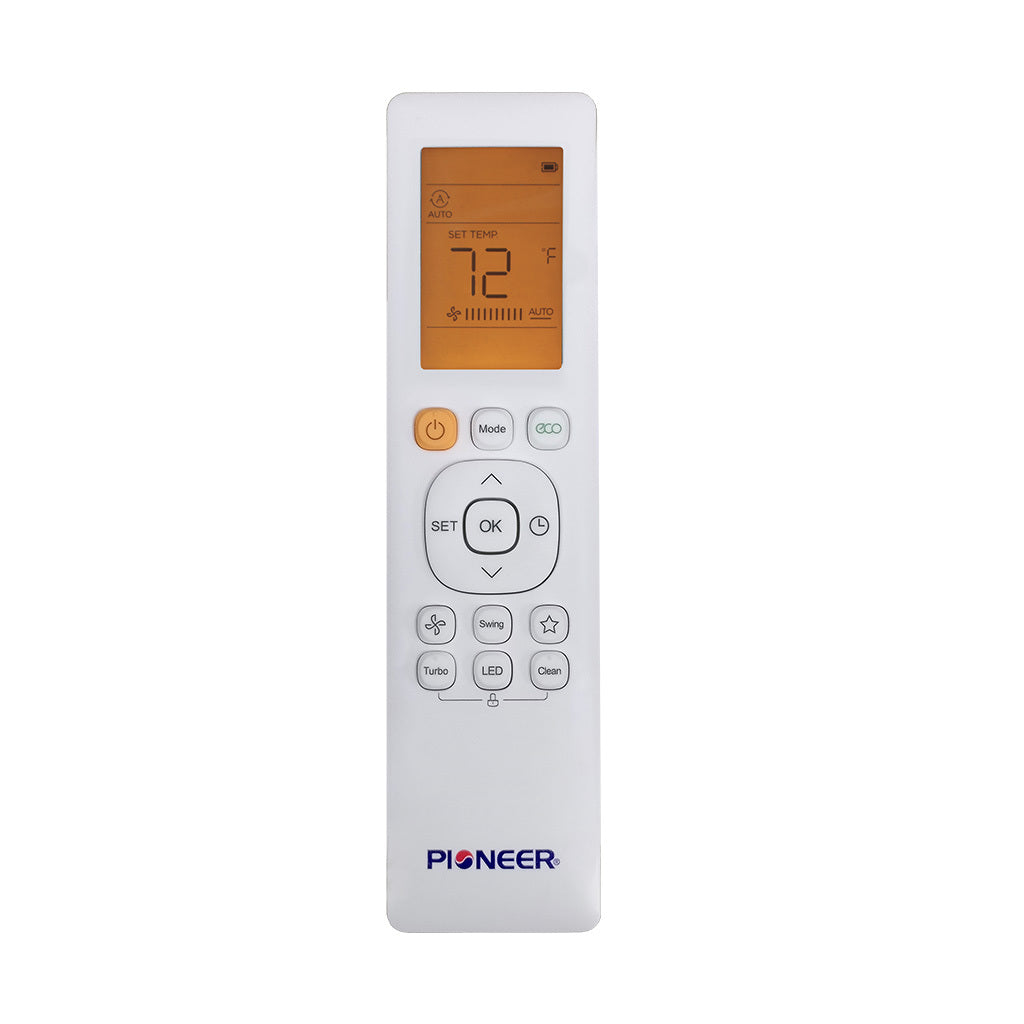

- Wireless Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Features
[[FEATURES]]Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 12,000 BTU/h
- Cooling Capacity Range: 3,536~12,931 BTU/h
- Cooling SEER2: 23.1 BTU/w
- Cooling EER2: 12.5 BTU/w
- Heating Rated Capacity: 12,000 BTU/h
- Heating Capacity Range: 3,747~12,550 BTU/h
- Heating HSPF2 (Region IV/V): 9.3 / 7.1 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.50 / 2.24 W/W
- Refrigerant Type: R410a
- Suitable Area: 200~450 Sq.F
Indoor Unit Data
- Part Number: WS012GMFI22HLE
- Air Flow (Turbo/Hi/Med/Lo): 323 / 306 / 212 / 147 CFM
- Sound Level (Hi/Med/Lo): 37.5 / 30.0 / 21.5 dB(A)
- Net Dimensions (WDH): 31"-1/2 x 7"-3/8 x 11"-5/8
- Carton Dimensions (WDH): 34"1/2 x 11"-1/4 x 15"
- Net / Gross Weight: 19 / 24 Lbs
Outdoor Unit Data
- Part Number: YN012GMFI22RPE
-
Sound Level: 53.5 dB(A)
- Breaker Needed: 15A (double-pole)
- Net Dimensions (WDH): 30"-1/8 x 11"-7/8 x 21"-7/8
- Carton Dimensions (WDH): 34"-7/8 x 13"-1/4 x 24"
- Net / Gross Weight: 63.7 / 69 Lbs
