Pioneer® 24,000 BTU 18 SEER2 Ductless Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V
$1,278.00
In Stock
Sold out
CODE: WYS024GMFI20RL-10
Categories: Best Sellers!
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
- Description
- Shipping and Refund
Overview
Summary
- High Efficiency Quantum Series Inverter+ ductless mini split heat pump system
- Cooling capacity: 24,000 BTU/H with 18 SEER2 / 9 EER2 efficiency
- Heating capacity: 24,000 BTU/H with 8.6 HSPF2 / 3.03 COP2 efficiency
- Voltage: 208~230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- AHRI Estimated Annual Operating Costs:
- Cooling: $176.00
- Heating: $518.00

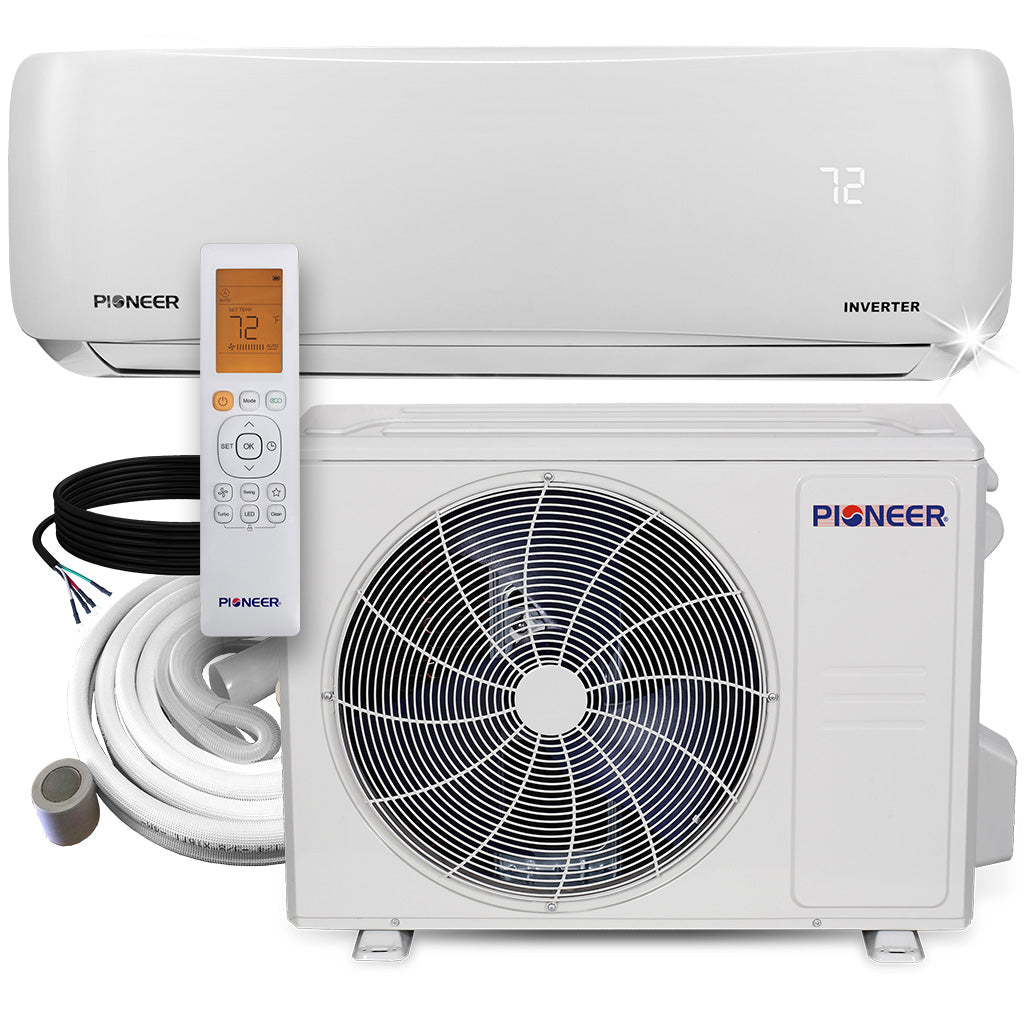

What's Included

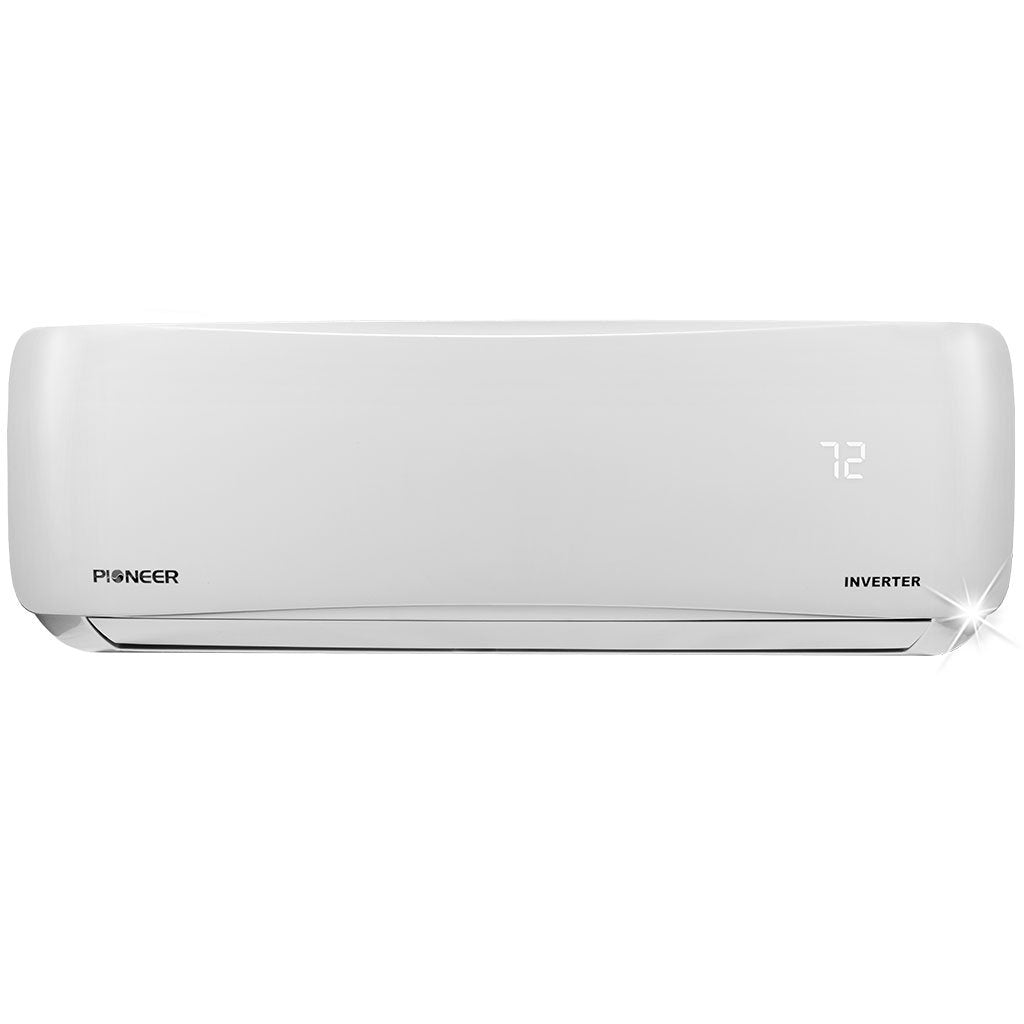

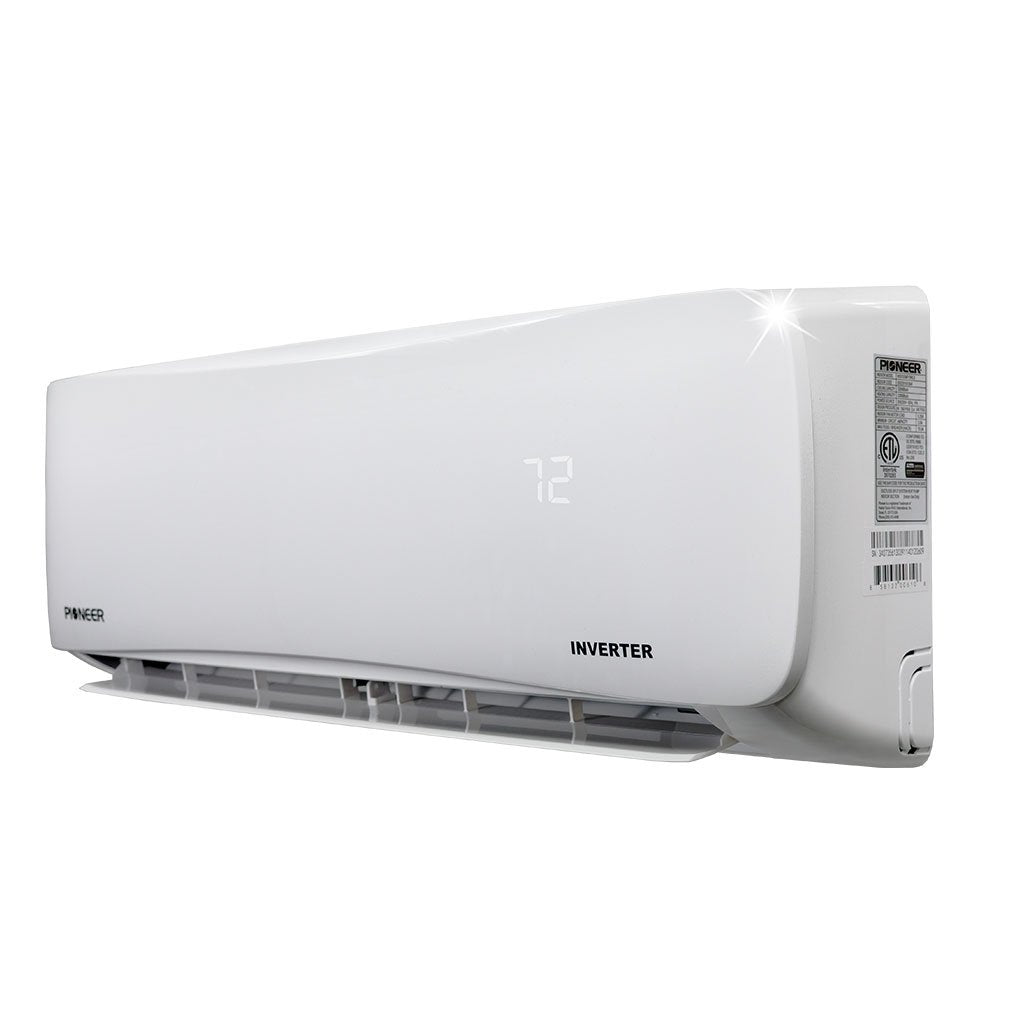

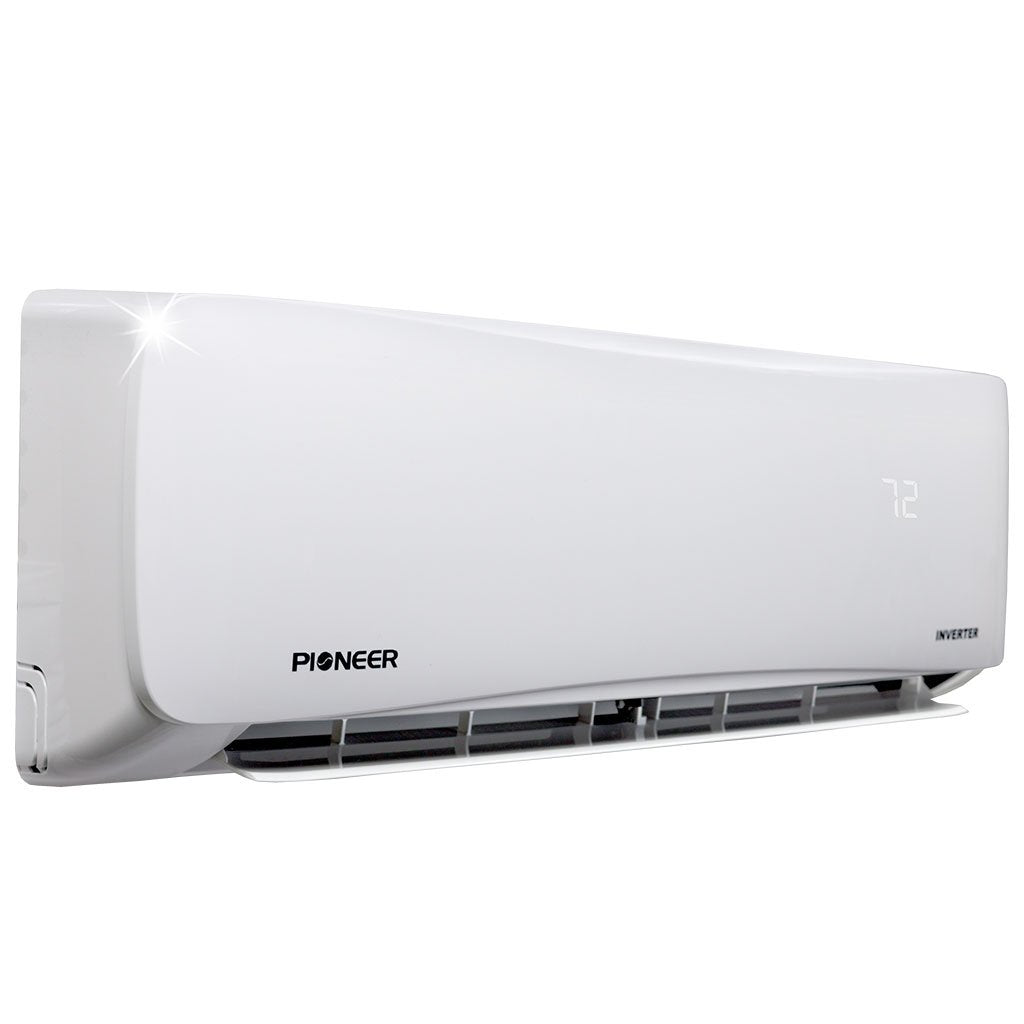

- Indoor Unit

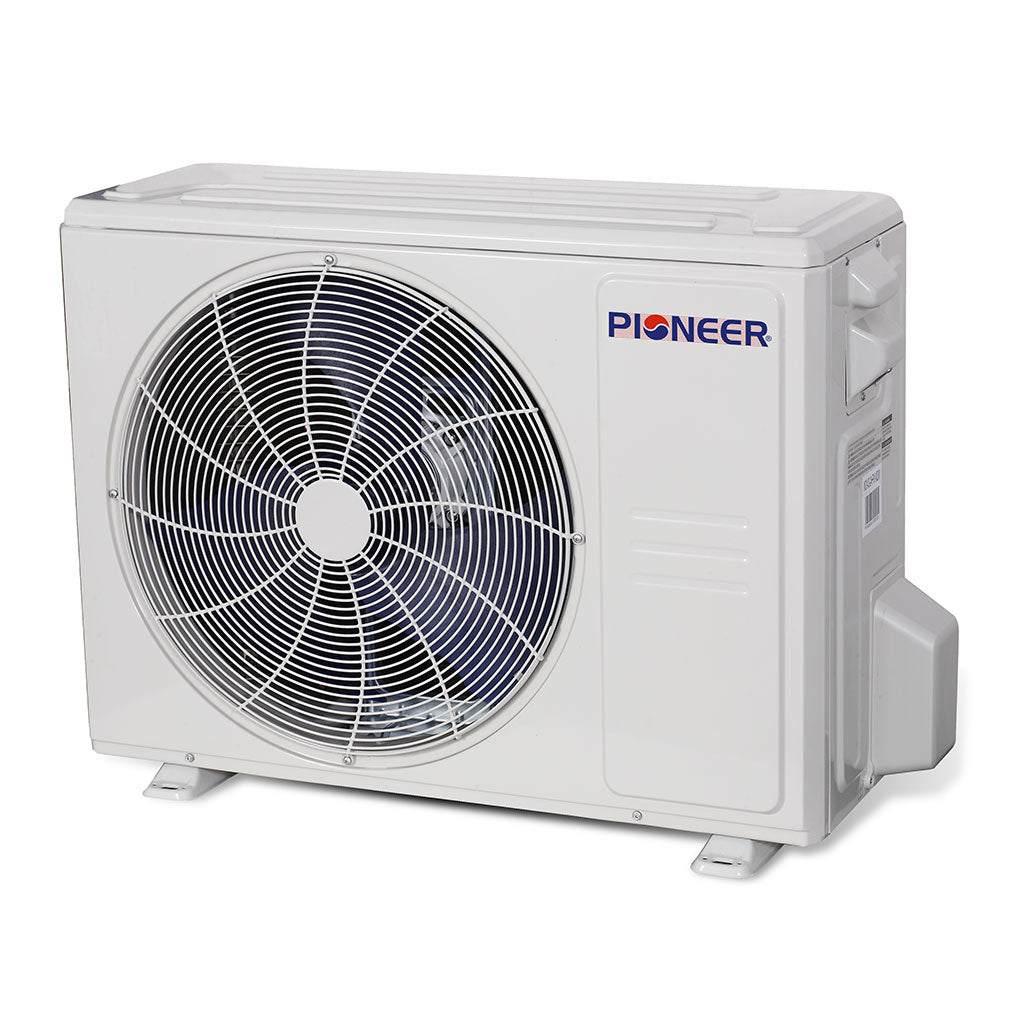

- Outdoor Unit

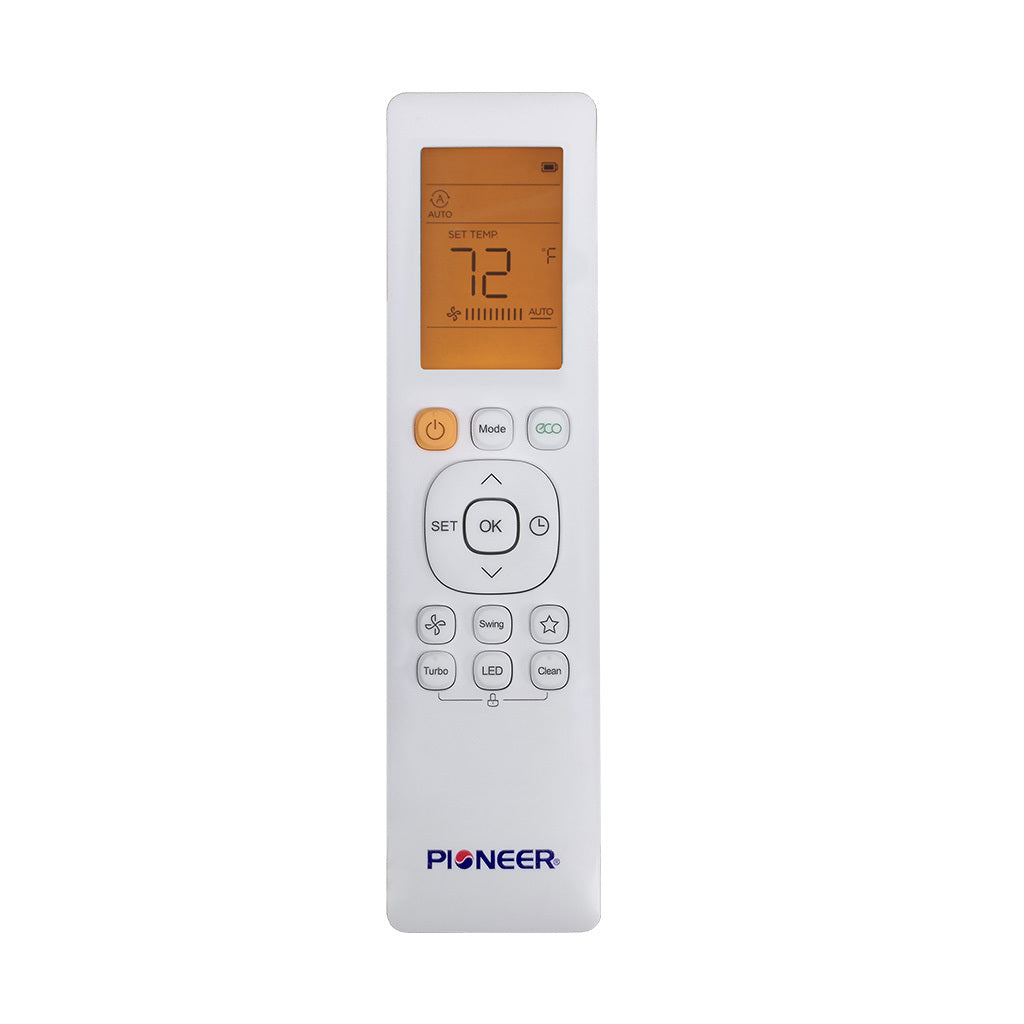

- Wireless Remote Control

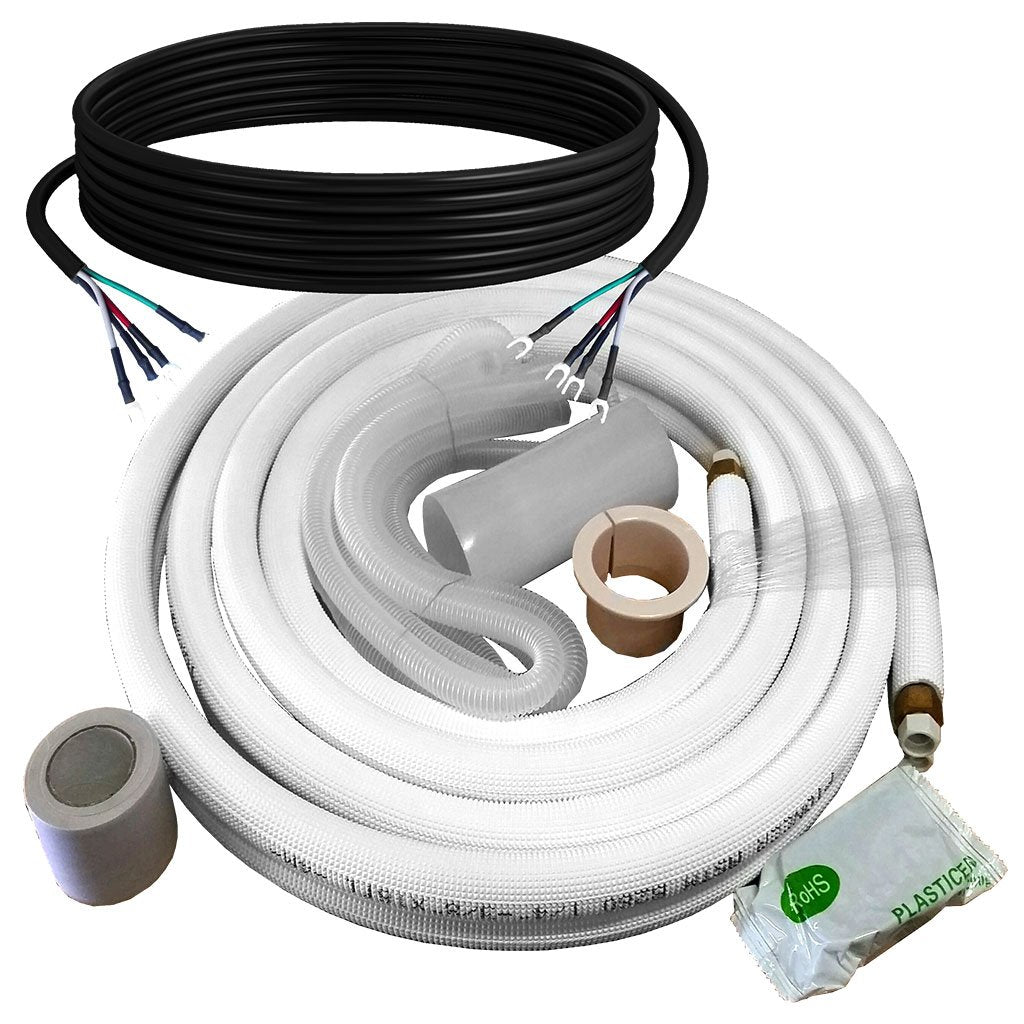

- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Features
[[FEATURES]]Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 24,000 BTU/h
- Cooling Capacity Range: 6,704~25,300 BTU/h
- Cooling SEER2: 18.0 BTU/W.h
- Cooling EER2: 9.0 BTU /W.h
- Heating Rated Capacity: 24,000 BTU/h
- Heating Capacity Range: 6,900~28,100 BTU/h
- Heating HSPF2 (Region IV/V): 8.6 / 6.6 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.03 / 1.78 W/W
- Refrigerant Type: R410A/63
- Suitable Area: 650~900 Sq.F
Indoor Unit Data
- Model Number: WS024GMFI20HLD
- Air Flow (Hi/Med/Lo): 588 / 450 / 353 CFM
- Sound Level (Hi/Med/Lo): 45.5 / 39.5 / 35.0 dB(A)
- Net Dimensions (WDH): 42"-1/2 x 8"-7/8 x 13"-1/8 Inches
- Carton/Shipping Dimensions (WDH): 45"-1/2 x 16"-3/8 x 12"-5/8 Inches
- Net / Gross Weight: 30 / 38.6 lbs
Outdoor Unit Data
- Model Number: YN024GMFI20RPD
- Sound Level: 60.0 dB(A)
- Net Dimensions (WDH): 35" x 13"-1/2 x 26"-1/2 Inches
- Carton Dimensions (WDH): 39"-1/8 x 15"-5/8 x 29"-1/8 Inches
- Net / Gross Weight: 97.9 / 104.60 lbs
- Breaker Needed: 20A (double-pole)
