Metra 95-5869CH Ford F-Series Radio Installation Kit

Upgrade the factory radio in your compatible Ford F-Series truck with the Metra 95-5869CH TurboTactile™ Dash Kit.

The 95-5869CH is designed specifically for select 2015–2022 Ford F-Series trucks equipped with factory single-zone climate controls and a color screen. It allows installation of a standard 4-inch-tall Double-DIN aftermarket stereo while retaining the factory climate-control buttons and maintaining a clean, factory-style appearance.

This is an excellent solution for Ford F-150 and compatible Super Duty owners who want to replace their original radio with an aftermarket touchscreen receiver offering features such as Apple CarPlay, Android Auto, Bluetooth, upgraded audio processing, additional RCA outputs, or camera capability, depending on the radio selected.

RETAINS FACTORY CLIMATE CONTROLS

Replacing the factory radio shouldn't mean losing the controls built into your dashboard.

The Metra 95-5869CH is designed to accommodate and retain the factory single-zone climate controls, allowing the completed installation to maintain a factory-style layout.

Metra also includes a small circuit board to retain the factory passenger airbag light lens.

DOUBLE-DIN AFTERMARKET RADIO INSTALLATION

The 95-5869CH accommodates a standard 4-inch-tall Double-DIN aftermarket radio, making it ideal for installing a modern touchscreen stereo.

It can also accommodate an ISO Single-DIN radio when used with Metra pocket 88-00-9004, which is sold separately.

That gives Ford truck owners the flexibility to choose from compatible aftermarket radios from Pioneer, Kenwood, JVC, Sony and other car-audio manufacturers.

OEM-STYLE MATTE BLACK FINISH

Metra manufactures the kit from high-quality ABS plastic and gives it a scratch-resistant matte-black finish designed to match the original look and feel of the Ford dashboard.

The result is a much cleaner installation than simply adapting an aftermarket stereo into the factory opening.

KEY FEATURES

• Metra 95-5869CH
• TurboTactile™ radio installation kit
• Designed for select 2015–2022 Ford F-Series trucks
• Specifically for single-zone climate-control applications
• Designed for vehicles with a factory color screen
• Standard 4" Double-DIN radio provision
• ISO Single-DIN capability with separately sold pocket
• Retains factory climate-control buttons
• Retains factory passenger airbag light lens with included circuit board
• High-quality ABS plastic construction
• Scratch-resistant matte-black finish
• Factory-style appearance
• Includes radio mounting brackets
• Includes required installation hardware
• Detailed installation instructions included
• Metra 1-year limited warranty

VEHICLE FITMENT

According to Metra's current detailed installation documentation, the 95-5869CH is designed for:

Ford F-150 — 2015–2020*
Ford F-250 XL — 2017–2022*
Ford F-350 XL — 2017–2022*
Ford F-450 XL — 2017–2022*
Ford F-550 XL — 2017–2022*

*With factory single-zone climate controls.

IMPORTANT FITMENT NOTICE

This is the SINGLE-ZONE climate-control version.

If the truck has dual-zone climate controls, the customer should look at the Metra 95-5870CH instead.

Factory equipment, screen size, navigation and trim configuration can affect compatibility. Customers should verify their exact year, model, trim and factory radio configuration before ordering.

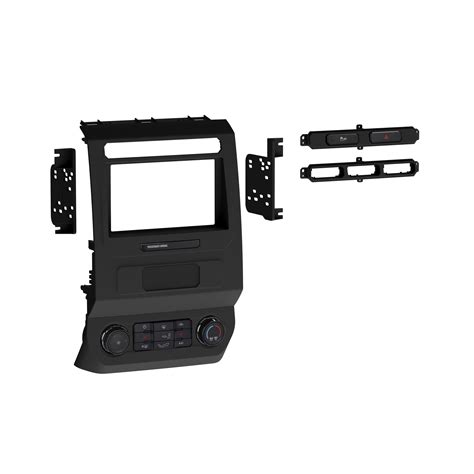

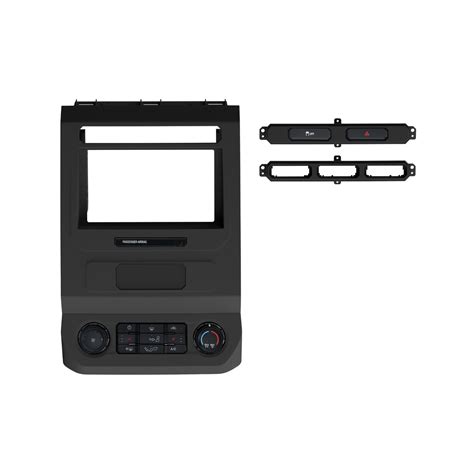

WHAT'S INCLUDED

Metra's current instructions list the following kit components:

• Radio trim panel
• Lower radio trim panel
• Radio mounting brackets
• Back cover
• 2-button and 3-button trim panels
• Nine #4 × 1/2" Phillips screws
• Six #4 × 3/8" Phillips screws
• Seven panel clips
• Installation instructions

Aftermarket radio is NOT included.

The wiring interface and antenna adapter are sold separately. Metra specifically lists the 40-EU10 antenna adapter in its current documentation.
