iDatalink Maestro KIT-EDG1 Ford Edge Radio Replacement Kit

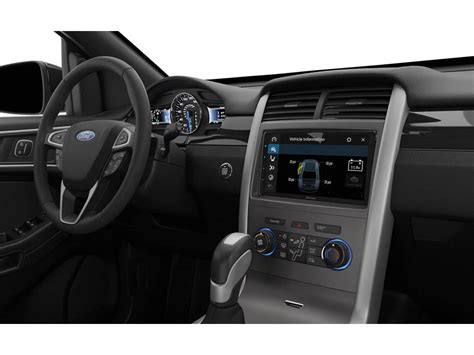

Upgrade the factory stereo in a compatible 2011–2014 Ford Edge while maintaining a clean, factory-style dashboard with the iDatalink Maestro ADS KIT-EDG1 radio replacement kit.

The KIT-EDG1 is engineered for select Ford Edge vehicles equipped with the factory 4.3-inch screen. It allows installation of a compatible Double-DIN, floating-screen, or supported 8" or 9" modular aftermarket radio while providing the vehicle-specific dash components and wiring needed for proper integration.

When paired with the required iDatalink Maestro RR or RR2 interface and a compatible aftermarket stereo, the EDG1 provides a much more integrated radio upgrade than a basic dash kit.

MADE SPECIFICALLY FOR 2011–2014 FORD EDGE

The ADS KIT-EDG1 is designed specifically around the dashboard and electronics of compatible:

2011 Ford Edge
2012 Ford Edge
2013 Ford Edge
2014 Ford Edge

The current manufacturer description specifies vehicles with the 4.3" OEM screen and automatic climate controls. Because Ford Edge factory equipment can vary, verify the vehicle's exact factory radio, screen, climate-control and audio configuration before ordering.

INSTALL DOUBLE-DIN, FLOATING OR MODULAR RADIOS

Unlike a basic Double-DIN trim kit, the Maestro EDG1 supports several modern aftermarket-radio formats.

Depending on the compatible receiver selected, the kit can accommodate:

• Standard Double-DIN radios
• Floating-screen radios
• Supported 8-inch modular radios
• Supported 9-inch modular radios

That makes the KIT-EDG1 an excellent starting point for upgrading an older Ford Edge with modern features available on compatible aftermarket receivers, such as Apple CarPlay, Android Auto, Bluetooth, touchscreen controls, upgraded audio processing and additional camera functionality.

RETAIN IMPORTANT FACTORY FEATURES

When properly installed with the required Maestro RR or RR2 and compatible radio, the EDG1 integration system can retain important factory functions.

Published installation information documents retention/integration of features including steering-wheel controls, climate controls and factory camera functionality, with supported vehicle information and factory settings available depending on the exact vehicle and radio configuration.

This is one of the biggest advantages of using the Maestro solution instead of treating the Ford Edge like an older vehicle with a simple radio harness.

COMPLETE VEHICLE-SPECIFIC INSTALLATION KIT

The KIT-EDG1 includes much more than a plastic radio bezel.

The current manufacturer package includes a head-unit-adapter-ready T-harness, radio panel, steel radio mounting brackets and replacement USB hub.

The combination provides the physical and electrical foundation needed to integrate a compatible aftermarket receiver into the Edge.

KEY FEATURES

• iDatalink Maestro KIT-EDG1
• ADS / Automotive Data Solutions radio replacement solution
• Designed for select 2011–2014 Ford Edge
• Designed around the factory 4.3" OEM screen
• Supports compatible Double-DIN radios
• Supports compatible floating-screen radios
• Supports supported 8" and 9" modular radios
• Factory-style replacement radio panel
• Vehicle-specific T-harness
• Steel radio mounting brackets
• Replacement USB hub
• Integrates with vehicle electronics through Maestro
• Can retain supported steering-wheel controls
• Can retain supported climate-control functionality
• Can retain supported factory camera features
• Allows supported vehicle information and functions to work through compatible radios
• Designed for a clean, integrated Ford Edge radio upgrade

WHAT'S INCLUDED

The current manufacturer listing specifies:

1 × Vehicle-specific radio panel
1 × Head-unit-adapter-ready T-harness
Steel radio mounting brackets
Replacement USB hub
Associated KIT-EDG1 installation components

IMPORTANT — MAESTRO RR/RR2 NOT INCLUDED

The Maestro RR or RR2 interface module is required and sold separately.

A compatible aftermarket radio is also required and sold separately. The appropriate head-unit adapter for plug-and-play connection is sold separately as well.

I would put this information prominently on the East Car Audio product page so a customer doesn't assume the RR/RR2 module comes inside the EDG1 box.

VEHICLE FITMENT

Ford Edge — 2011
Ford Edge — 2012
Ford Edge — 2013
Ford Edge — 2014

Factory Screen: 4.3"

Manufacturer-listed application: 4.3" OEM screen with automatic climate controls.

FITMENT WARNING

Do not purchase based only on the vehicle year.

Ford Edge factory-radio configurations vary. Verify the factory screen, climate controls, factory amplifier/audio package, camera equipment and replacement-radio compatibility before ordering.

Also, don't confuse this with the KIT-EDG2. East Car Audio's current KIT-EDG2 listing is for later 2015–2020 Ford Edge applications with the 4" factory screen.

WHY BUY THE ADS KIT-EDG1 FROM EAST CAR AUDIO?

Looking for the best place to buy the iDatalink Maestro KIT-EDG1 for a 2011–2014 Ford Edge?

Shop East Car Audio.

East Car Audio specializes in aftermarket car audio and vehicle integration products, so customers can purchase the ADS KIT-EDG1 alongside the other equipment needed to complete a Ford Edge stereo upgrade, including compatible aftermarket radios, Maestro integration products, amplifiers, speakers, subwoofers and installation accessories.

⚠️ REQUIRES MAESTRO RR OR RR2 — SOLD SEPARATELY
