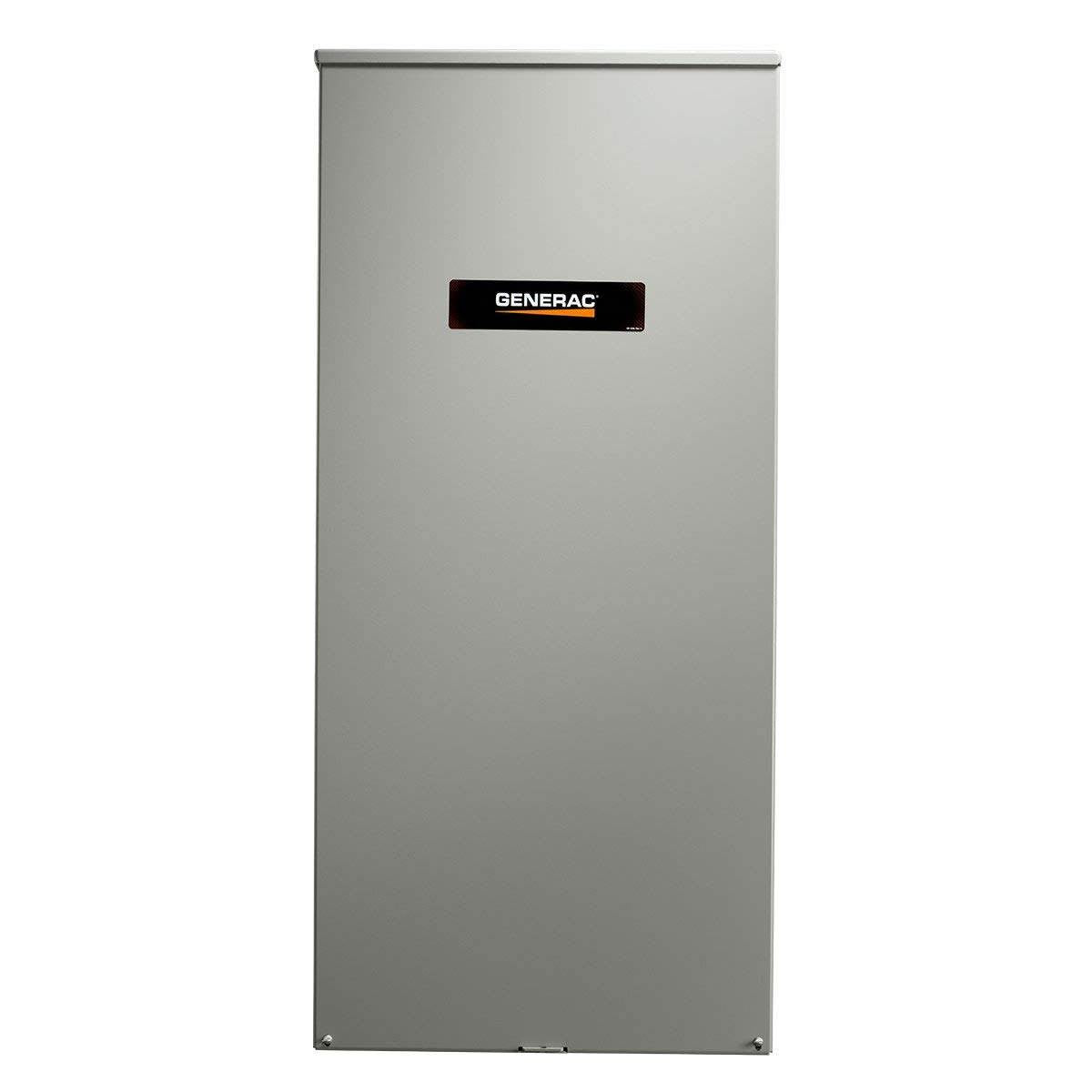

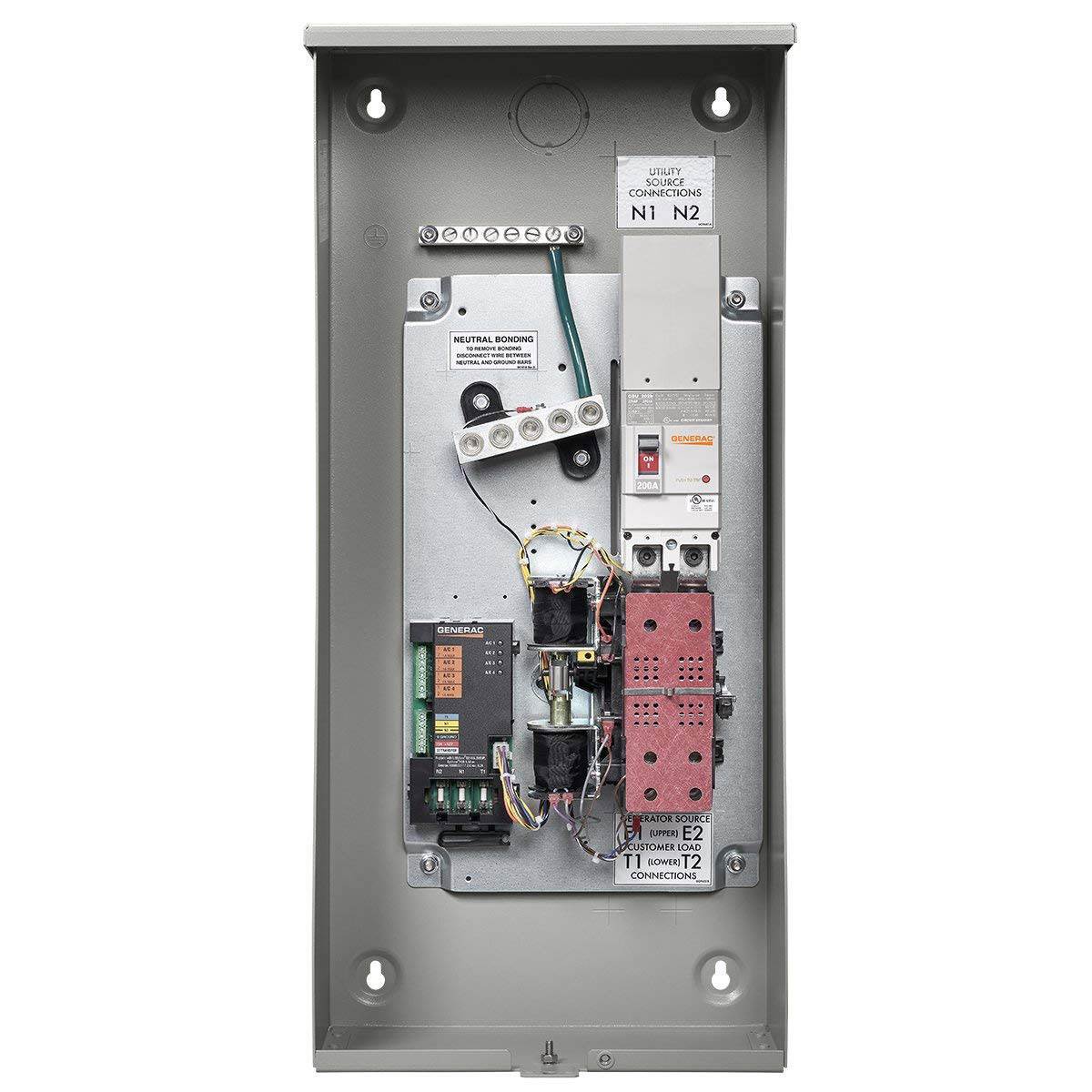

Generac 200 Amp Single Phase Automatic Smart Transfer Switch w/ Power Management

When the power goes out, you need a way to respond quickly. The Generac Automatic Smart Transfer Switch makes that easy. It can detect when you've had an outage and kick your generator into operation. That way there's no need to fumble around in the dark with settings yourself.

This transfer switch can manage up to 4 individual HVAC loads with no additional equipment. When used alongside Smart Management Modules, up to 8 more loads can be managed too. With an aluminum weather-proof enclosure, this Transfer Switch is built to last for years of service.

• For use with single phase generators that use an Evolution or Nexus controller
• Can be used alongside Generac Smart Management modules
• Able to manage up to 4 individual HVAC loads with no additional equipment
• Controller at the generator automatically operates timing, sensing, exercising functions, and transfer commands
• Made to work for years of service
• Specifications:
• Model: RXSW200A3
• Amps: 200

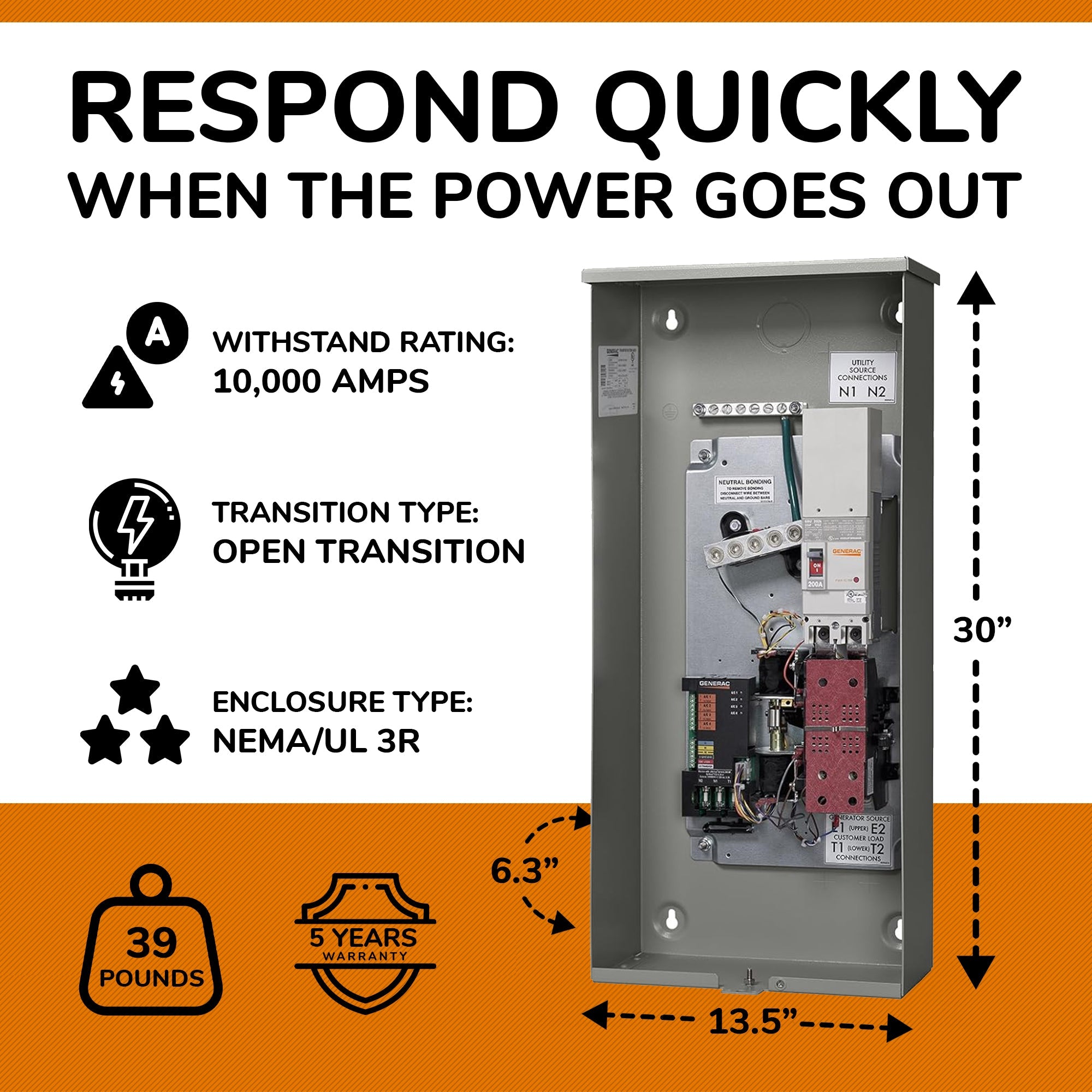

• Load transition type (automatic): Open transition service rated
• Enclosure type: NEMA/UL 3R
• UL rating: UL/CUL
• Withstand rating: 10,000 amps
• Lug range: 250 MCM
• #6
• Color: Gray
• Dimensions (L x W x H): 6.3 x 13.5 x 30 inches
• Weight: 39 pounds
• Manufacturer warranty: 5-year warranty
