RICH SOLAR

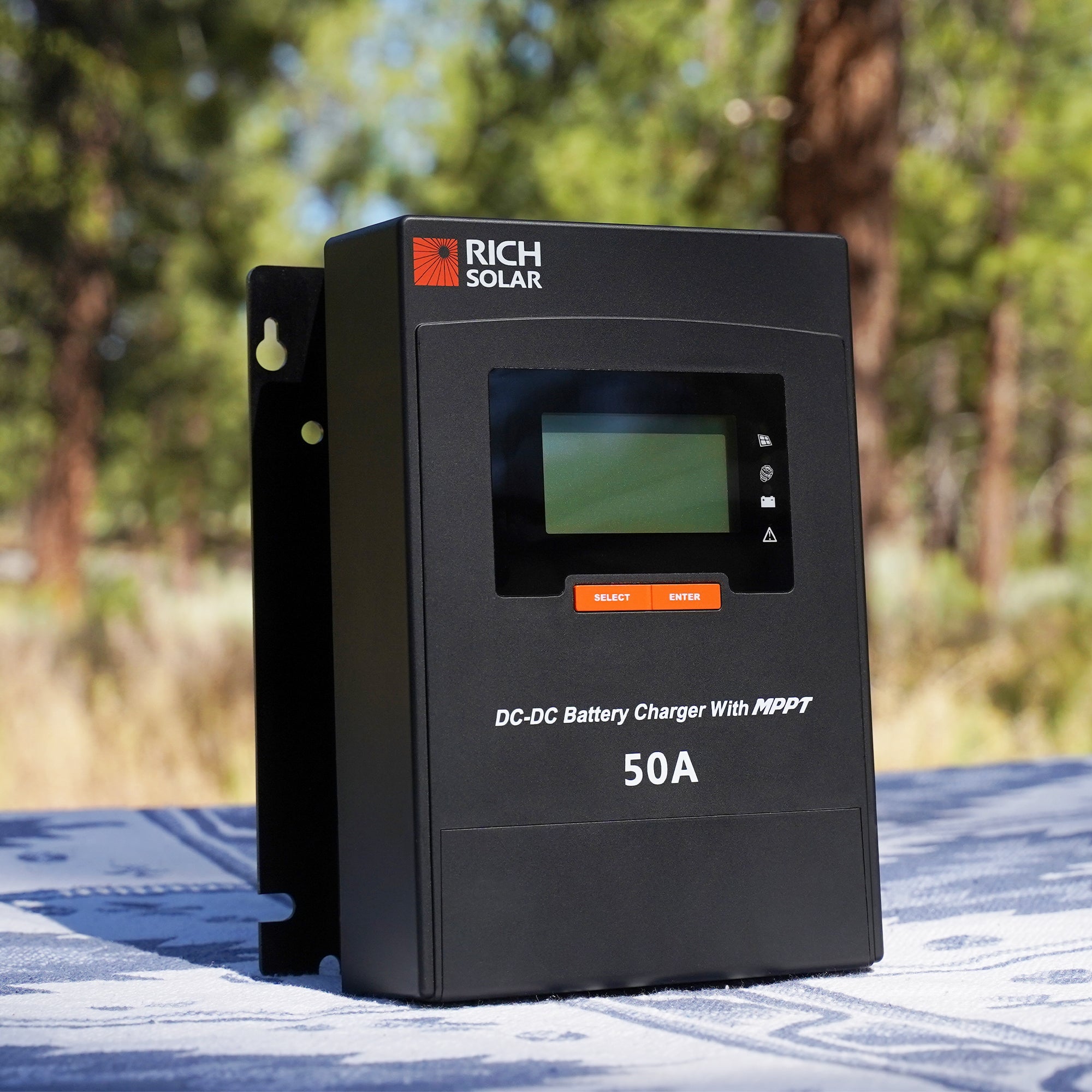

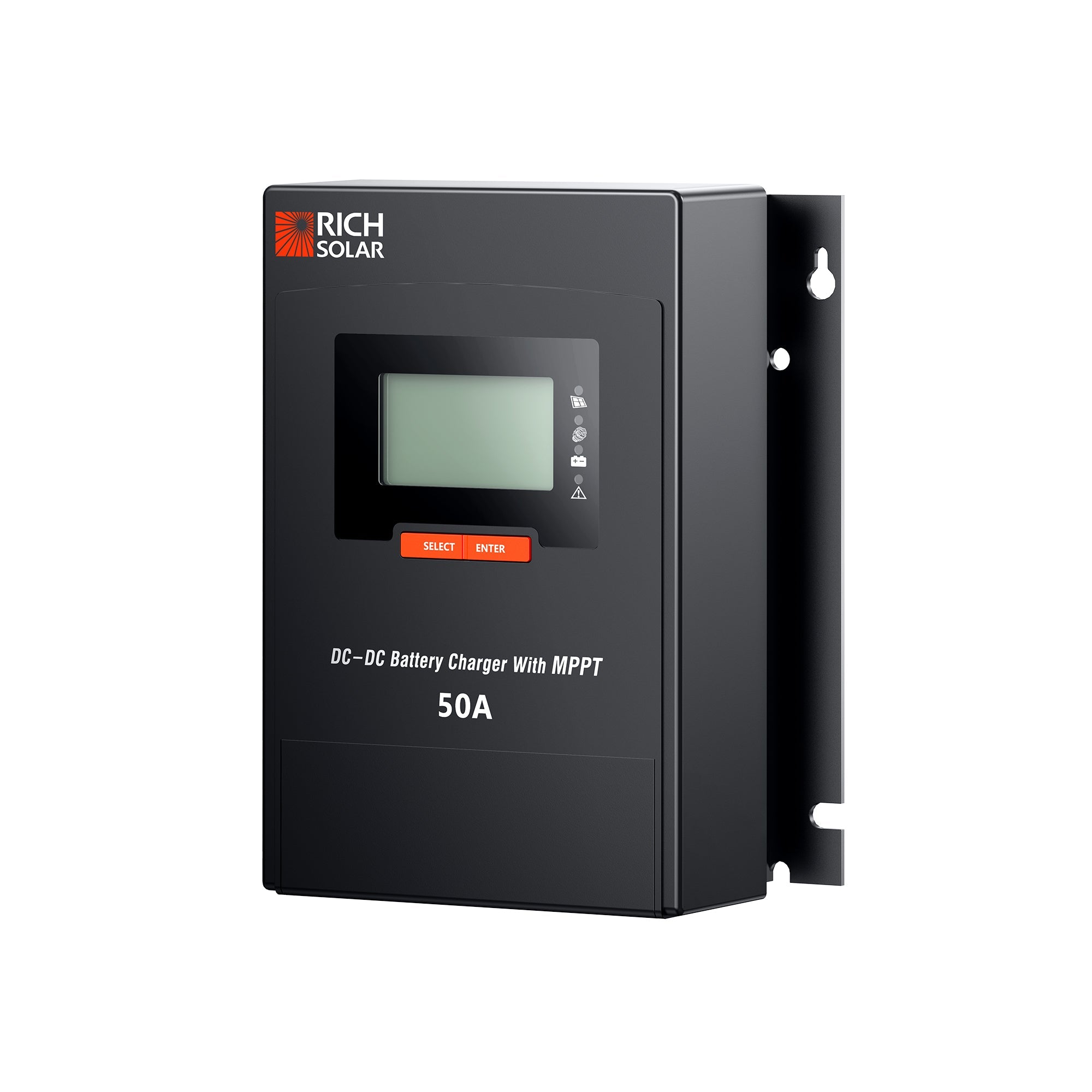

BRAVO 50 DC | 50 Amp DC-DC Solar Charge Controller with MPPT | Premium 50A 12V/24V DC-DC Solar Controller with MPPT for RVs, Trailers, Campers, Vans, Boats, Off-Grid | #1 Ranked DC to DC Solar Controller
$249.99
In Stock
Sold out
CODE: RS-MPPT50DC
Categories: Best Sellers!
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
- Description
- Shipping and Refund
The BRAVO 50 DC is a high-quality charging device designed specifically for charging lithium batteries from a vehicle's alternator. This charger utilizes Maximum Power Point Tracking (MPPT) technology to optimize the charging efficiency and ensure maximum power transfer from the alternator to the battery, giving you the comfort and confidence to go fully off-grid!
FEATURES
- Can connect to PV and alternator
- Charges both leisure and starter battery
- MPPT with up to 99.9% efficiency
- Supports TTL communication
Tech Specs
PV INPUT
| Max. Voltage of Open Circuit: | 55Vdc |
| MPPT Voltage Range: | 17-36Vdc |
| Max PV Input Current: | 45A |
| Max PV Input Power: | 800W |
BATTERY TYPE - Li-ion / Lead Acid / User Defined
| Rated Battery Voltage: | 12Vdc |
| Battery Voltage Range: | 9-17Vdc |
| Max MPPT Charging Current: | 50A |
| Max Alternator Charging Current: | 60A |
| MPPT Charging Mode: | Buck |
BATTERY TYPE - Lead Acid
| Rated Battery Voltage: | 12Vdc |
| Max MPPT Charging Voltage: | 13.8V |
| Max MPPT Charging Current: | ≤25A |
| Max Alternator Input Voltage (Conventional): | 13.2-16Vdc |
| Max Alternator Input Voltage (Euro 6 Standard): | 12-16Vdc |
| Alternator Charging Mode: | Buck, Boost, Buck-Boost |
EFFICIENCY
| MPPT Tracking Efficiency: | >99% |
| Max Charging Conversion Efficiency: | 98% |
COMMUNICATION
| Embedded Interfaces: | TTL, Remove Switch |
GENERAL
| Weight: | 4.7 lbs |
| Dimensions: | 8.7 x 6.9 x 3.2 inches |
| Protection Degree: | IP32 |
| Operating Temperature Range: | -35°C~65°C（-31℉～149℉) |
CERTIFICATION
| Safely: | IEC62109 |
| EMS: | IEC61000, FCC sDoC |
| Rohs: | YES |
Specification & User Manual
50 AMP DC TO DC LITHIUM BATTERY ALTERNATOR CHARGER WITH MPPT
