FEATURES
- Automatically detects 12V or 24V DC system voltages.
- Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
- Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
- Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
- LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
- Features diverse load control; also capable of charging over-discharged lithium batteries.
- Die-cast aluminum design allows for efficient heat dissipation.
- RS232 port to communicate with BT-1 Bluetooth module.
Tech Specs
SPECIFICATIONS
| ATTRIBUTE | VALUE |
| Rated Battery Current: | 40A |
| Rated Load Current: | 20A |
| Max. PV Input Short Current: | 50A |
| Max. Battery Voltage: | 32V |
| Max Solar Input Voltage: | 100VDC |
| Charge circuit voltage drop: | = 0.26V |
| Discharge Circuit Voltage drop: | = 0.15V |
| Working Temperature: | -35°C to +45°C |
| Max Terminal Size: | 8AWG |
| Rated Load Current: | 10% to 90% NC |
| Overall Dimension: | 9.37 x 6.81 x 2.85 in |
| Net Weight: | 4.41 lb |
Specification & User Manual

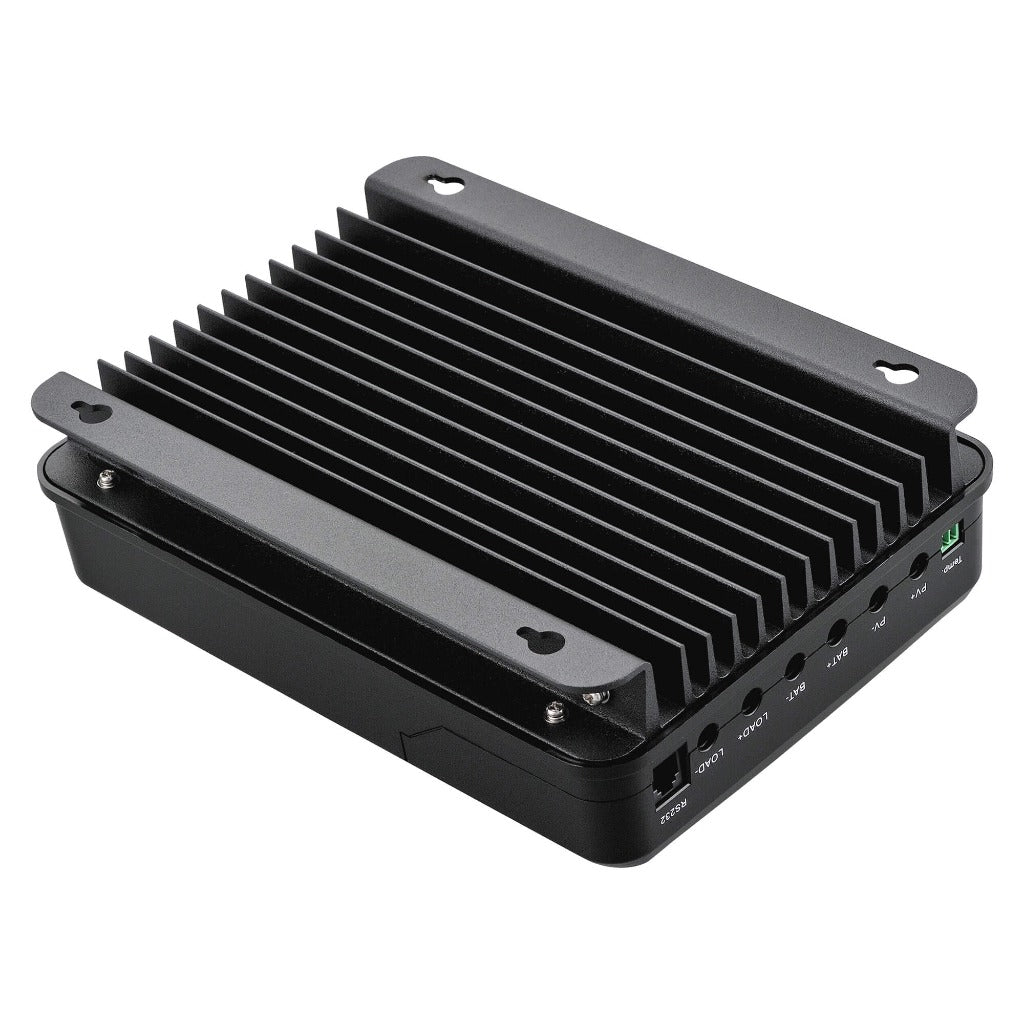

40 AMP MPPT SOLAR CHARGE CONTROLLER
