FEATURES
- Automatically detects 12V or 24V DC system voltages.
- Compatible with various deep cycle battery options:Sealed, Gel, Flooded, and Lithium.
- Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
- Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.

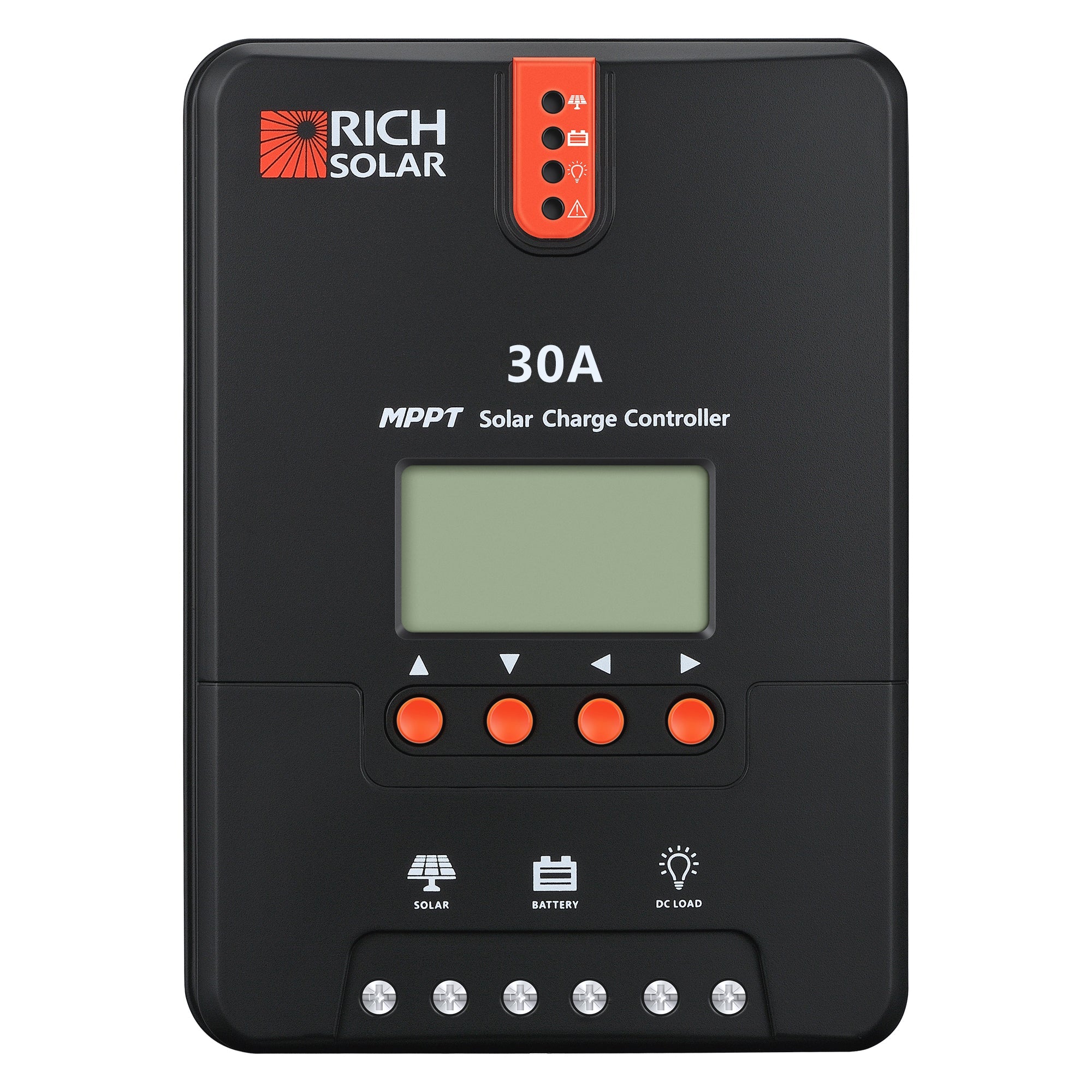

- LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
- Features diverse load control; also capable of charging over-discharged lithium batteries.

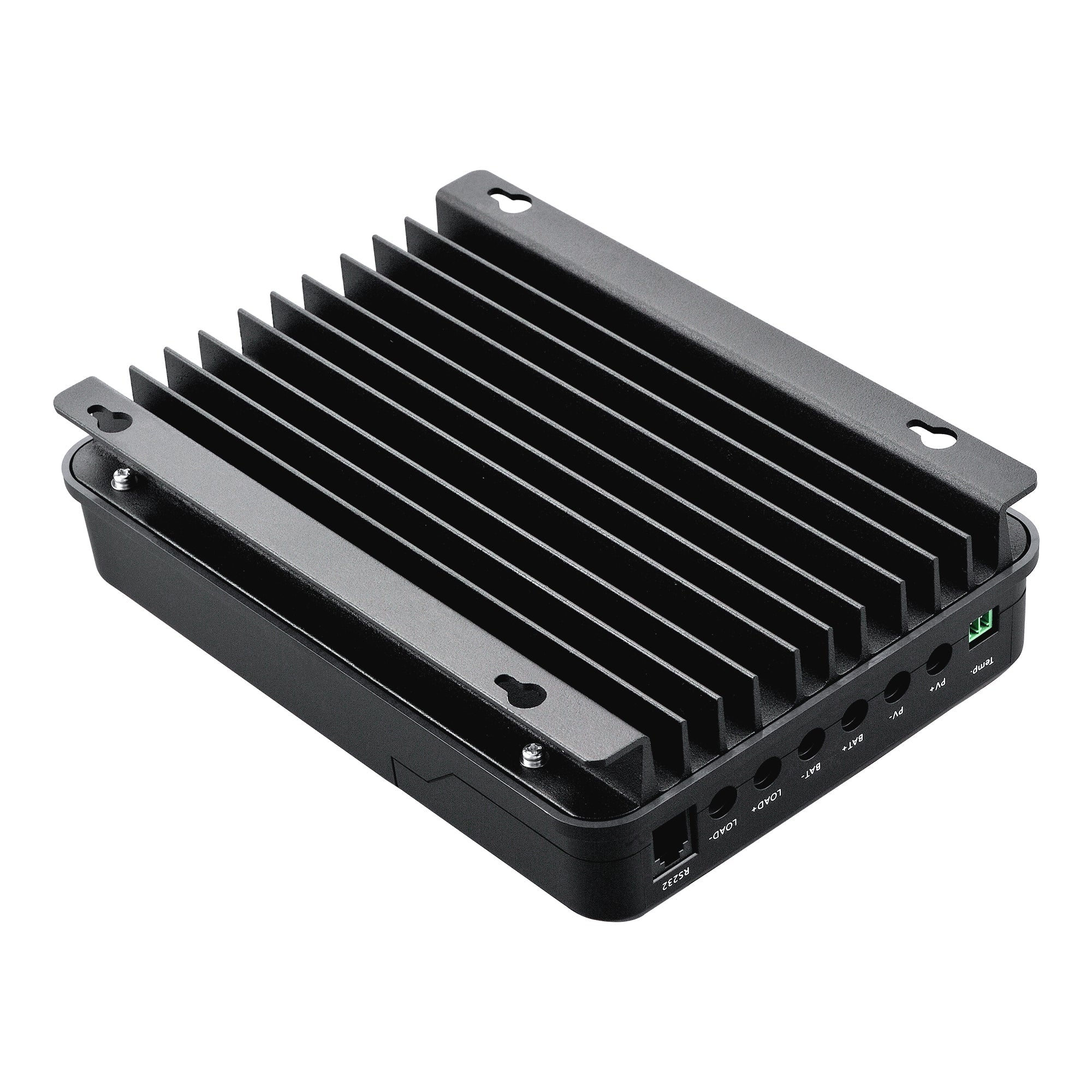

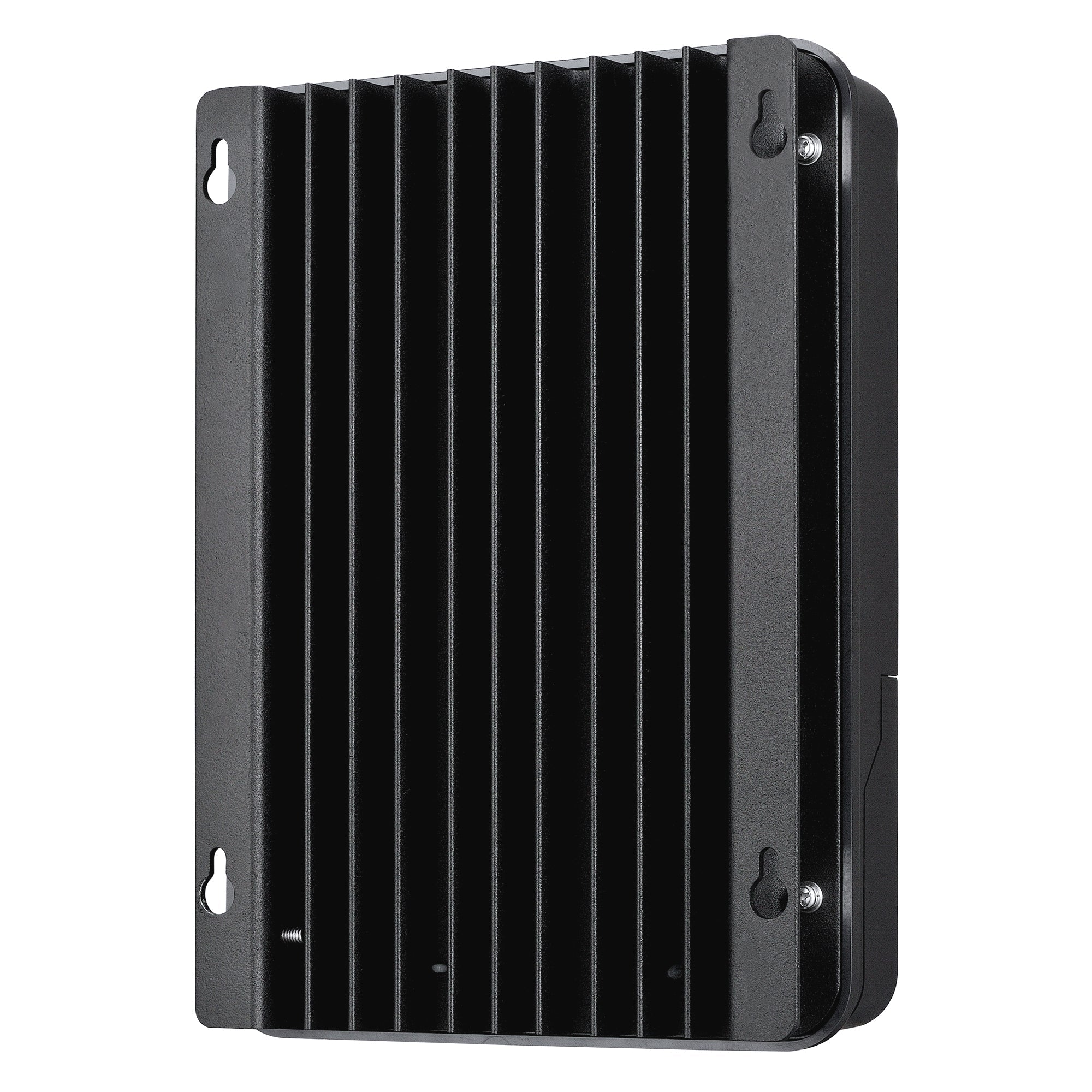

- Die-cast aluminum design allows for efficient heat dissipation.

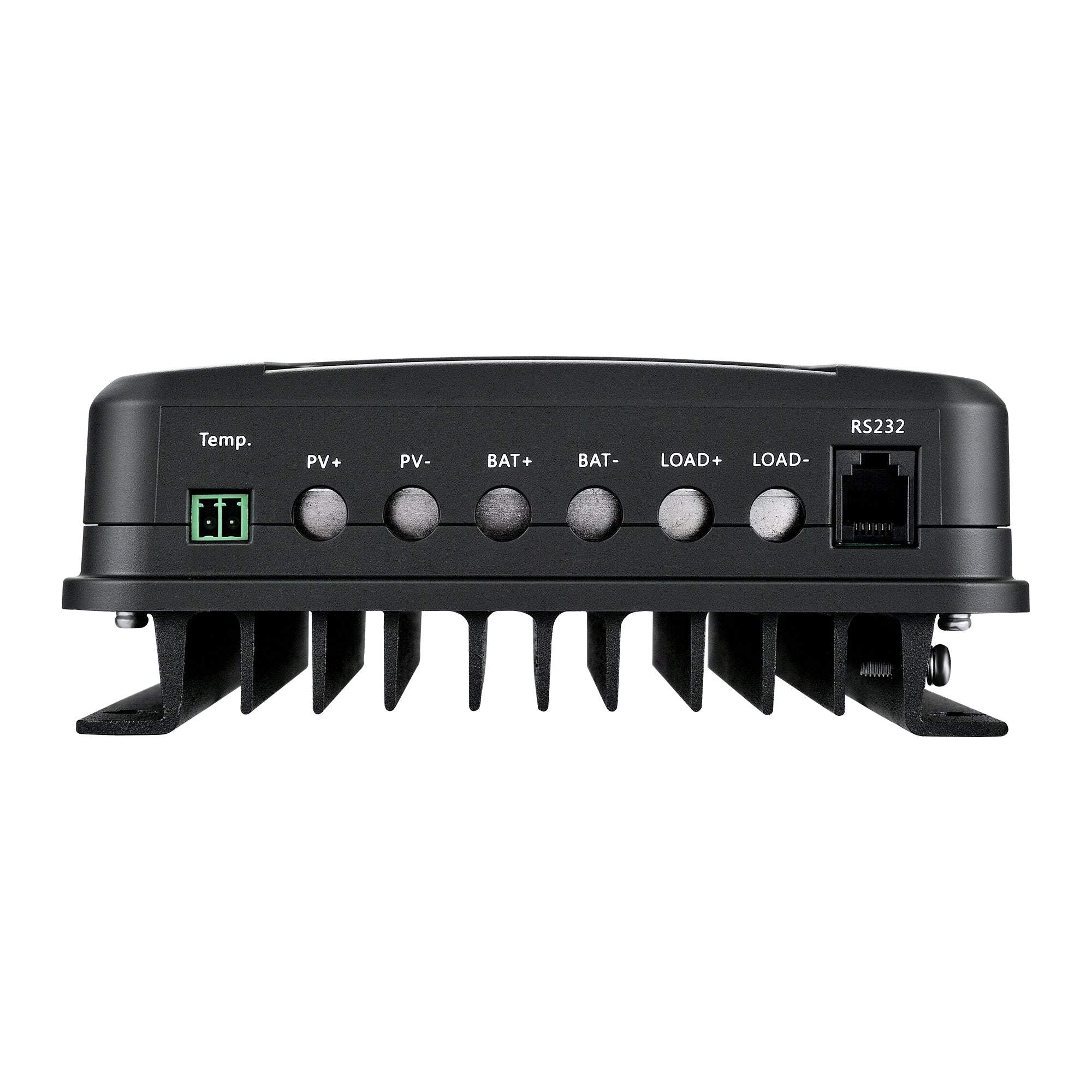

- RS232 port to communicate with BT-1 Bluetooth module.
- Advanced maximum power point tracking algorithm can quickly locate the best working point in the l-V curve to significantly improve the system’s energy efficiency.
Tech Specs
SPECIFICATIONS
| ATTRIBUTE | VALUE |
| Nominal System Voltage: | 12V/24V Auto |
| Rated Charging Current: | 30A |
| Rated Load Current: | 20A |
| Max Solar Input Voltage: | 100V(25?), 90V(-25?) |
| Discharge Circuit Voltage drop: | = 0.15V |
| Net Weight: |
4.41lbs |
| Overall Dimension: | 9.37 x 6.81 x 2.85in |
| Battery Wire Diameter: |
6mm² |
| Load Wire Diameter: |
5mm² |
| No-load Loss: |
0.7W to 1.2W |
| Battery Voltage: |
9V to 35V |
| Max. Power Point Voltage Range: |
Battery Voltage +2V to 75V |
| Max. Photovoltaic System Input Power: |
400W/12V, 800W/24V |
| Conversion Efficiency: |
=98% |
| MPPT Tracking Efficiency: |
>99% |
| Temperature Compensation Factor: |
-3mv//2V Default |
| Operating Temperature: |
-35°C to +45°C |
| Protection Degree: |
IP32 |
| Communication Method: |
RS232 |
| Altitude: |
=3000m |
| Max. Capacitive Load Capacity: |
1000uF |
