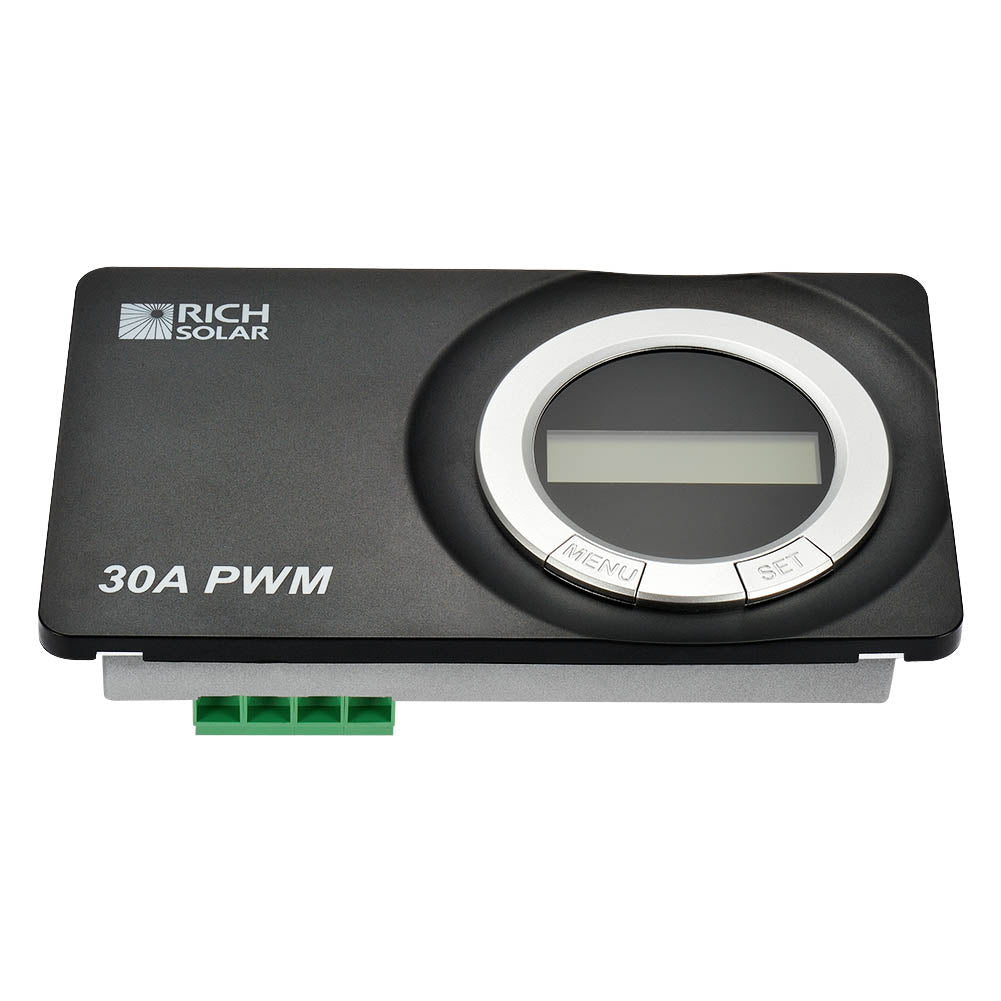

30 Amp Flush Mount PWM Solar Charge Controller | 30A 12V/24V PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Top Rated
$79.99
In Stock
Sold out
CODE: RS-PWM30RV
Categories: Best Sellers!
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
- Description
- Shipping and Refund
The 30 Amp Flush Mount PWM Solar Charge Controller is a top-rated controller designed to regulate and manage the charging process of your solar panels. It's specifically designed for solar systems with a maximum current capacity of 30 amps, making it suitable for small to medium-sized solar installations.
FEATURES
- Flush mounted and embedded installation design
- High quality and low failure rate components (ST/IR) to ensure the product lifetime
- 3-Stage intelligent PWM charging: Bulk, Boost/Equalize and Float
- Battery type: Sealed, Gel, Flooded
- Real-time energy statistics feature

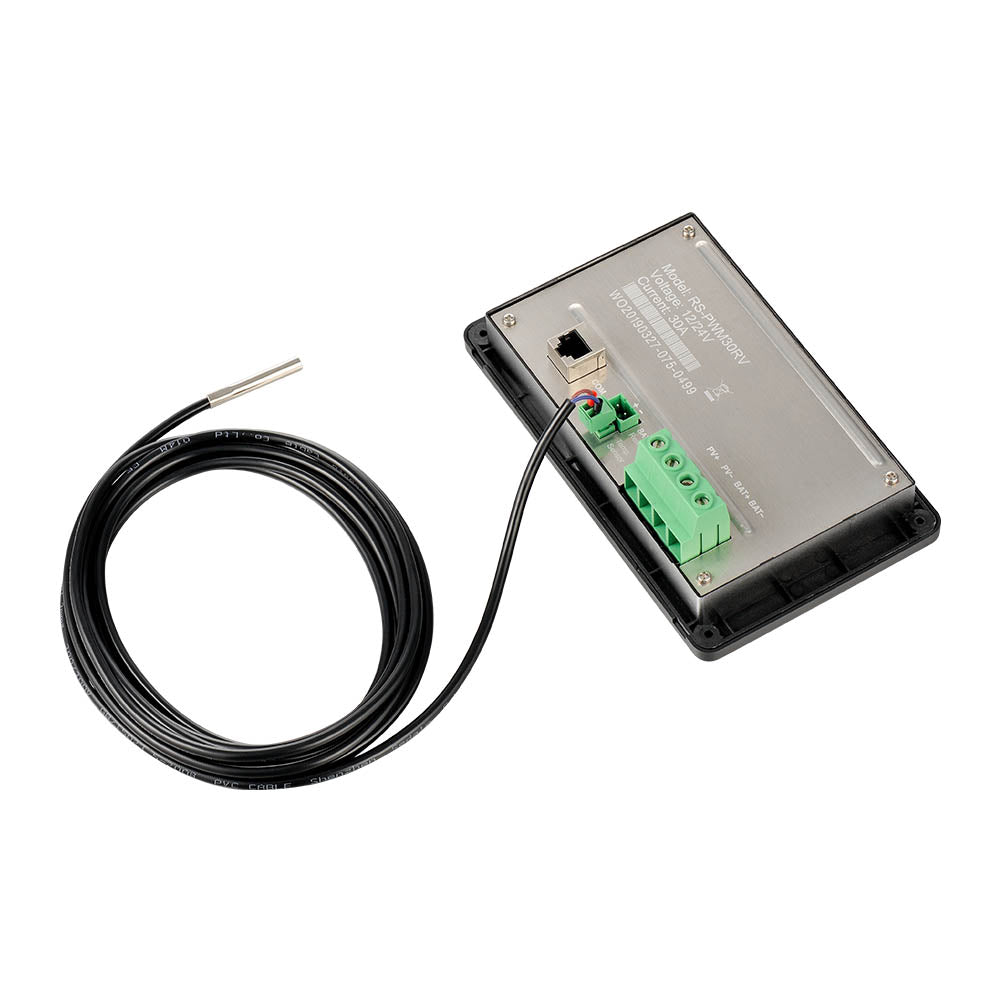

- Battery temperature compensation feature
- Digital LCD monitor for informative display of operational parameters and fault messages
- Voltage drop and temperature compensation sampling interface design
- RS485 communication port with Modbus protocol, and short circuit protection for 5V/200mA power supply
- Multiple communication peripherals
- Rated charging current at working temperature without de-rating
- Extensive electronic protections
- Monitor and set the parameters via PC software or APP
Specifications
| Electrical Specifications | |
|---|---|
| Nominal Voltage: | 12/24VDC or Auto |
| Battery Input Voltage Range: | 8V～32V |
| Rated Charge Current: | 30A |
| Max. PV Short Circuit Current: | 30A |
| Max. PV Open Circuit Voltage: | 50V |
| Battery Type: | Sealed(default)/Gel/Flooded |
| Self-consumption: | ≤4.2mA/12V;≤2.6mA/24V |
| Temperature Compensation Coefficient: | -3mV/°C/2V(Default) |
| Charge Circuit Voltage Drop: | 0.21V |
| Environmental Parameters | |
|---|---|
| Storage Temperature Range: | -30°C～+80°C |
| Working Environment Temperature: | -20°C～+55°C(100% input and output) |
| Relative Humidity: | ≤95%, N.C. |
| Enclosure: | IP30 |
| Grounding: | Common negative |
| Altitude: | 5000m |
| Pollution Degree: | PD2 |
| Mechanical Parameters | |
|---|---|
| Dimension(L×W×H): | 178.5×105.5×48.3mm |
| Mounting Dimension: | 166.5×93.5mm |
| Mounting Hole Size: | Φ5mm |
| Terminal: | 16mm2/6AWG |
| Recommended Cable: | 6mm2/10AWG |
| Net Weight: | 0.31kg |
User Manual
30 Amp Solar Charge Controller Flush Mount
