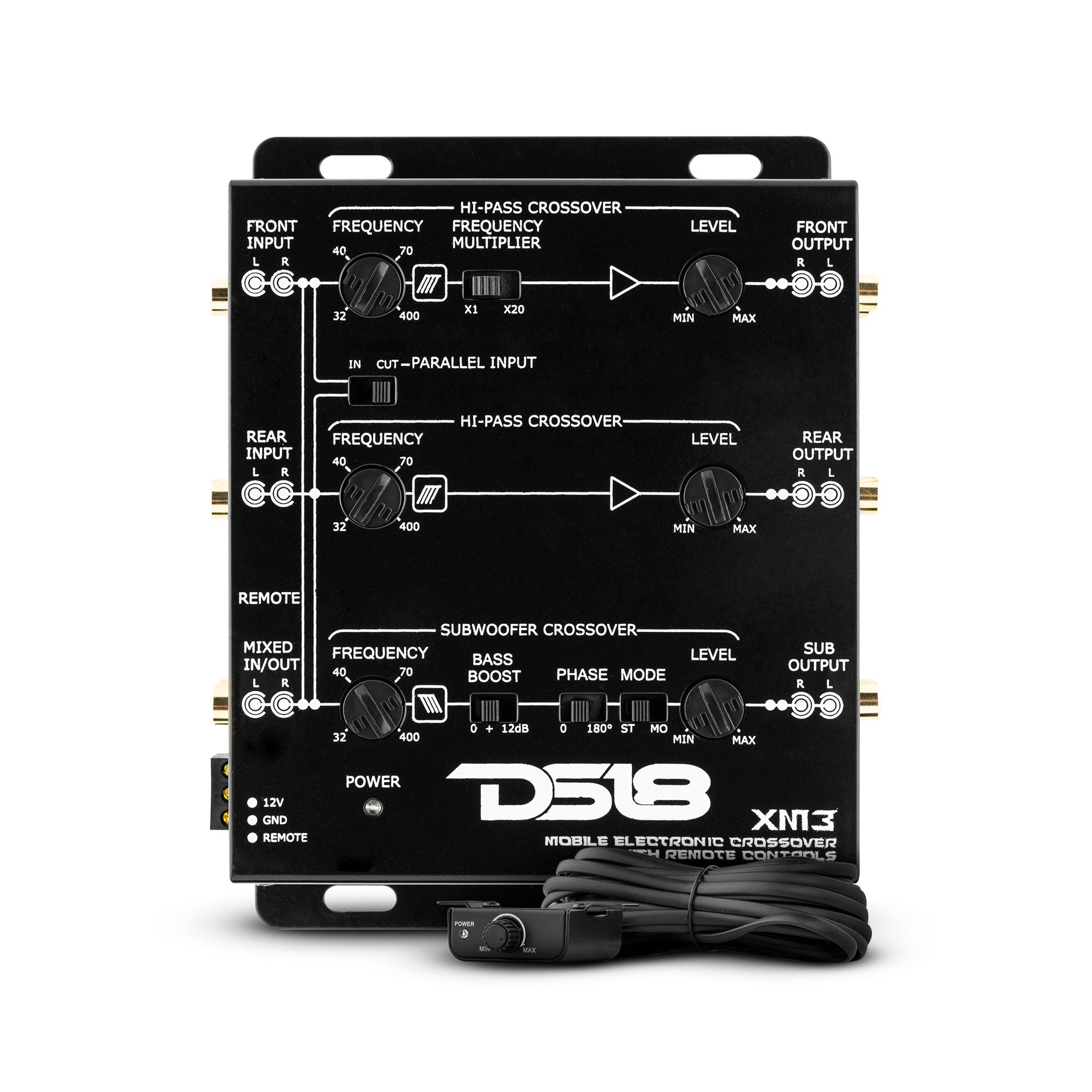

DS18 XM3 3-Way Active Crossover with Sub-Level Control
| Having the perfect tools to make your sound system the ultimate music machine is what DS18 has for you. Our crossovers are designed to provide the perfect frequency distribution throughout your system to ensure the clarity and peak efficiency for your acoustic. |
Highlights
- Get precise tuning accuracy with the XM3's easy to use tuning controls.
- Front and rear high pass filters will help you get your exact midrange and high range frequency targets easily.
- Subwoofer low pass adjustments will help you perfectly tune your sub in compliance with specs.
| Model: | XM3 |
| Supply Voltage: | 9-15VDC |
| Maximum Output (10 K_Load): | 9vrms |
| Low Level Input Voltage: | 4vrms |
| Remote Sub Level: | 18dB Boost |
| Crossover Frequencies: Front High Pass, Rear High Pass, and Subwoofer: | 32Hz to 400Hz |
| Crossover Slopes: | 12dB/Octave Butterworth |
| Total Harmonic Distortion (1KHz, 1 VRMS): | 0.01% |
| Signal to Noise Ratio: | >102dB |
| Features: | LED Power Indicator PWM Power Supply Ground and Remote Connector Bass Boost Power Gold RCA Input and Output connectors Detected Frequency Selection Control 0-180 Degree Subwoofer Phase Switch Remote Sub Level Control 3 Way Active Crossover with x20 Frequency Multiplier Switch |
