CODE: RS-MPPT20
Categories: Best Sellers!
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
- Description
- Shipping and Refund
FEATURES
- Automatically detects 12V or 24V DC system voltages
- Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium
- Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%
- Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current
- LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
- Features diverse load control; also capable of charging over-discharged lithium batteries
- Die-cast aluminum design allows for efficient heat dissipation
- RS232 port to communicate with BT-1 Bluetooth module.
Tech Specs
SPECIFICATIONS
| ATTRIBUTE | VALUE |
| Nominal System Voltage: |
12V/24V Auto Recognition |
| Rated Battery Current: | 20A |
| Rated Load Current: | 20A |
| Max. PV Input Short Current: | 25A |
| Max. Battery Voltage: | 32V |
| Max Solar Input Voltage: | 100 VDC |
| Mounting Oval: | 0.30 x 0.18 in |
| Net Weight: | 3.08 lb |
| Discharge Circuit Voltage Drop: | = 0.15V |
| Overall Dimension: | 8.27 x 5.94 x 2.34 in |
Specification & User Manual

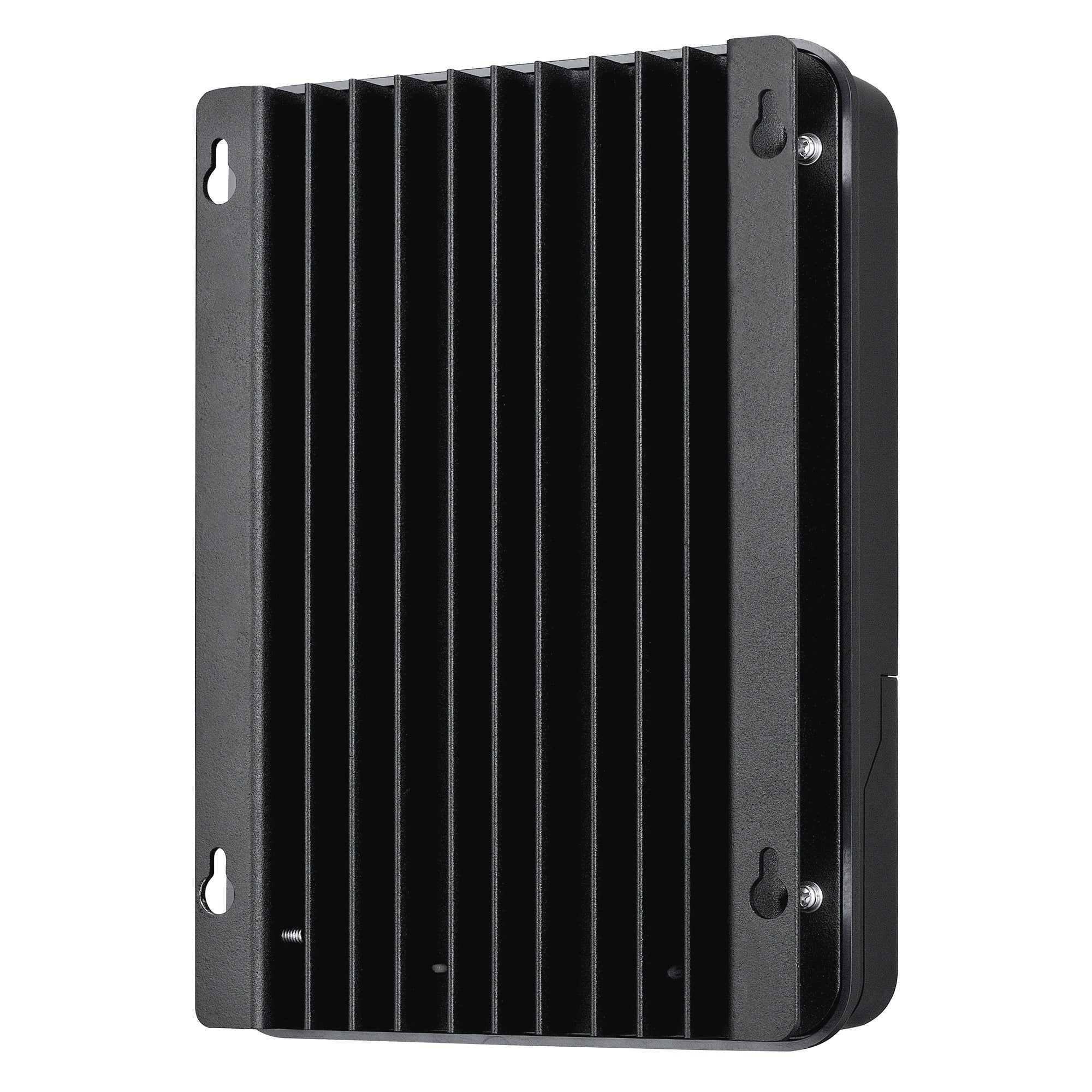

20 AMP MPPT SOLAR CHARGE CONTROLLER
