DS18

2.5"High Compression Neodymium Tweeter 100 Watts 1" Pen 4-Ohm Vc

$41.95 In Stock Sold out
Snap Logo Lease for as low as $/week Learn More

Sold out

CODE: PRO-TWN3

1-4 DAYS DELIVERY

100% ORIGINAL AND QUALITY

24 MONTHS GUARANTEE

  • Description
  • Technical Details
  • Shipping and Refund

DS18 PRO-TWN3 2.5"High Compression Neodymium Tweeter 200 Watts 1" Vc

Amazing option for those wanting competition level tweeters that not only sound great, but have that intense volume that DS18's super tweeters are known around the world for.

This PRO-TWN3 super tweeter maximizes and emphasizes volume over all with high power and high frequency notes. The square design gives it a unique look that demands attention and you can also tightly mount them side by side for a complete wall of outstanding highs for your system. This 2.5 inch tweeter can handle 50w AES and 200w peak power so it will be sure to deliver all the high range frequencies you are looking for.

Highlights

  • 2.5 inch tweeter design is made to bring crisp and bright high frequencies to maximum loudness for your system.
  • Small design makes it easy to mount and even easier to pair together for great looks and easy installations.
  • Power rating of 50w AES and 200 peak which will allow the high frequencies to play with authority.

Nominal Diameter 2.5” / 63 mm
Nominal Impedance 4 Ohms
AES Power Handling 50W
Program Power Handling 100W
Peak Program Handling 200W
Sensitivity (1w/1m) 107dB
Frequency Response 1.6KHz-20KHz
Recommended Hi Pass Crossover 2 KHz
Pair or Single Single
Filter Included Yes, 2.2 uf
MOTOR
Voice Coil Diameter 1” / 25.4 mm
Voice Coil Former Material Kapton
Winding Material CCAW
Diaphragm Material PEN
Magnet Material Neodymium
Magnet Weight 0.57
Body Material PC
MEASUREMENTS

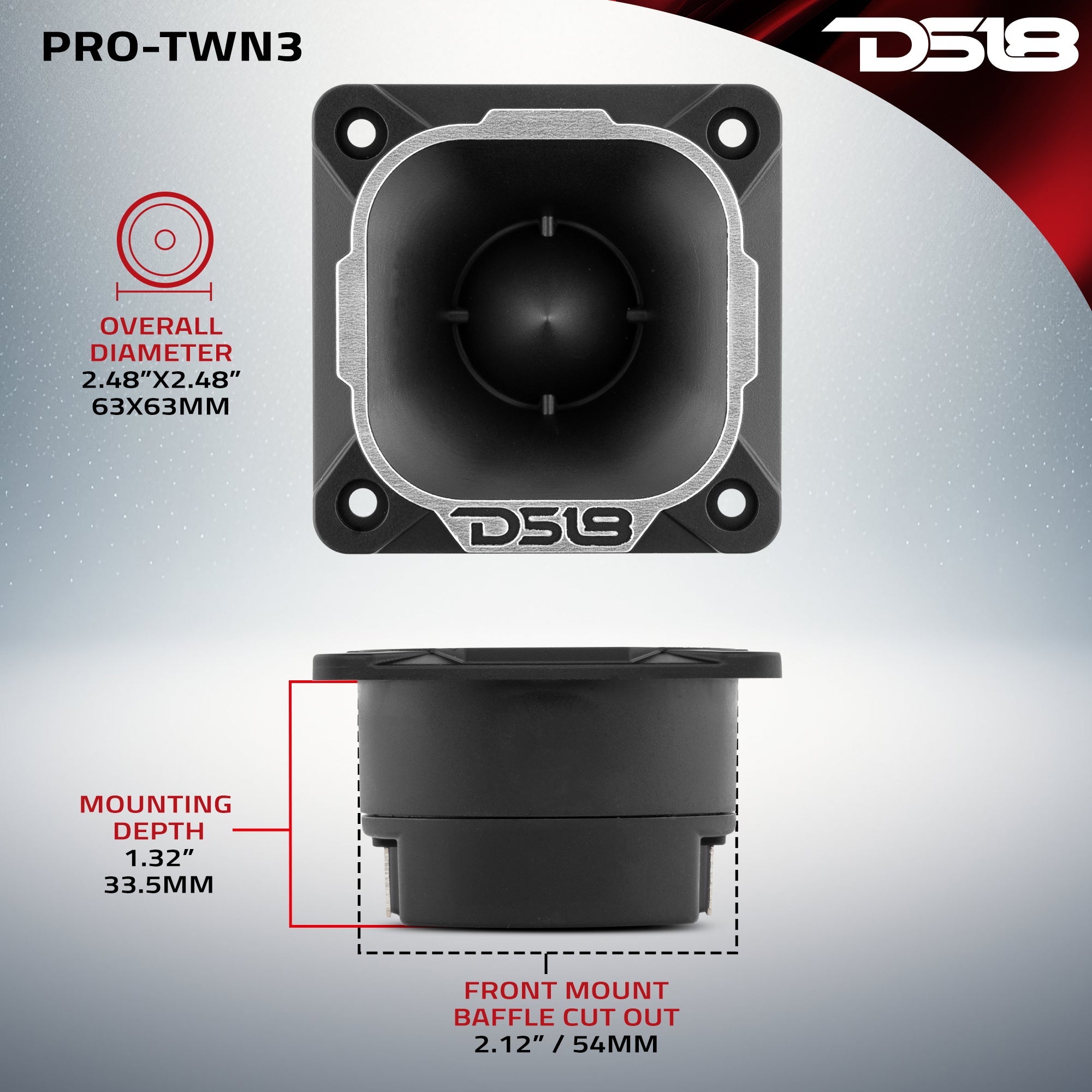

Overall Diameter 2.48x2.48" / 63x63 mm
Overall Depth 1.49" / 37.8 mm
Front Mount Baffle Cutout 2.12" / 54 mm
Mounting Depth 1.32" / 33.5 mm
