PRODUCT TITLE

Deaf Bonce Black Hydra Gamma 6.80 DSP – 6-Channel 480W RMS Class-D DSP Amplifier

PRODUCT DESCRIPTION

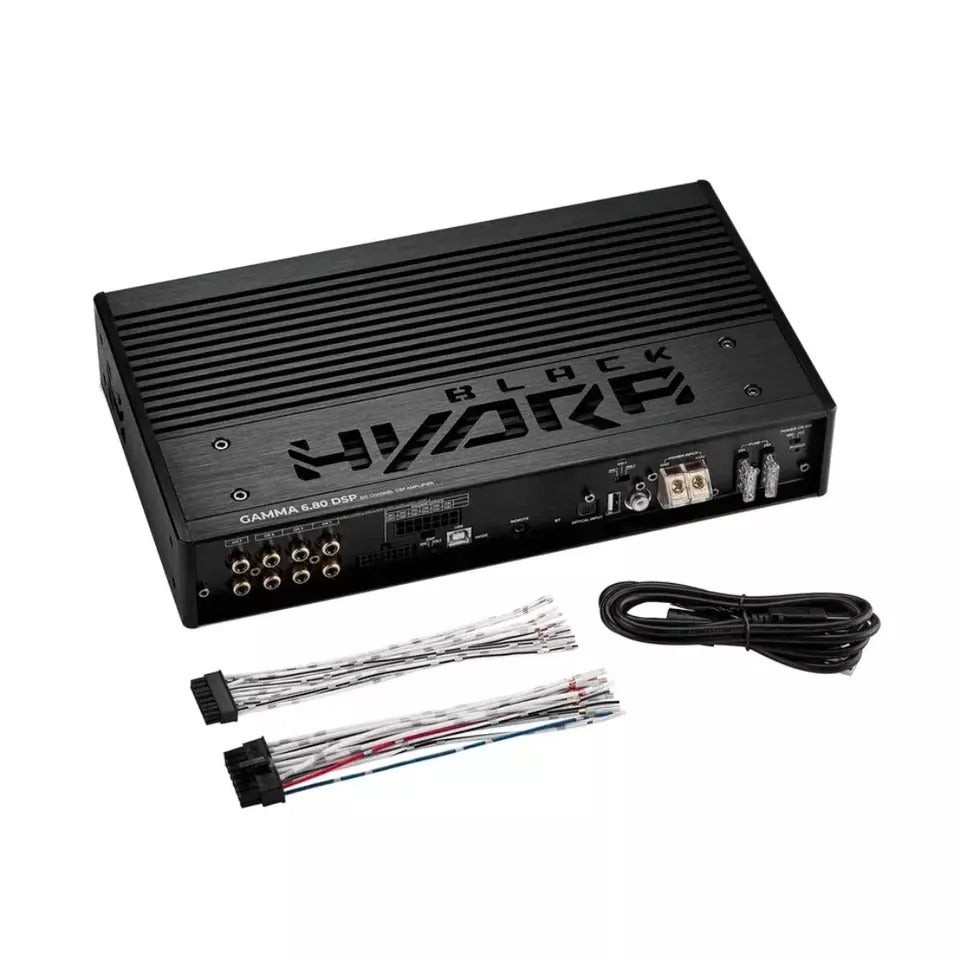

Deaf Bonce Black Hydra Gamma 6.80 DSP – 6-Channel DSP Amplifier

The Deaf Bonce Black Hydra Gamma 6.80 DSP is a premium 6-channel Class-D car amplifier with an integrated digital signal processor, designed for high-end sound-quality builds that need amplification and precise DSP tuning in one chassis.

Delivering 80 watts RMS × 6 channels at 4 ohms (480 watts total RMS), the Gamma 6.80 DSP combines clean multi-channel amplification with advanced signal processing, high-level and RCA inputs, optical and coaxial digital inputs, USB audio and computer-based DSP control.

It's an excellent solution for active front-stage systems, component speakers, factory-radio integration and custom SQ car-audio builds.

🔊 80W RMS × 6 — 480 WATTS TOTAL RMS

The Black Hydra Gamma 6.80 DSP provides:

80W RMS × 6 @ 4Ω
480W Total RMS Power
6 Amplified Speaker Channels
Class-D Architecture

Instead of requiring a separate DSP and six-channel amplifier, the Gamma 6.80 DSP integrates both functions into a single unit.

That makes it particularly attractive for installers building sophisticated systems while trying to conserve installation space.

🎛️ BUILT-IN DSP FOR SERIOUS SOUND TUNING

The real advantage of the Gamma 6.80 DSP is its integrated digital signal processing.

Using the Black Hydra DSP software and a Windows PC, installers can configure signal routing, channel levels, crossovers and other audio-processing parameters to create a properly tuned soundstage. The DSP uses an ADAU1452 processor, while the documented ADC and DAC operate at 24-bit resolution.

This gives a professional installer much more control than a conventional six-channel amplifier.

🎚️ ADVANCED ACTIVE CROSSOVER CONTROL

The Gamma 6.80 DSP provides extensive crossover adjustment:

HPF: 20Hz–20,000Hz
LPF: 20Hz–20,000Hz
Adjustable Slopes: 6–48 dB/Oct

That flexibility makes the amplifier particularly useful for fully active systems, where individual amplifier channels can be dedicated to tweeters, midrange speakers and midbass drivers.

Instead of relying solely on passive crossovers, the installer can control the frequency range sent to individual drivers through the DSP.

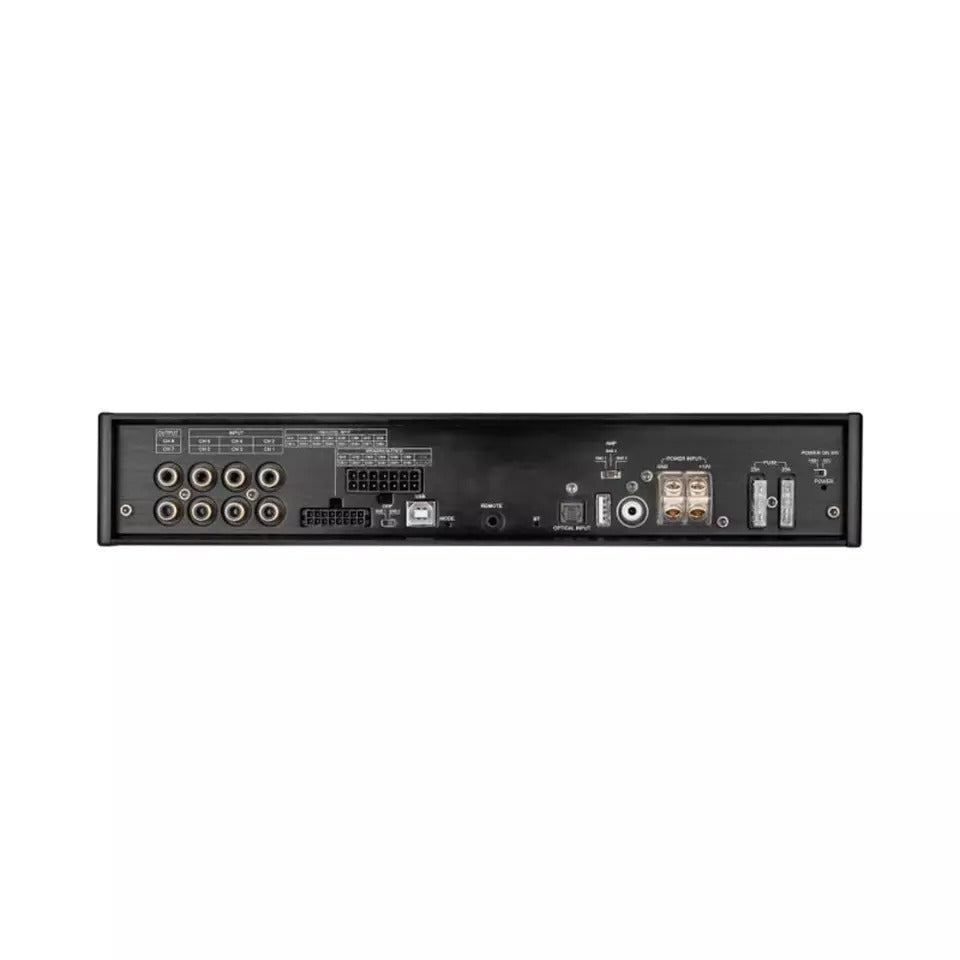

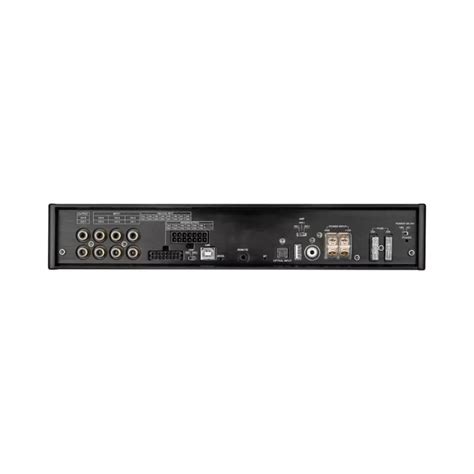

🔌 EXTENSIVE INPUT OPTIONS

One of the strongest selling points for this amplifier is connectivity.

The Gamma 6.80 DSP supports:

6 × RCA Inputs
8 × High-Level Inputs
1 × Optical Digital Input
1 × Coaxial Digital Input
1 × ACC Input
1 × USB Audio Input
1 × USB PC Connection

Outputs include:

6 × Amplified Speaker Outputs
2 × RCA Outputs
1 × Remote Output

This makes the Gamma 6.80 DSP useful for both aftermarket head-unit systems and more complex factory-radio integrations.

🚘 GREAT FOR FACTORY RADIO INTEGRATION

Running the factory radio?

The 8-channel high-level input capability gives installers another option for integrating the DSP amplifier into OEM audio systems without requiring a traditional aftermarket RCA source.

The amplifier can also be configured to turn on from a high-level signal when properly set up, according to Black Hydra's installation documentation.

That makes the Gamma 6.80 DSP a strong option for modern cars and trucks where replacing the factory radio isn't practical.

🎵 BUILT FOR SOUND QUALITY

Black Hydra positions the Gamma 6.80 DSP specifically as a high-fidelity, precision-oriented amplifier rather than simply a high-output amplifier.

Its published specifications include a 20Hz–20,000Hz frequency response, ≥98 dB signal-to-noise ratio and less than 0.05% THD at 1kHz.

For an SQ-oriented build, those specifications matter because the goal isn't just getting louder—it's gaining control over staging, frequency response and speaker integration.

⚡ KEY FEATURES

• 6-channel Class-D DSP amplifier
• 80W RMS × 6 @ 4Ω
• 480W total RMS
• Integrated digital signal processor
• ADAU1452 DSP
• PC-based DSP tuning
• 6 RCA low-level inputs
• 8 high-level inputs
• Optical digital input
• Coaxial digital input
• USB Audio
• USB PC interface
• 6 amplified speaker outputs
• 2 RCA outputs
• Adjustable HPF and LPF
• Crossover slopes from 6–48 dB/octave
• 20Hz–20kHz frequency response
• ≥98dB signal-to-noise ratio
• <0.05% THD at 1kHz
• 10–17V operating range
• 2 × 25A fuses
• Compact all-in-one amplifier/DSP architecture

📊 SPECIFICATIONS

📦 WHAT'S INCLUDED

According to the Black Hydra documentation, the package includes:

1 × Gamma 6.80 DSP Amplifier
1 × 14-Pin Multifunction Connector
1 × 16-Pin High-Level Input Connector
1 × Type-A/Type-B USB Cable
1 × Mounting Kit

The DRC remote controller is sold separately, according to the manufacturer's installation documentation.

🔥 WHO SHOULD BUY THE GAMMA 6.80 DSP?

This isn't just an amplifier for someone looking for maximum wattage.

The Gamma 6.80 DSP makes the most sense for a customer who wants a clean, properly tuned multi-speaker system and needs precise control over each part of the soundstage.

It's especially well suited for:

Active 3-Way Front Stages • Component Speaker Systems • SQ Builds • Factory Radio Integration • Custom Truck Audio • Multi-Speaker Systems • DSP Upgrades • OEM Integration

For example, six amplified channels could be configured for a fully active front stage with separate channels for the left/right tweeters, midranges and midbass drivers.
