DS18 PRO-X 8" Mid-Range Loudspeaker with RGB Light Bullet 275 Watts Rms 4-Ohm

$77.95 In Stock Sold out
Snap Logo Lease for as low as $/week Learn More
CODE: PRO-X8.4BMRGB
Categories: Best Sellers!, LIGHTS

1-4 DAYS DELIVERY

100% ORIGINAL AND QUALITY

24 MONTHS GUARANTEE

  • Description
  • Technical Details
  • Shipping and Refund

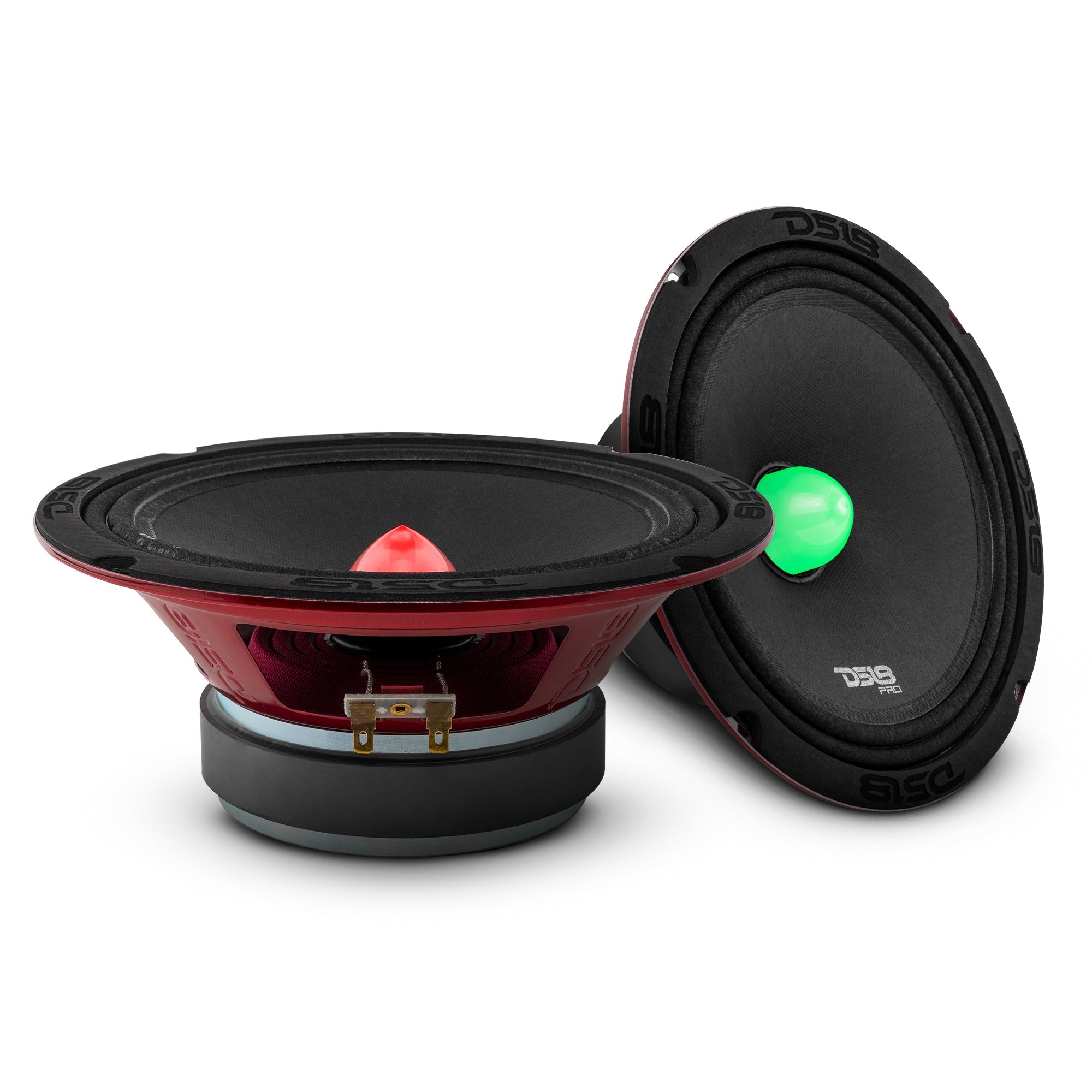

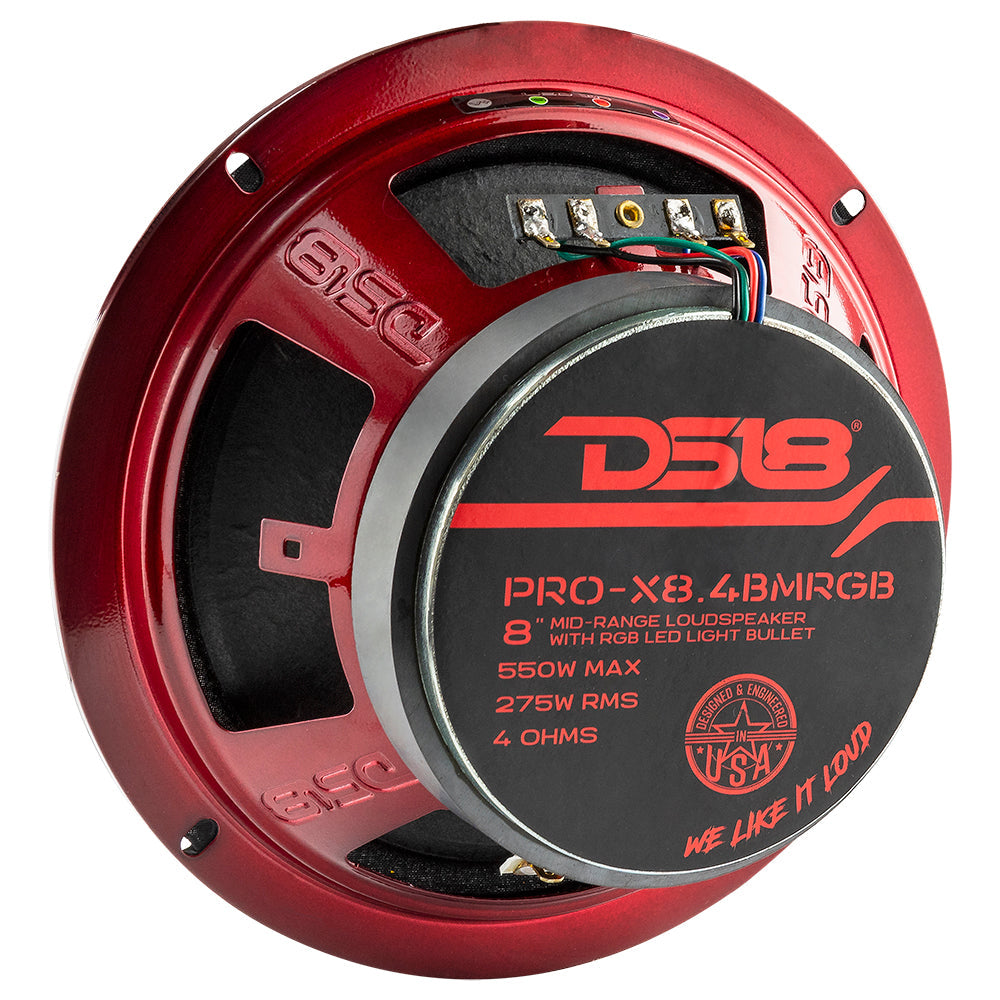

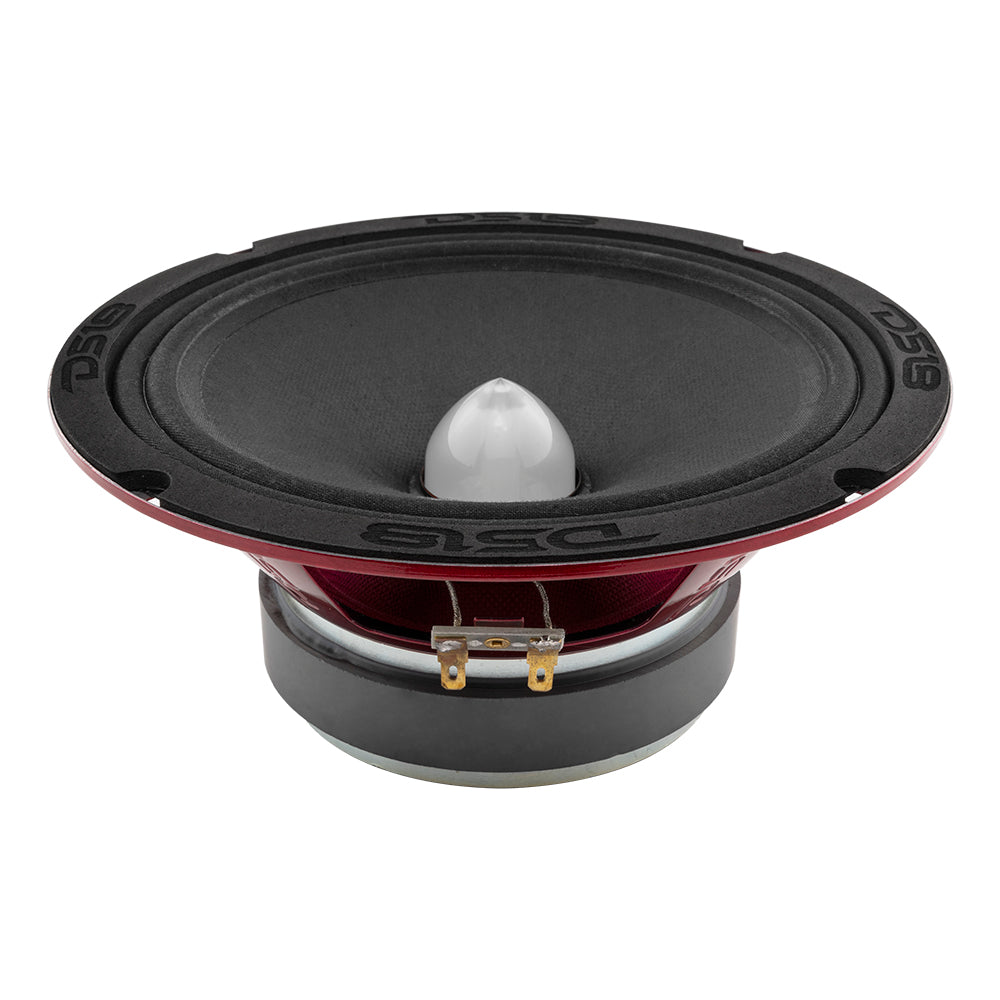

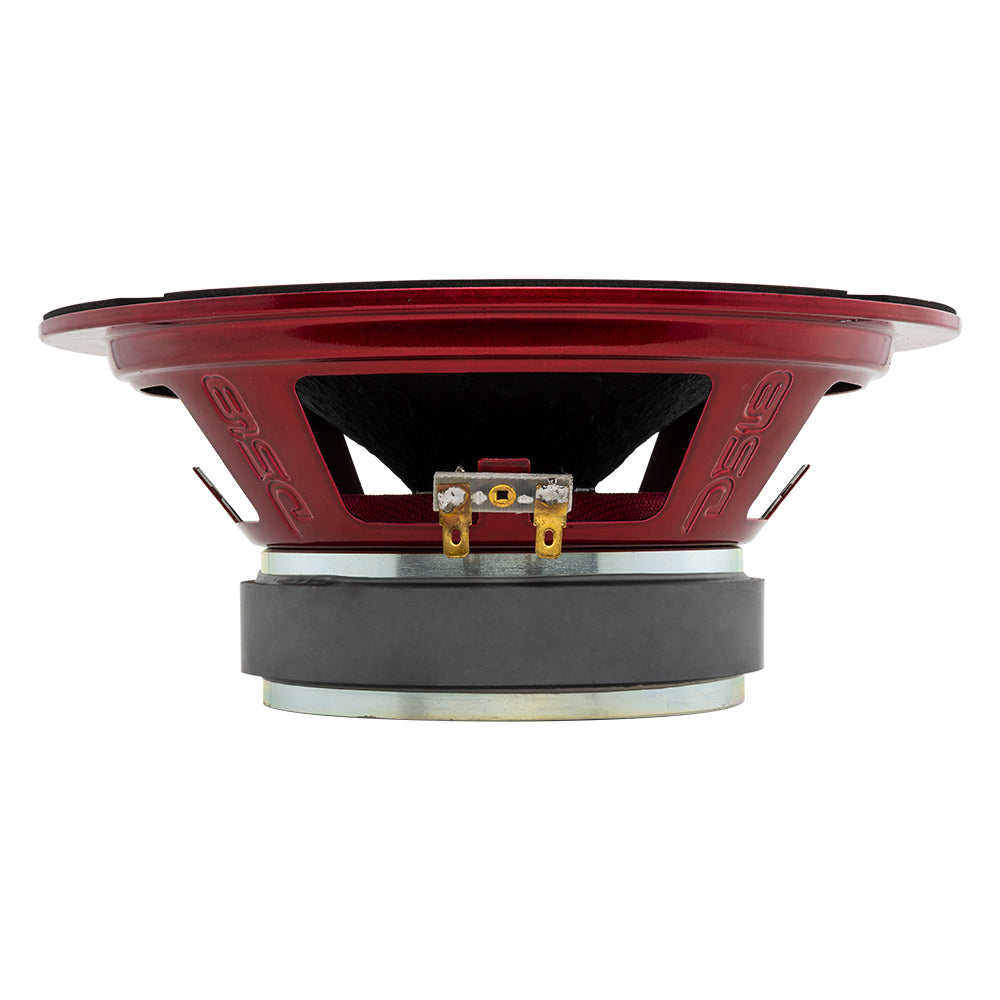

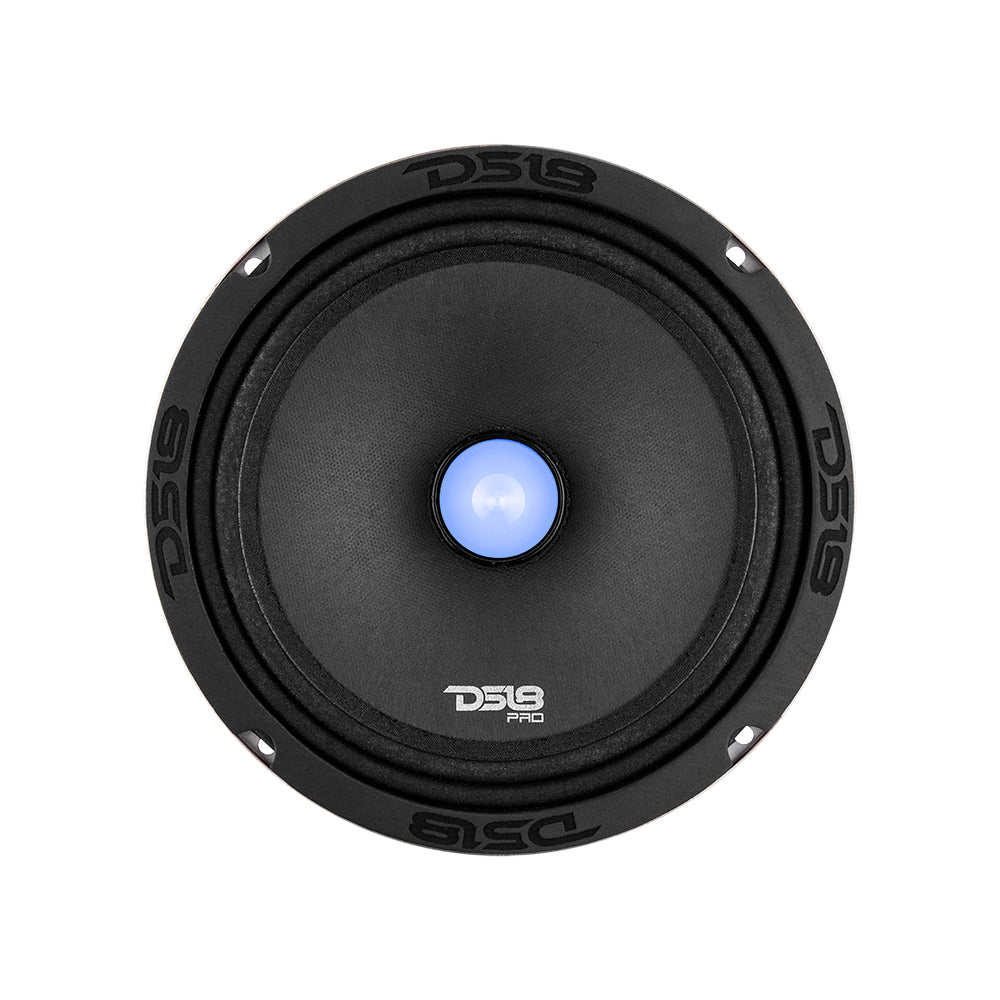

DS18 PRO-X8.4BMRGB 8" Mid-Range Loudspeaker with Bullet & RGB LED Light 550 Watts 4-Ohm

DS18 is always innovating and dominating on the pro audio scene. The newest addition to our pro audio RGB line is the extremely loud PRO-X8.4BMRGB. This amazing speaker shares all the characteristics of our very popular PRO-X8.4BM but with some added flair which is the full RGB bullet tweeter. This speaker comes in at 275w RMS and 550w Peak power with a 96db sensitivity so you will have no problem getting loud easily. The added RGB will bring that added flair and ambience aesthetic to match your mood or color scheme.

Highlights

  • High power pro audio speaker handling 275w RMS and 550w Peak power.
  • Integrated RGB resonator (bullet tweeter) 4 wire connections for a bright and brilliant aesthetic.
  • Strong ferrite magnet with CCA high wattage voice coil and 96db sensitivity.

Download PRO-X8.4BMRGB Product Manual

Nominal Diameter 8
Nominal Impedance 4 Ohms
RMS Power Handing 275w
MAX Power Handing 550w
Sensitivity (1w/1m) 96dB
Frequency Response 125Hz-16KHz
Recommended HI Pass Crossover 120 Hz
Motor
Voice Coil Diameter 38.6mm / 1.5"
Voice Coil Former Material Kapton
Winding Material CCAW
Cone Material Paper
Bullet Material Translucid ABS with RGB LED
Surround Material Cloth
Basket Material Steel
Magnet Material Ferrite
Magnet Weight 30 Oz
Displacement Volume 0.046L
Thiele & Small Parameters
Equivalent Volume Vas 7.1226L
Excursion (one way) Xmax 9.3mm
Free Air Resonance Fs 114Hz
Mechanical Factor Qms 9.052
Electrical Factor Qes 0.877
Total Factor Qts 0.8
Mechanical Mass Mms 17.699g
Mechanical Compliance Cms 0.11 m/N
BL Factor BL 6.945
Voice Coil Inductance Le 5.31mH
Cone Area Sd 213.82 cm2
CD Resistance Re 3.2 ohms

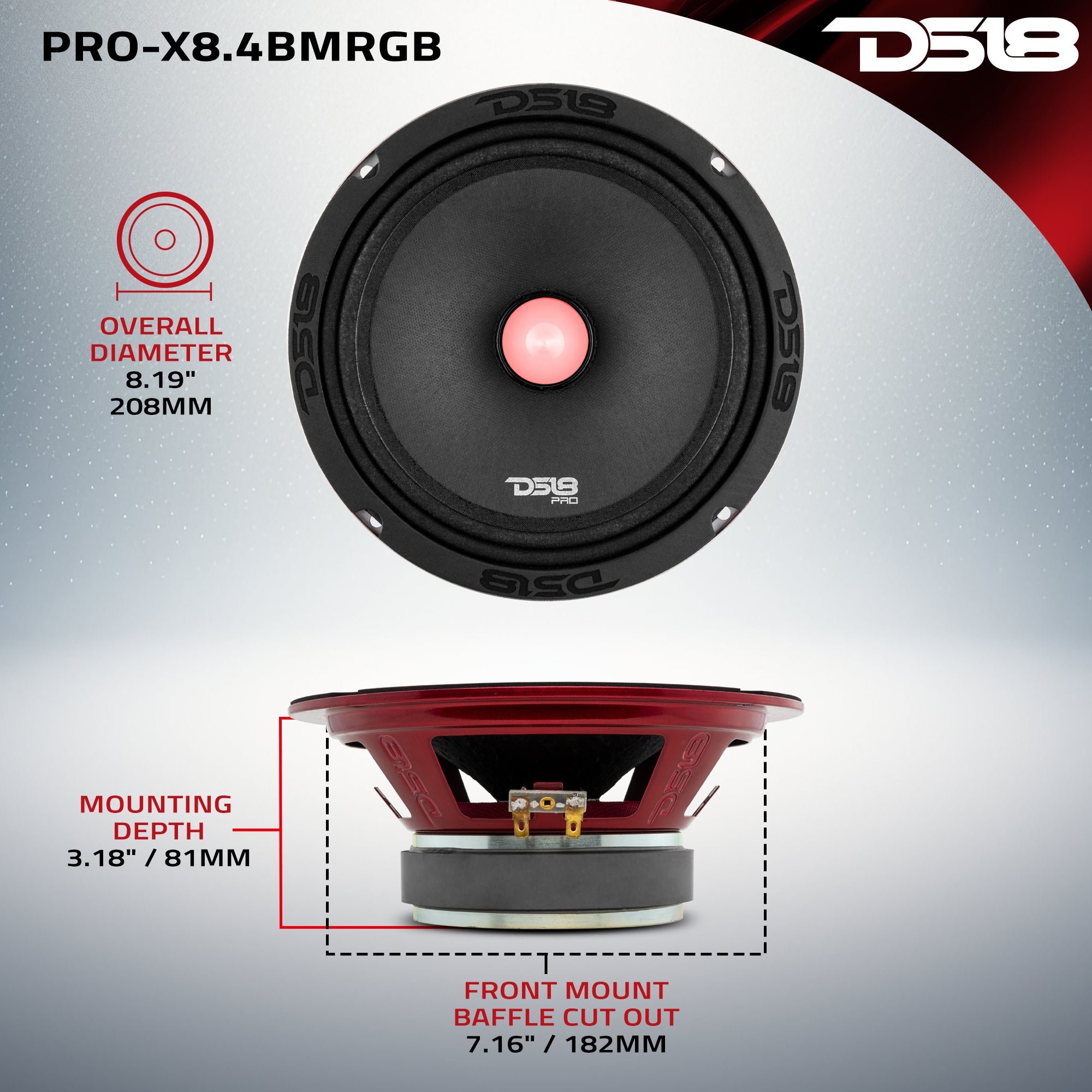

Measurements
Overall Diameter 8.19" / 208mm
Overall Depth 3.42" / 87mm
Front Mount Baffle Cutout 7.16" / 182mm
Mounting Depth 3.18" / 81mm
Motor Diameter 4.72" / 120mm
