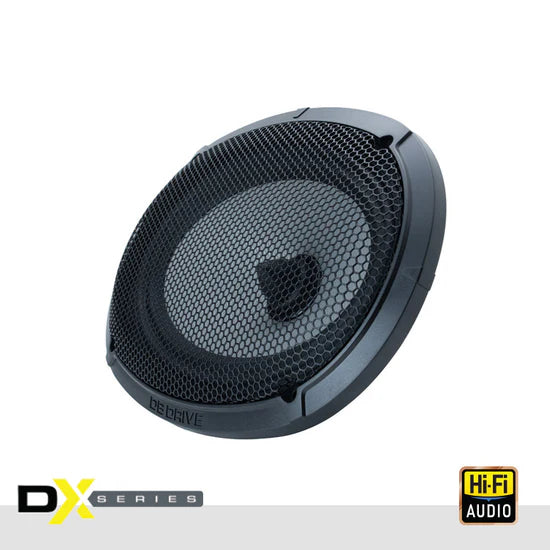

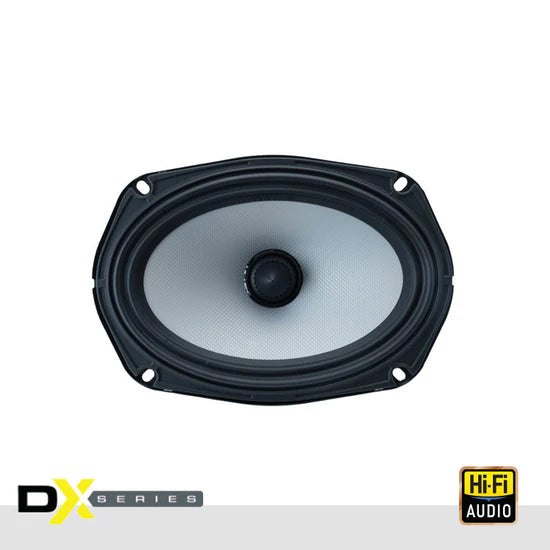

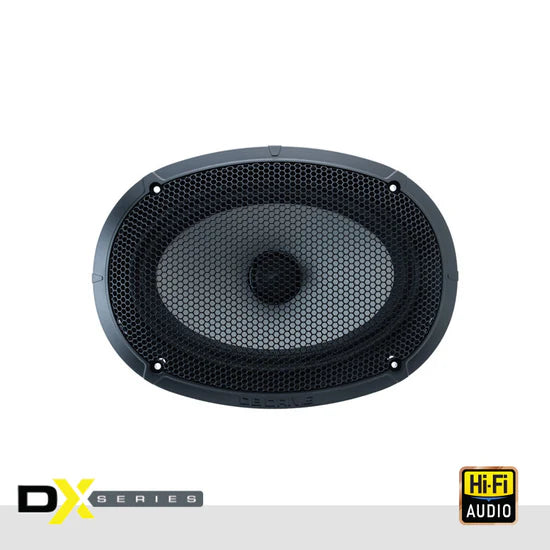

DX-S69C : 6"×9" 2-way Component Loudspeaker

Product details

The DB DRIVE DX-S69C Component Speaker combines superior sound quality with a compact design, making it the ideal choice for upgrading your car’s audio system in limited spaces. Key Features: 1" Aluminum Dome Tweeter: Clear, balanced highs and an expanded soundstage. Injection-Molded PP Composite Woofer Cone: Crisp, accurate midrange with minimal distortion. 1.26" Oversized Voice Coil: Enhanced thermal capacity for consistent high-volume performance. Optimized Frequency Bandwidth: Smooth, natural sound with precise midrange and high frequencies. Forged Motor Plates & Ferrite Magnet: Clarity, efficiency, and long-lasting reliability. Stamp-Cast Steel Basket: Stability for accurate sound reproduction. Premium 2-Way 12dB Crossover: Smooth transitions between woofer and tweeter for optimal sound. Power Handling: Dynamic Power: 350W Nominal Power: 125W Ideal for both factory upgrades and custom systems, the DB DRIVE DX-S69C Component Speaker delivers reliable, high-quality sound with easy installation.

Features

• 1" Aluminum component dome tweeter with optimized off-axis frequency response

• Flexible multi-mount tweeter application accessories: surface, angle, flush

• Injection molded PP composite midrange Cone with rubber surround

• 1.25" oversized midrange voice coil with enhanced thermal capacity

• Optimized frequency bandwidth design

• Forged motor plates with linear gauss geometry

• Ferrite oxide magnet with optimized motor force

• Stamp cast  steel basket

• Enhanced 12db  premium 2-way external crossover

Specifications

• Max Power : 350 Watts

• Nominal Power Handling : 125 Watts

• Frequency Response: 40Hz - 20KHz

• Impedance:  4Ω

• Sensitivity: 97 dB
