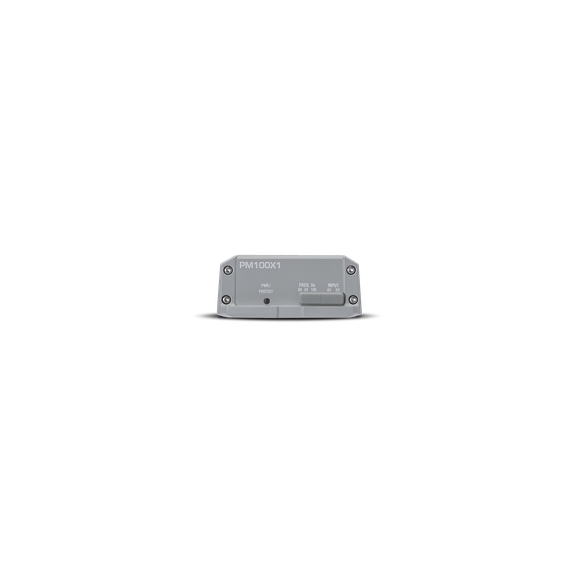

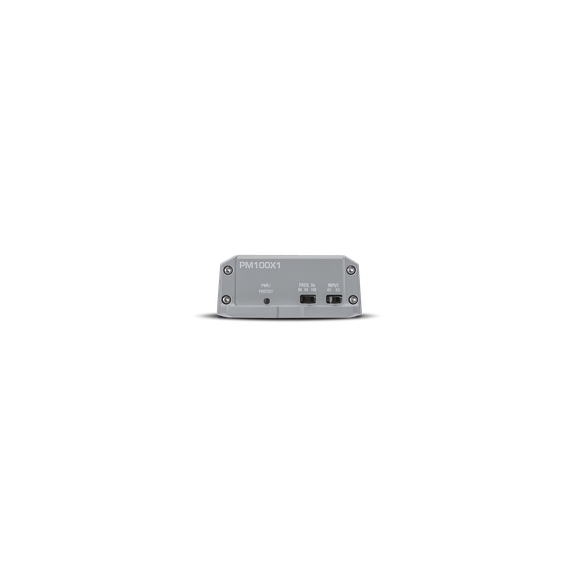

Rockford fosgate Punch 100 Watt Full-Range Element Ready Mono Amplifier (pair)

Product details

The PM100X1 is a 100 Watt dynamic power mono amp using DC and AC voltages present on existing radio speaker outputs. This design allows connection to a speaker wire without running a B+ cable. It also presents a safe load to the radio amp circuit to eliminate excessive wear and tear on the radio, making it ideal for aftermarket radios. The conformal coated PCB and enclosure are IPX6 rated for the next level in Element Ready™ protection against water, dust and UV rays.  The PM100X1K is a kit that ships as a pair (2 pcs).

FEATURES AT A GLANCE

• CEA-2006 Compliant & CE Compliant
• FreeLoad charges an internal capacitor bank to produce power when needed
• Extruded Aluminum Heat Sink
• Current Limited to Protect Head Unit for Both 4 Ohm and 2 Ohm Configurations

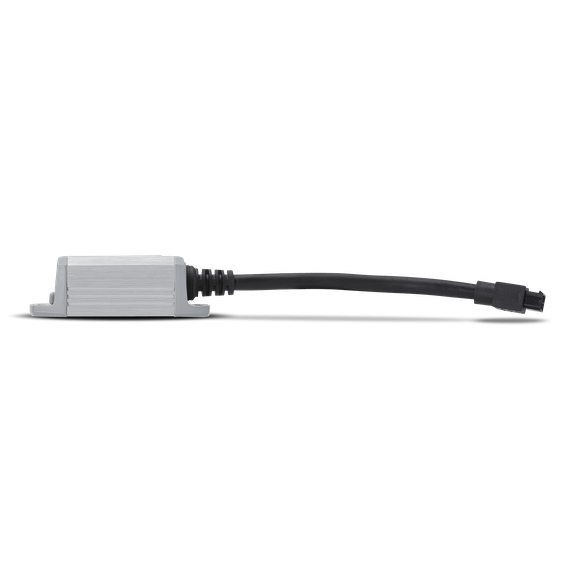

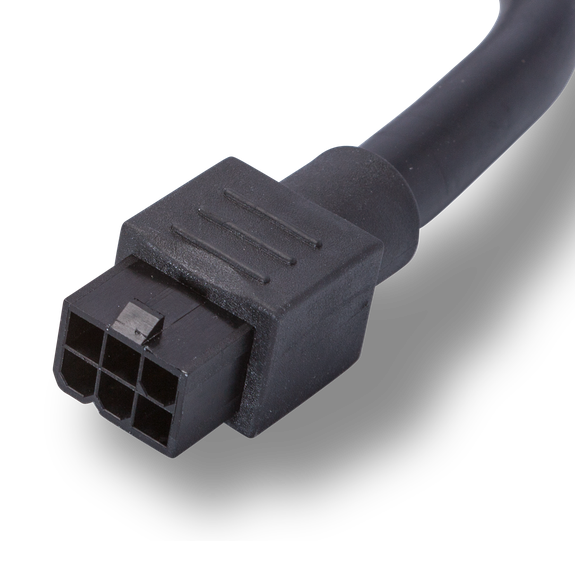

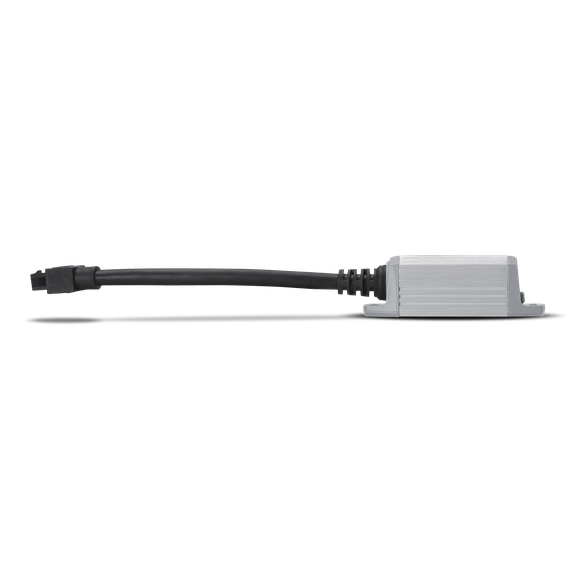

• Pig Tail Connectivity for Easy Installation
• Harvests both B+ and Audio Signal From Standard Source Unit Speaker Outputs
• Uses Stored Energy from BTL Amplifier to Produce Dynamic Power of Over 100W
• High Level Turn On
• Short Circuit & Over Voltage Protection
• Discrete surface mount technology
• Optional B+ Connection for Non-Standard Speaker Outputs
• Thermal Protection
• Small Stealth Package that Allows for Anywhere Installation
• 60, 80, and 100 Hz Selectable 12dB/Oct HP Butterworth Crossover
• Selectable 4 and 2 Ohm Play
• 2-Year Warranty
• Muted turn on

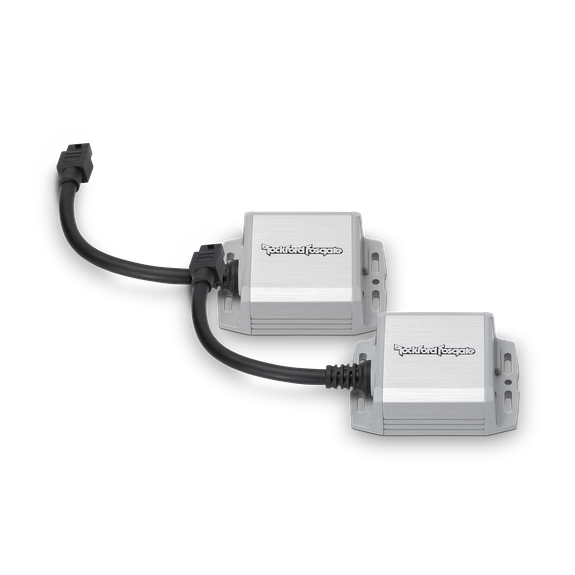

• Sold in pairs (left/right)

Specifications
