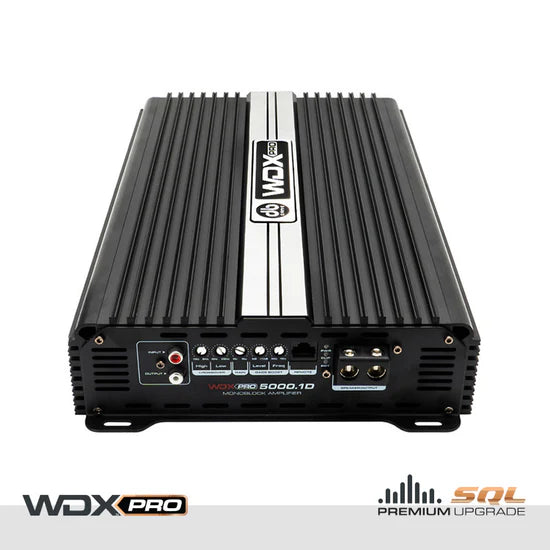

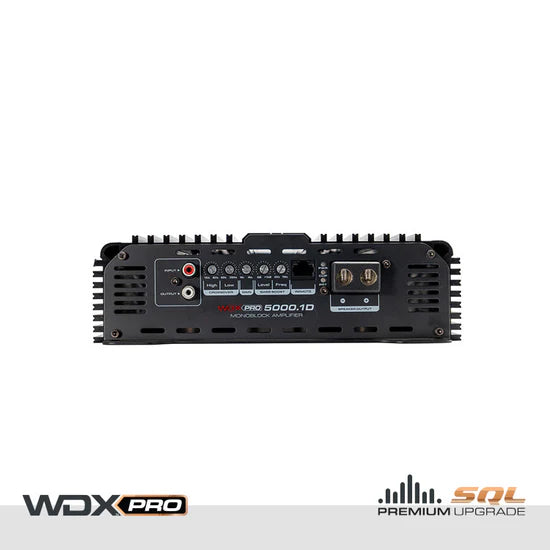

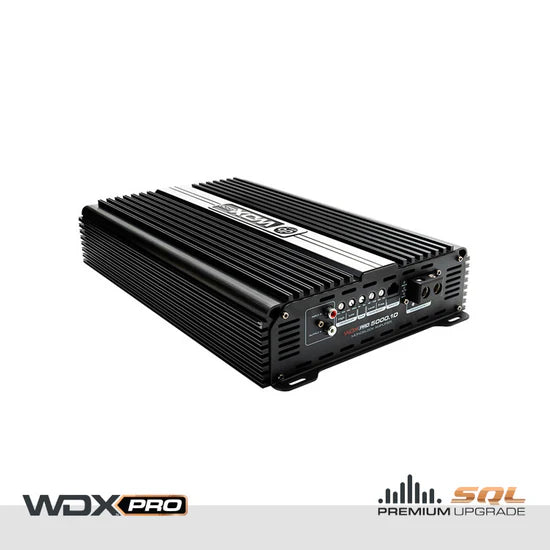

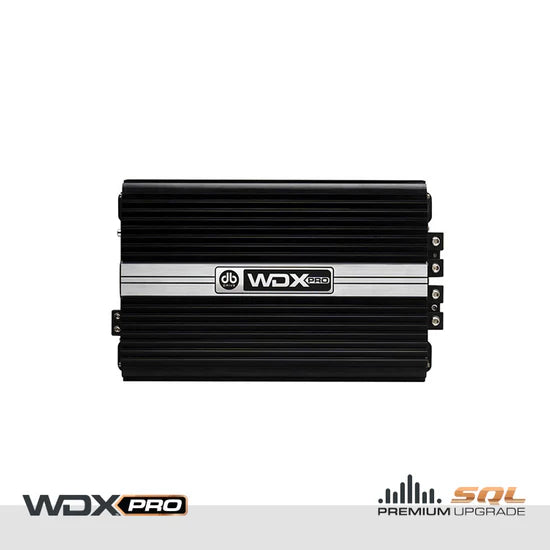

WDX PRO5000.1D : Mono Full-Range Class D Amplifier

Product details

Superior audio performance with the DB Drive WDX PRO5000.1D a mono Class D full range amplifier designed for high output and crystal-clear sound. Easily power subwoofers or high power midbass drivers. Key Features: • Adaptive Crossover: Fine-tunes your system for optimal performance across compression drivers , midranges, or subwoofers. • CHM: Keeps the amp cool for consistent power without overheating. • SESI Circuit: Real-time monitoring to protect your system from overdriving. • Large-Gauge Terminals: Compatible with 4-gauge wiring for maximum efficiency. With 5000 Watts at 1Ω, the WDX PRO5000.1D provides extremely powerful, dynamic power taking your car audio system to the next level

Features

• ATC - Audiophile RCA Connectors

• ACT - Adaptive Crossover Technology

• High efficiency  Class Full Range Class D Technology

• 4 Gauge Direct Connect Speaker Terminals

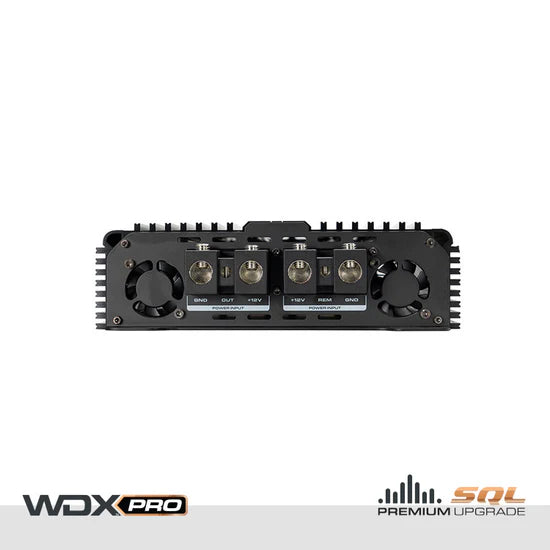

• Dual 0 Gauge Power Wire Inputs

• APC - Audio Protection Circuit

• SESI - Signal Evaluation Status Indicator

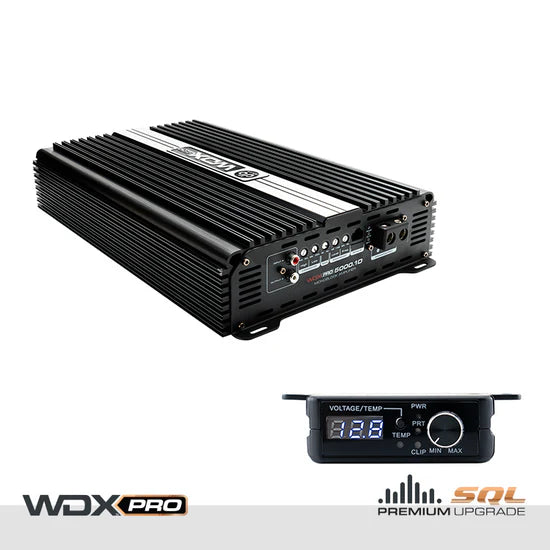

• Bass Remote with voltage , temperature and signal status indicator

• CHM - Collective Heat Management

Specifications

• 1 x 5000 Watts @ 1 ohm

• 1 x 2500 Watts @ 2 ohms

• 1 x 1250 Watts @ 4 ohms

• Working Voltage: 12-15 Volts

• Frequency Response: 15 Hz - 20k Hz

• Signal to Noise Ratio: 95dB

• Damping Factor: ≥200

• Low Level Input: 6V - 0.2mV

• Variable Bass Boost Frequency:  35 Hz - 70 Hz

• Bass Boost EQ Gain: 0dB - 12dB

• High Pass Filter Variable: 15 Hz - 8k Hz

• Low Pass Filter Variable: 40 Hz - 20 Hz

• Minimum working Impedance: 1 Ohm
