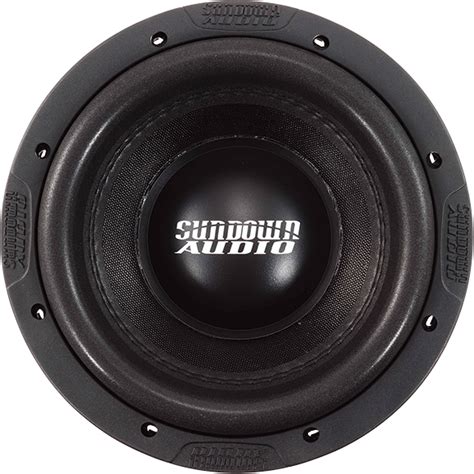

Sundown Audio U-8 D2 8" Subwoofer – 750W RMS Dual 2 Ohm

Product Description

The Sundown Audio U-8 D2 is a high-performance 8-inch Dual 2-Ohm car audio subwoofer designed for customers who want serious bass output without giving up the space required for a larger 10", 12", or 15" subwoofer.

Rated at 750 watts RMS and 1,500 watts peak, the U-8 combines high power handling, heavy-duty construction, advanced cooling, and substantial output potential in a compact 8-inch platform. Sundown describes the U-8 as essentially an SA-8 v.3 taken to another performance level, with increased power handling, excursion, and output capability.

For custom truck systems, under-seat enclosures, compact bass builds, and installations where space is limited but bass output still matters, the Sundown U-8 D2 is a serious option.

🔥 750 Watts RMS From an 8" Subwoofer

Don't underestimate this subwoofer because of its size.

The Sundown Audio U-8 handles:

RMS Power: 750 Watts
Peak Power: 1,500 Watts
Subwoofer Size: 8"
Voice Coil: Dual 2 Ohm
Recommended Enclosure: Small ported enclosure

That combination makes the U-8 especially attractive for truck owners who need to generate substantial bass from limited enclosure space.

🔊 Dual 2-Ohm Voice Coils – U-8 D2

This listing is specifically for the D2 — Dual 2-Ohm version.

A single U-8 D2 can typically be wired to a final impedance of:

1 Ohm — voice coils wired in parallel
4 Ohms — voice coils wired in series

This makes the D2 an excellent choice for many monoblock car-audio amplifiers that produce their strongest output at 1 ohm.

Always verify your amplifier's minimum impedance and calculate the final impedance when installing multiple subwoofers.

⚡ 2.25" Aluminum Voice Coil Former

The U-8 uses a 2.25-inch aluminum voice-coil former designed to help dissipate heat during high-output operation.

Sundown combines it with a high-temperature copper voice coil, giving the U-8 the thermal capability needed for a powerful compact subwoofer system.

❄️ Advanced Cooling System

Keeping the voice coil cool is critical when pushing serious power.

The U-8 incorporates multiple cooling technologies, including:

Rear gap venting
Top-plate cooling channels
Solid pole with vent channels
Aluminum shorting-ring cap

These features help move heat away from the motor and voice-coil assembly during demanding use.

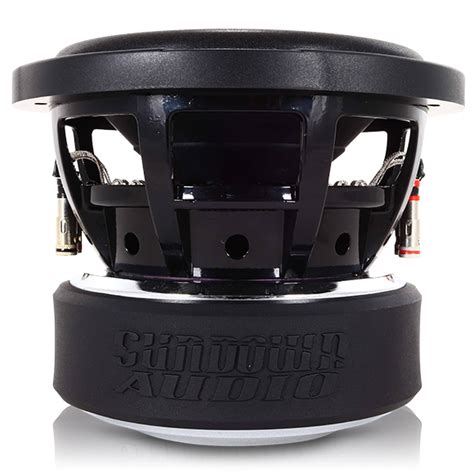

💪 Heavy-Duty Construction

The U-Series 8" isn't built like an ordinary entry-level 8-inch subwoofer.

Sundown equips it with:

• Heavy-duty cast basket
• Double-stitched surround
• Stitched-on heavy-duty tinsel leads
• Spring-loaded terminals
• Terminals accepting up to 8-gauge wire
• High-temperature copper voice coil
• Aluminum 2.25" voice-coil former
• Advanced motor cooling
• Aluminum shorting-ring cap

These components are designed to provide the durability needed for a serious high-output car-audio installation.

🚚 Excellent for Custom Truck Bass Systems

The compact 8-inch format makes the Sundown U-8 especially interesting for truck subwoofer installations where larger drivers may not fit.

Potential applications include custom enclosures for:

Chevy Silverado • GMC Sierra • Ford F-150 • Ford F-250 • Ram 1500 • Single Cab Trucks • Crew Cab Trucks • Extended Cab Trucks • Custom Under-Seat Boxes

Vehicle names describe common applications only and do not guarantee fitment. Always verify the enclosure's mounting depth, cutout, airspace, and subwoofer clearance before purchasing.

📋 Sundown Audio U-8 D2 Specifications

These specifications reflect Sundown Audio's current manufacturer listing for the U-Series 8" v.1.

📦 Built for Small Ported Enclosures

One of the biggest advantages of the Sundown U-8 is its ability to deliver high output from a relatively compact system.

Sundown specifically states that the U-8 is optimized for small ported enclosures.

That makes it a strong candidate for applications where enclosure space is valuable, especially custom truck builds.

For best results, the enclosure should be properly designed around the subwoofer, vehicle, amplifier power, available airspace, port area, and desired tuning frequency.

Why Choose the Sundown Audio U-8 D2?

The Sundown Audio U-8 D2 is for customers who don't want an ordinary 8-inch subwoofer.

You get a compact 8" subwoofer capable of handling 750W RMS, combined with Dual 2-Ohm voice coils, a 2.25" aluminum voice-coil former, heavy-duty cast basket, advanced cooling, heavy-duty tinsel leads, and construction designed for serious bass output.

If you're building a system where space is limited but you still want the bass to hit, the U-8 deserves a spot on your list.

Small Subwoofer. Serious Power. Sundown Bass.
