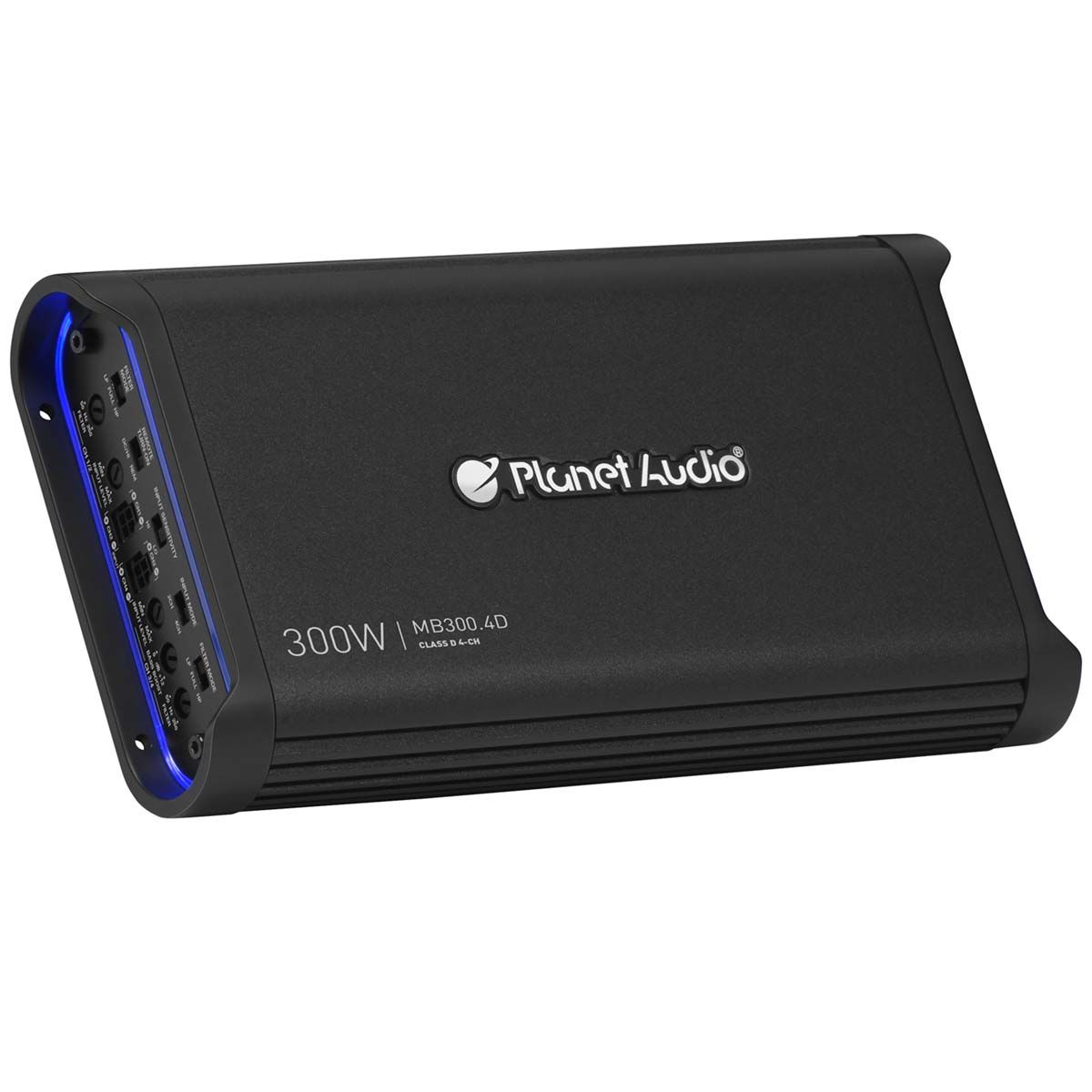

Planet Audio MB300.4D MINI BANG 1200W 4-Channel Full Range Class-D Amplifier

Product details

• Class-D 4-Channel Amplifier
• Amplifier will operate with 4-ohm or 2-ohm loads
• 2 Channel and 1 Channel capable
• Pulse Width Modulated MOSFET power supply

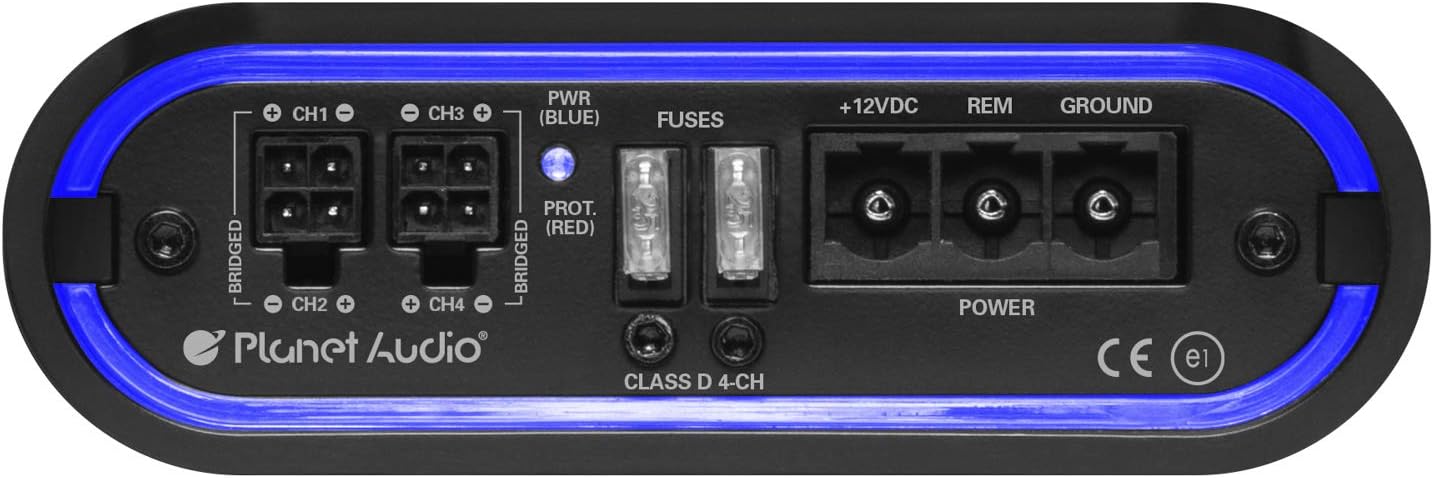

• LED power (green) and protect (red) indicators
• Speaker-level (high-level) inputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heat-sink
• Speaker level input with included molex connector
• Illuminated End Panel Strips

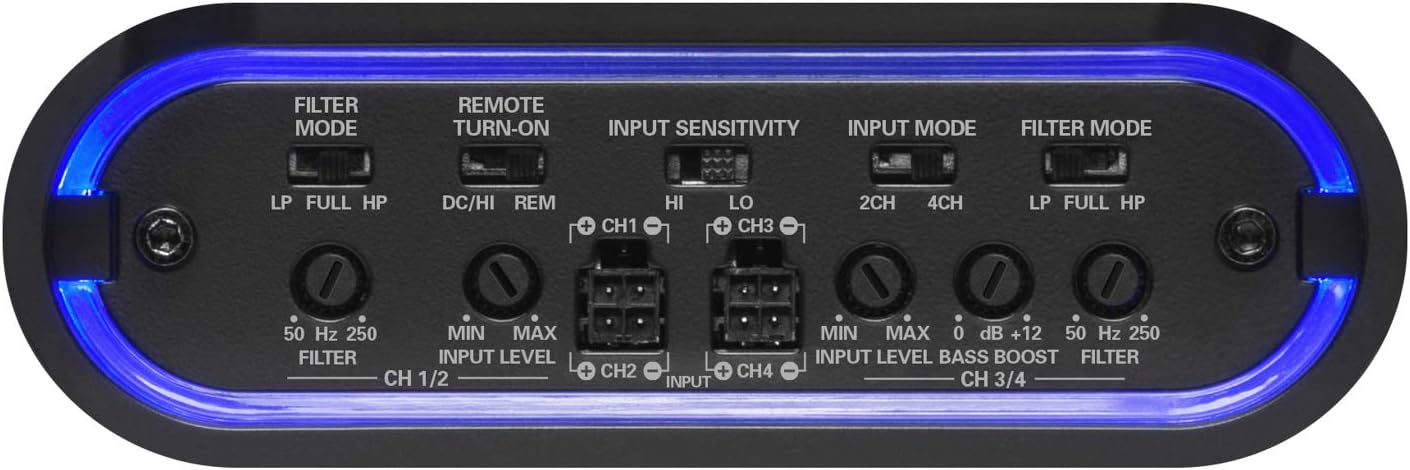

• Variable high-pass filter: 50 - 250 Hz, 24 dB/octave
• Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz

• 4-channel operation
• High Level Harness Inputs
• Low Level molex Inputs
• Input Sensitivity

• Total Power Output: 300W x 4

• 2 Ω 56W x 2
• 4 Ω 29W x 2
• 4 Ω 113W x 1 (Bridged)

• Overall Dimensions: 1.7 inch (H) x 9.5 inch (L) x 5.12 inch (W)
