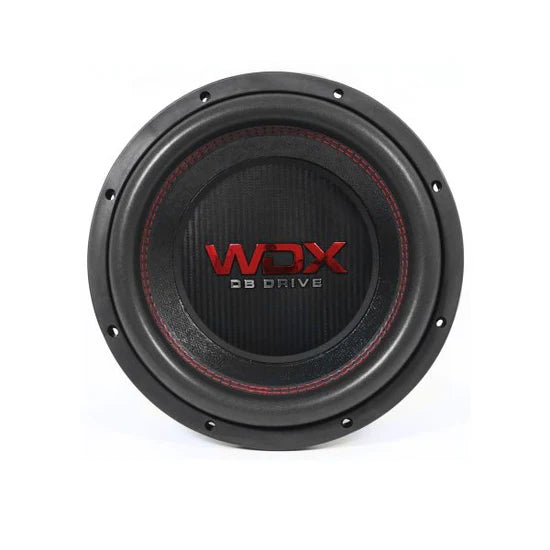

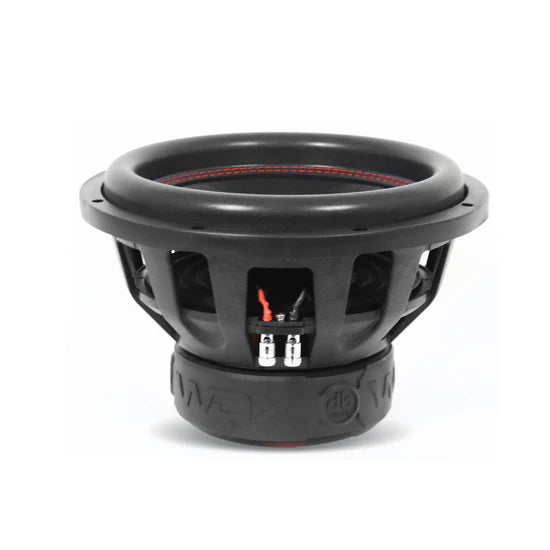

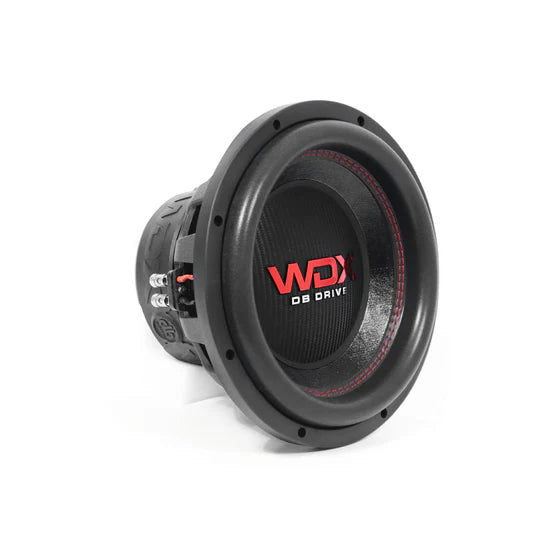

WDX10G1.4 : 10" Dual 4-Ohm Subwoofer

$329.99
$299.98 In Stock Sold out
Snap Logo Lease for as low as $/week Learn More

1-4 DAYS DELIVERY

100% ORIGINAL AND QUALITY

24 MONTHS GUARANTEE

  • Description
  • Shipping and Refund

WDX10G1.4 : 10" Dual 4-Ohm Subwoofer





Product details

Feel the beat with DB Drive's WDX10G1.4 – where power meets precision. Elevate your audio experience with the DB Drive WDX10G1.4, a 10-inch subwoofer that delivers unparalleled performance and precision. Designed for those who crave deep, powerful bass, this subwoofer is packed with features that set it apart from the competition. With a high-temperature voice coil and a non-pressed paper cone, it ensures durability and exceptional sound quality. The double-stitched foam surround and dual poly-cotton dampeners provide enhanced stability and resilience, while the die-cast aluminum vented basket and rubber gasket trim ring offer robust protection and longevity. Boasting a 135 oz. magnet and large gauge compression terminals, this subwoofer is engineered for maximum power, handling up to 2000 watts with a nominal power of 1000 watts. Whether you're a casual listener or a true audiophile, the DB Drive WDX10G1.4 is your ticket to an immersive, high-fidelity audio experience that will make every beat come alive.

Features

  • 3" BASV High-Temperature Voice coil
  • Non-pressed paper cone
  • Double stitched foam surround
  • Dual poly-cotton dampeners
  • Die-cast aluminum vented basket
  • Rubber gasket trim ring
  • Large gauge compression terminals
  • Protective magnet cover





Specifications

Structure 10" (25.4cm) Woofer
Dynamic Power Handling 2000 Watts
Nominal Power Handling 1000 Watts
Impedance Dual 4Ω Voice Coil

Parameters

Resonant Frequency (fs) 41.63Hz
D.C. Voice Coil Resistance (Re) 3.2 x 3.2Ω
Mechanical Quality Factor (Qms) 3.156
Electrical Quality Factor (Qes) 0.582
Total Quality Factor (Qts) 0.492
Equivalent Air Volume to Cms (Vas) 9.79 L
Mass of Diaphragm/Coil (Mms) 289.93 g
Force Factor (Bl) 14.437
Sound Pressure Level (SPL) 82.7 dB
