WDX10G0.4 : 10" Dual 4-Ohm Subwoofer

$299.99
$269.98 In Stock Sold out
Snap Logo Lease for as low as $/week Learn More

1-4 DAYS DELIVERY

100% ORIGINAL AND QUALITY

24 MONTHS GUARANTEE

  • Description
  • Shipping and Refund

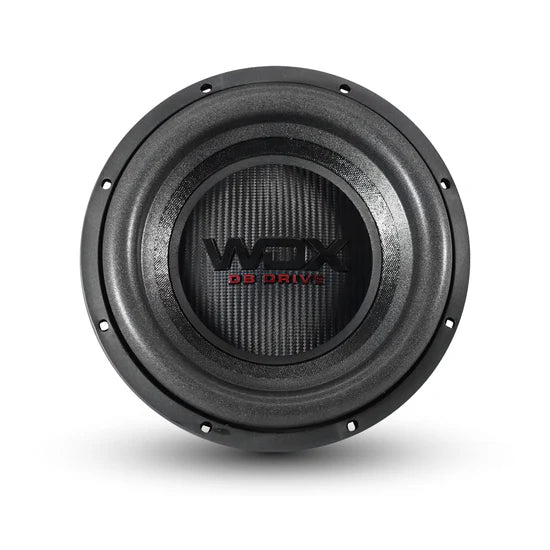

WDX10G0.4 : 10" Dual 4-Ohm Subwoofer





Product details

Feel the Thunder with DB Drive's WDX10G0.4 Subwoofer! Unleash the power of sound with the DB Drive WDX10G0.4 Subwoofer, the ultimate addition to your audio setup. Engineered with a high-temperature voice coil and reinforced paper cone, this subwoofer delivers unparalleled performance and durability. The double-stitched foam surround and dual poly-cotton dampeners ensure precise sound quality, while the stamped cast steel vented basket and rubber gasket trim ring provide robust support. With a massive 1000 watts of max power and dual 4Ω voice coils, this subwoofer is designed to handle the most intense audio demands. The large gauge compression terminals and protective magnet cover add to its superior build. Whether you're a casual listener or an audiophile, the DB Drive WDX10G0.4 Subwoofer will elevate your sound experience to new heights. Feel every beat, every note, and every moment with the power of DB Drive.

Features

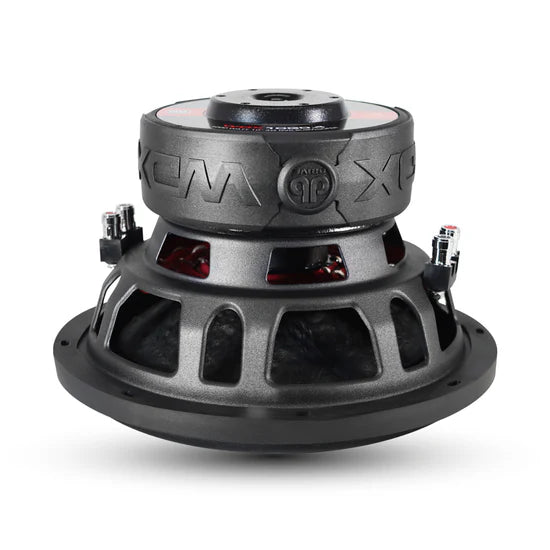

Our engineers at DB Drive have designed this subwoofer from the ground up to shake the ground up. The foam surround along with the die-cast aluminum vented basket allow for maximum excursion while the protective magnet cover gives the woofer a rugged yet stylish appearance.

  • 2.5″ High Temperature Voice coil
  • Reinforced paper cone
  • Dual poly-cotton dampeners
  • Stamped Cast basket
  • Rubber gasket trim ring
  • Large gauge compression terminals
  • Protective magnet cover





Specifications

Structure 10” (25.4cm) Woofer
Dynamic Power Handling 1000 Watts
Nominal Power Handling 500 Watts
Impedance Dual 4Ω Voice Coil
PARAMETERS
Resonant Frequency (fs) 38.074Hz
D.C. Voice Coil Resistance (Re) 3.4 x 2Ω
Mechanical Quality Factor (Qms) 2.370
Electrical Quality Factor (Qes) 0.580
Total Quality Factor (Qts) 0.466
Equivalent Air Volume to Cms (Vas) 18.768L
Mass of Diaphragm/Coil (Mms) 174.262 g
Force Factor (Bl) 11.051
Sound Pressure Level (SPL) 84.4dB
